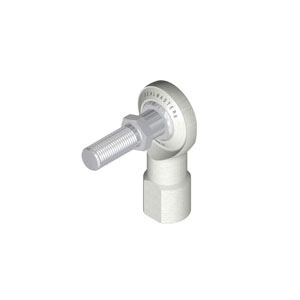

Sealmaster® 1491008000 MORCFF10Y

Sealmaster® two and three piece rod end bearing housing designs have been optimized for overall strength. This housing advantage and variety of outer race materials including brass, steel, Delrin® and PTFE liners provide a wide selection of application solutions. Sealmaster® rod end bearings can be joined together or connected with a threaded rod or tube as linkage assemblies for flexibility in motion transfer. In addition Sealmaster® rod end bearings can accommodate angular misalignment to provide ease in assembly and smooth motion transfer in a variety of applications.

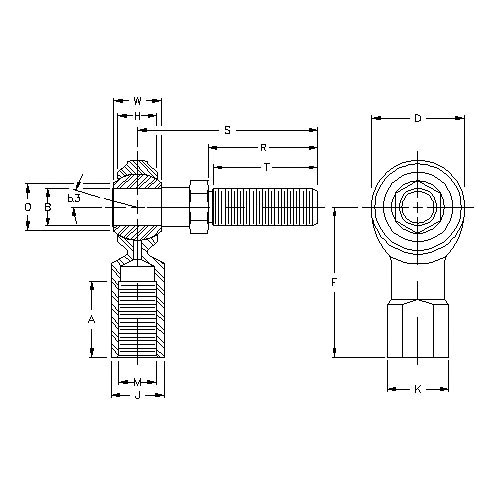

Sealmaster® Bearing Rod End, 2-Piece Commercial Grade General Purpose, Series: CFF, 5/8 in Bore, 1-1/2 in OD, 7/8 in Width, Female UNF Thread, 5/8-18 Dia x 1.344 in L Thread, 2-1/2 in Center Line Length, 10000 lb Static Load, 350 deg F, Carbon Steel

• Item Features 01=Machined carbon steel housings with protective coating for corrosion resistance
• Item Features 02=Alloy steel heat treated and chrome plated ball for wear resistance properties
• Item Features 03=Wrench flat on female rod ends facilitates assembly
• Item Features 04=2-piece construction has a greater housing cross section and increased load capacity than three piece rod ends with like housing materials
• Item Features 05=Provides a lower cost alternative to the precision grade three piece rod ends with like housing material
• Item Features 06=Right hand internal thread
• Item Features 07=Carbon steel corrosion resistant plating Y-stud

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_1410308000_Catalog.pdf
