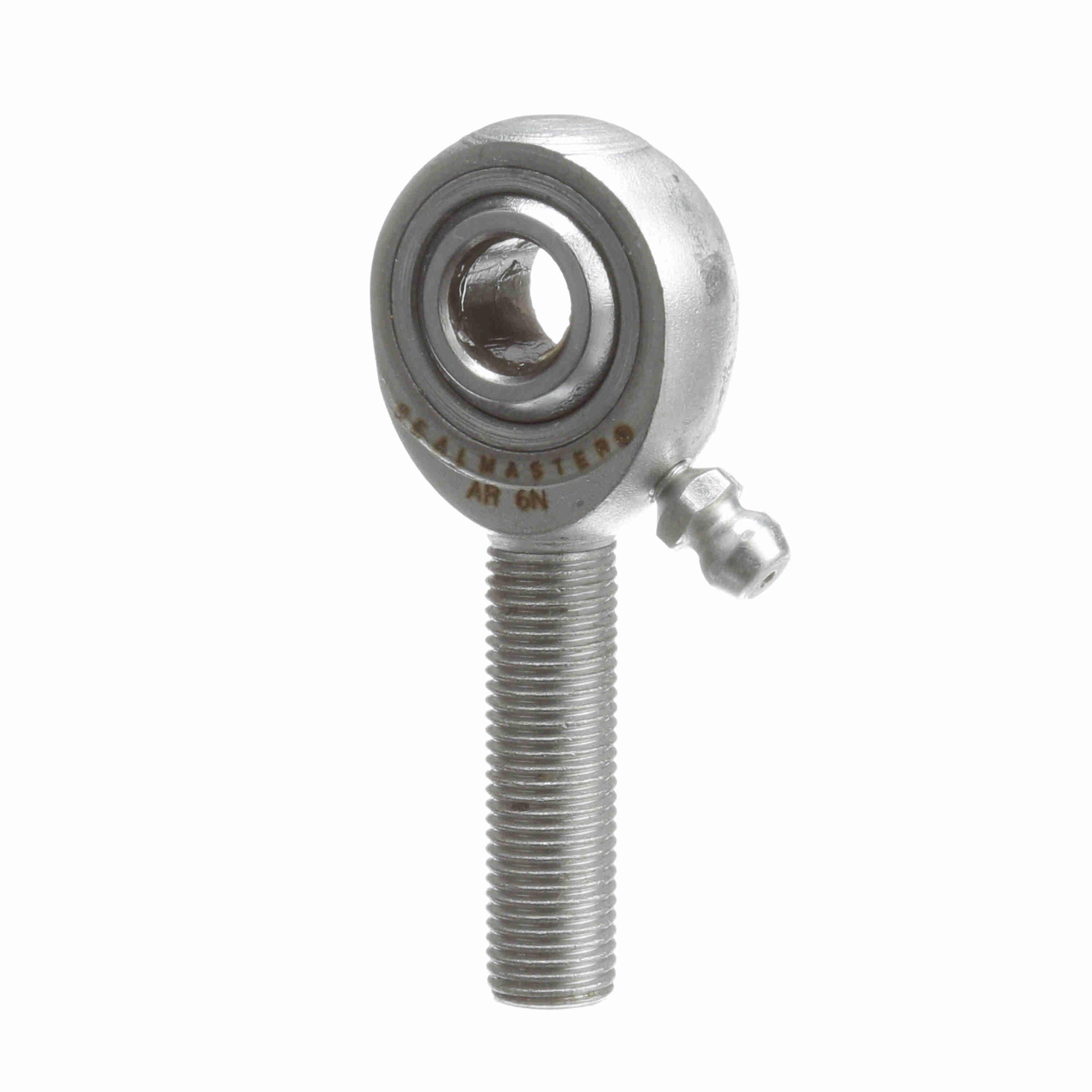

Sealmaster® 1450601000 MORAR6N

Sealmaster® two and three piece rod end bearing housing designs have been optimized for overall strength. This housing advantage and variety of outer race materials including brass, steel, Delrin® and PTFE liners provide a wide selection of application solutions. Sealmaster® rod end bearings can be joined together or connected with a threaded rod or tube as linkage assemblies for flexibility in motion transfer. In addition Sealmaster® rod end bearings can accommodate angular misalignment to provide ease in assembly and smooth motion transfer in a variety of applications.

Sealmaster® Bearing Rod End, 3-Piece Precision Grade Extra Capacity, Series: AR-N, 3/8 in Bore, 1 in OD, 0.562 in Width, Female UNF Thread, 3/8-24 Dia x 0.906 in L Thread, 1-5/8 in Center Line Length, 9570 lb Static Load, 350 deg F, Alloy Steel

• 3-piece design rod ends with heat treated alloy steel housing for high static and radial loads
• The construction also helps reduce pound-out in applications with high frequency oscillation, vibration or shock loading
• 1-piece carbon steel outer race with protective coating for corrosion resistance
• Alloy steel heat treated and chrome plated ball for wear resistance properties
• Right hand internal thread

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_1450300000_Catalog.pdf
