Sealmaster® 1431209000 MORTF12YN

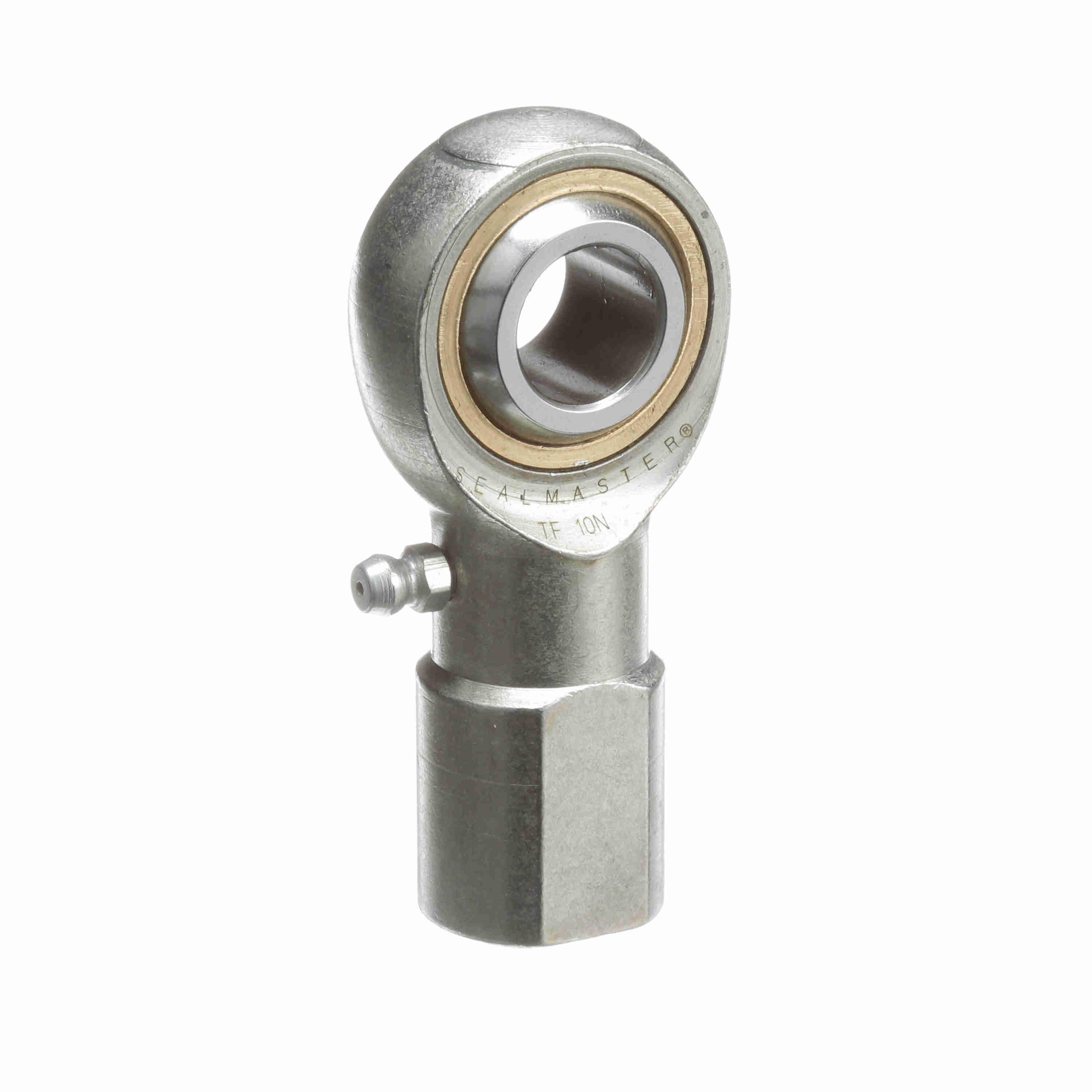

Sealmaster® 1431209000 3-Piece Commercial Grade General Purpose Bearing Rod End With Y-Stud and Zerk Grease Fitting, 3/4 in Dia Bore, 1-3/4 in OD, 1 in W, 11300 lb Static Load, Carbon Steel
- Manufacturer: Regal Rexnord
- Brand Name: Sealmaster®
- Part Number: MORTF12YN
- MPN: 1431209000
- UPC: 662288724445
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Sealmaster® two and three piece rod end bearing housing designs have been optimized for overall strength. This housing advantage and variety of outer race materials including brass, steel, Delrin® and PTFE liners provide a wide selection of application solutions. Sealmaster® rod end bearings can be joined together or connected with a threaded rod or tube as linkage assemblies for flexibility in motion transfer. In addition Sealmaster® rod end bearings can accommodate angular misalignment to provide ease in assembly and smooth motion transfer in a variety of applications.
Sealmaster® Bearing Rod End, 3-Piece Commercial Grade General Purpose, Series: TF-N, 3/4 in Bore, 1-3/4 in OD, 1 in Width, Female UNF Thread, 3/4-16 Dia x 1.719 in L Thread, 2-7/8 in Center Line Length, 11300 lb Static Load, 350 deg F, Carbon Steel
| Bore Diameter | : | 3/4 in |
| Center Line Length | : | 2-7/8 in |
| Load Capacity | : | 11300 lb Static |
| Material | : | Carbon Steel |
| Outside Diameter | : | 1-3/4 in |
| Series | : | TF-N |
| Temperature Rating | : | 350 deg F |
| Thread Size | : | 3/4-16 Dia x 1.719 in L |
| Thread Type | : | Female UNF |
| Type | : | 3-Piece Commercial Grade General Purpose |
| Width | : | 1 in |
- Machined carbon steel housings with protective coating for corrosion resistance
- Alloy steel heat treated and chrome plated ball for wear resistance properties
- Wrench flat on female rod ends facilitates assembly
- Designed with 1-piece bronze race for lower coefficient of friction
- Right hand internal thread
- Carbon steel corrosion resistant plating Y-stud
