Sealmaster® 1411601000 MORTR16N
  1. pin-int

Sealmaster® 1411601000 MORTR16N

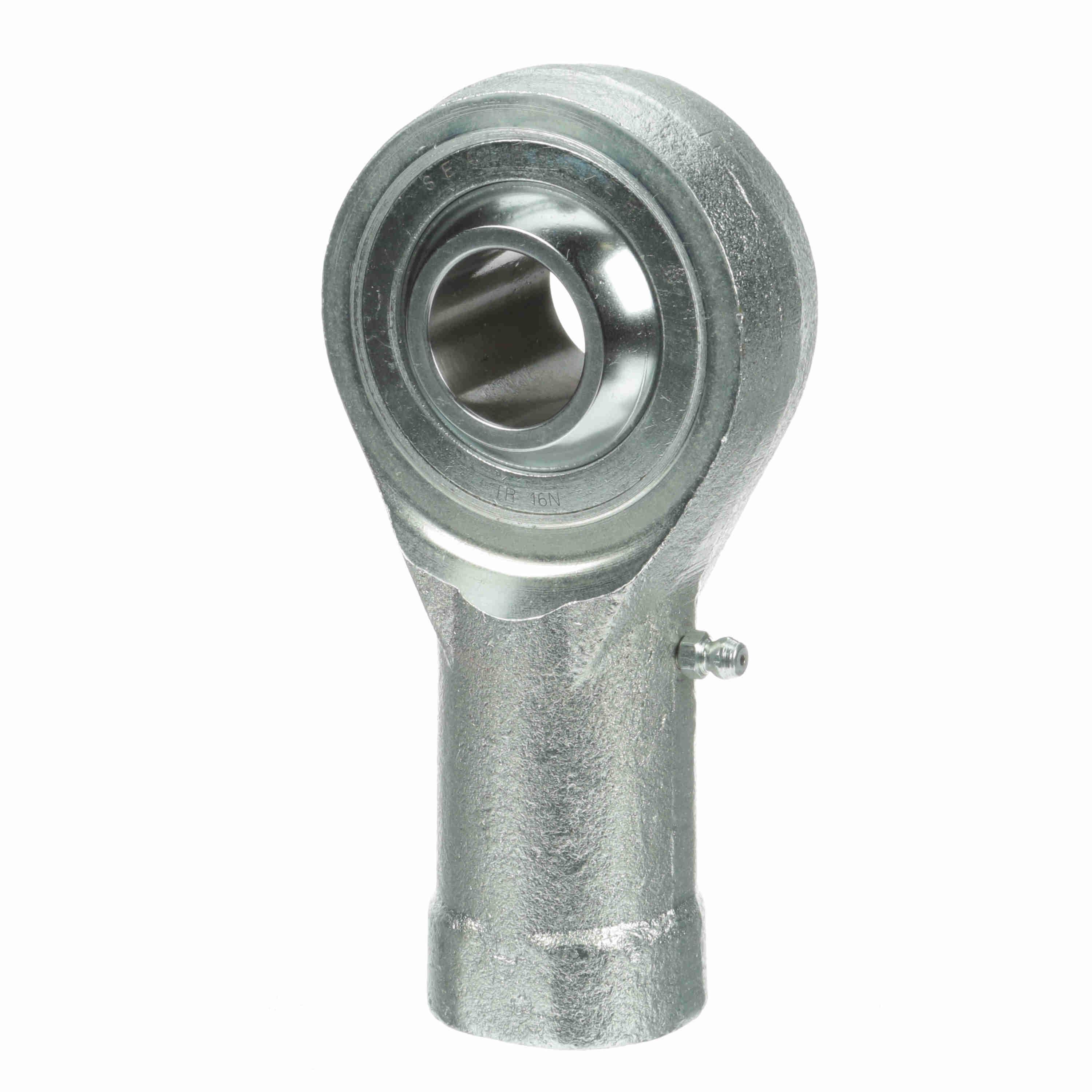

Sealmaster® 1411601000 TR Series 3-Piece General Purpose Precision Rod End Bearing With Zerk Fitting, 1 in Dia Bore, 2-3/4 in OD, 21000 lb Load, Carbon Steel

  • Manufacturer: Regal Rexnord
  • Brand Name: Sealmaster®
  • Part Number: MORTR16N
  • MPN: 1411601000
  • UPC: 662288719915
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Sealmaster® two and three piece rod end bearing housing designs have been optimized for overall strength. This housing advantage and variety of outer race materials including brass, steel, DELRIN and PTFE liners provide a wide selection of application solutions. Sealmaster® rod end bearings can be joined together or connected with a threaded rod or tube as linkage assemblies for flexibility in motion transfer. In addition Sealmaster® rod end bearings can accommodate angular misalignment to provide ease in assembly and smooth motion transfer in a variety of applications.

Sealmaster® Rod End Bearing, 3-Piece General Purpose Precision, Series: TR Series, 1 in Bore Dia, 2-3/4 in Outside Dia, 1-3/8 in Width, Female UNF, 1-1/4-12 x 2.094 in, 1.688 in L x 1.5 in W Rod End Size, 4-1/8 in Center Line Length, 21000 lb, Carbon Steel

Bore Diameter      :      1 in
Center Line Length      :      4-1/8 in
Load Capacity      :      21000 lb
Material      :      Carbon Steel
Outside Diameter      :      2-3/4 in
Rod End Size      :      1.688 in L x 1.5 in W
Series      :      TR Series
Thread Size      :      1-1/4-12 x 2.094 in
Thread Type      :      Female UNF
Type      :      3-Piece General Purpose Precision
Width      :      1-3/8 in
  • Incorporate a 1-piece race formed around a hardened steel chrome plated ball in a controlled manufacturing process
  • Flexibility for alternative race materials designed to help solve specific application problems
  • Higher average tensile strength and fatigue life, competition
  • Wrench flat on female rod ends facilitates assembly
  • Full catalog thread depth for maximum thread engagement
  • Reduces pound-out in applications with high frequency oscillation, vibration or shock loading
  • Improved spherical ball-race conformity for even load distribution
  • Precision ball-race fit
  • Manufactured in steel, aluminum bronze and self lubricating Delrin®
  • Alloy steel heat treated and chrome plated for corrosion resistance
  • Better wear resistance properties than carbon steel tin nickel plated balls
  • Grease lubrication
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_1410300000_Specification_Sheet.pdf
