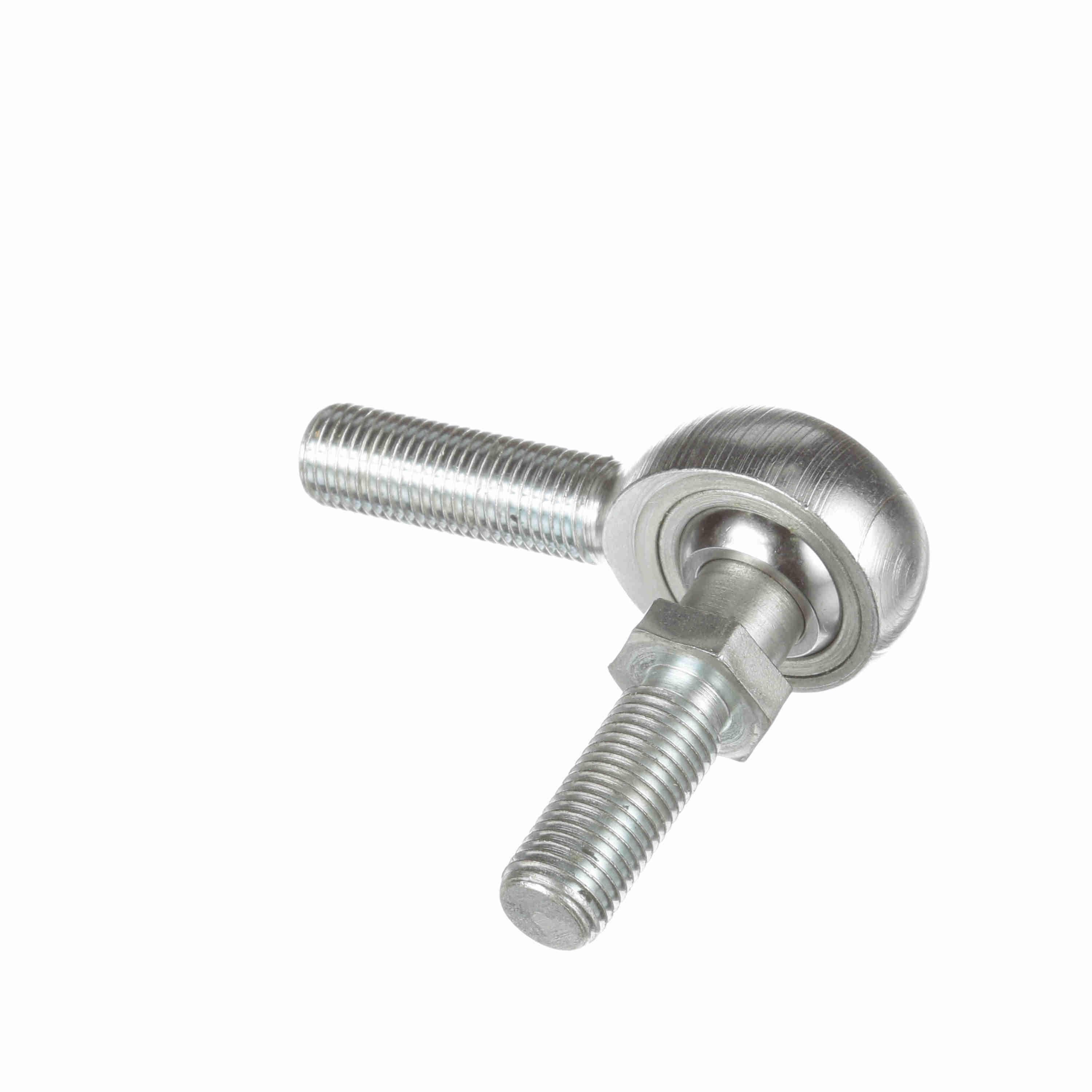

Sealmaster® 1401008000 MORTRE10Y
Sealmaster® 1401008000 3-Piece Precision Grade General Purpose Bearing Rod End With Y-Stud, 5/8 in Dia Bore, 1-1/2 in OD, 3/4 in W, 8050 lb Static Load, Carbon Steel
- Manufacturer: Regal Rexnord
- Brand Name: Sealmaster®
- Part Number: MORTRE10Y
- Alt Part Number: TRE 10Y
- MPN: 1401008000
- UPC: 662288720522
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Sealmaster® two and three piece rod end bearing housing designs have been optimized for overall strength. This housing advantage and variety of outer race materials including brass, steel, Delrin® and PTFE liners provide a wide selection of application solutions. Sealmaster® rod end bearings can be joined together or connected with a threaded rod or tube as linkage assemblies for flexibility in motion transfer. In addition Sealmaster® rod end bearings can accommodate angular misalignment to provide ease in assembly and smooth motion transfer in a variety of applications.
Sealmaster® Bearing Rod End, 3-Piece Precision Grade General Purpose, Series: TRE, 5/8 in Bore, 1-1/2 in OD, 3/4 in Width, Male UNF Thread, 5/8-18 Dia x 1.594 in L Thread, 2-5/8 in Center Line Length, 8050 lb Static Load, 350 deg F, Carbon Steel
| Bore Diameter | : | 5/8 in |
| Center Line Length | : | 2-5/8 in |
| Load Capacity | : | 8050 lb Static |
| Material | : | Carbon Steel |
| Outside Diameter | : | 1-1/2 in |
| Series | : | TRE |
| Temperature Rating | : | 350 deg F |
| Thread Size | : | 5/8-18 Dia x 1.594 in L |
| Thread Type | : | Male UNF |
| Type | : | 3-Piece Precision Grade General Purpose |
| Width | : | 3/4 in |
- Machined steel housing
- Higher average tensile strength, fatigue life and competition
- Less wear than rod ends with 2-piece race designs
- Alloy steel heat treated and chrome plated ball for corrosion resistance
- Better wear resistance properties than carbon steel tin nickel plated balls
- Right hand external thread
- Carbon steel corrosion resistant plating Y-stud
