Rotor Clip® BE-043 IRR1001-043

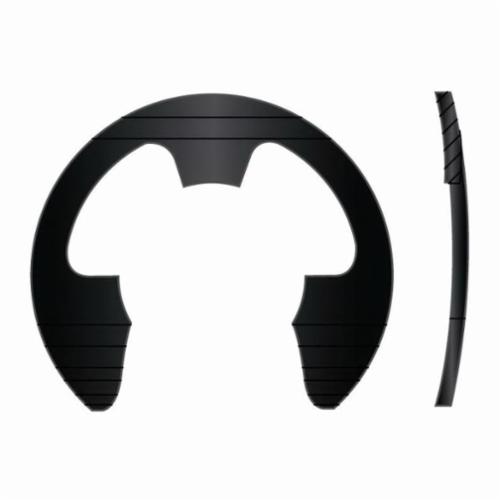

Rotor Clip® BE-043 Bowed External Stamped E-Clip, 7/16 in Dia Shaft, Carbon Spring Steel, Phosphate, 0.343 in Dia Groove

  • Manufacturer: Rotor Clip
  • Brand Name: Rotor Clip®
  • Part Number: IRR1001-043
  • MPN: BE-043
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Rotor Clip® E-Clip, Bowed External Stamped, Measurement System: Imperial, 7/16 in Shaft Diameter, Carbon Spring Steel, Phosphate, 0.343 in Diameter Groove

Finish      :      Phosphate
Groove Diameter      :      0.343 in
Material      :      Carbon Spring Steel
Measurement System      :      Imperial
Outside Diameter      :      0.687 in
Shaft Diameter      :      0.438 in
Thickness      :      0.035 in
Type      :      Bowed External Stamped
