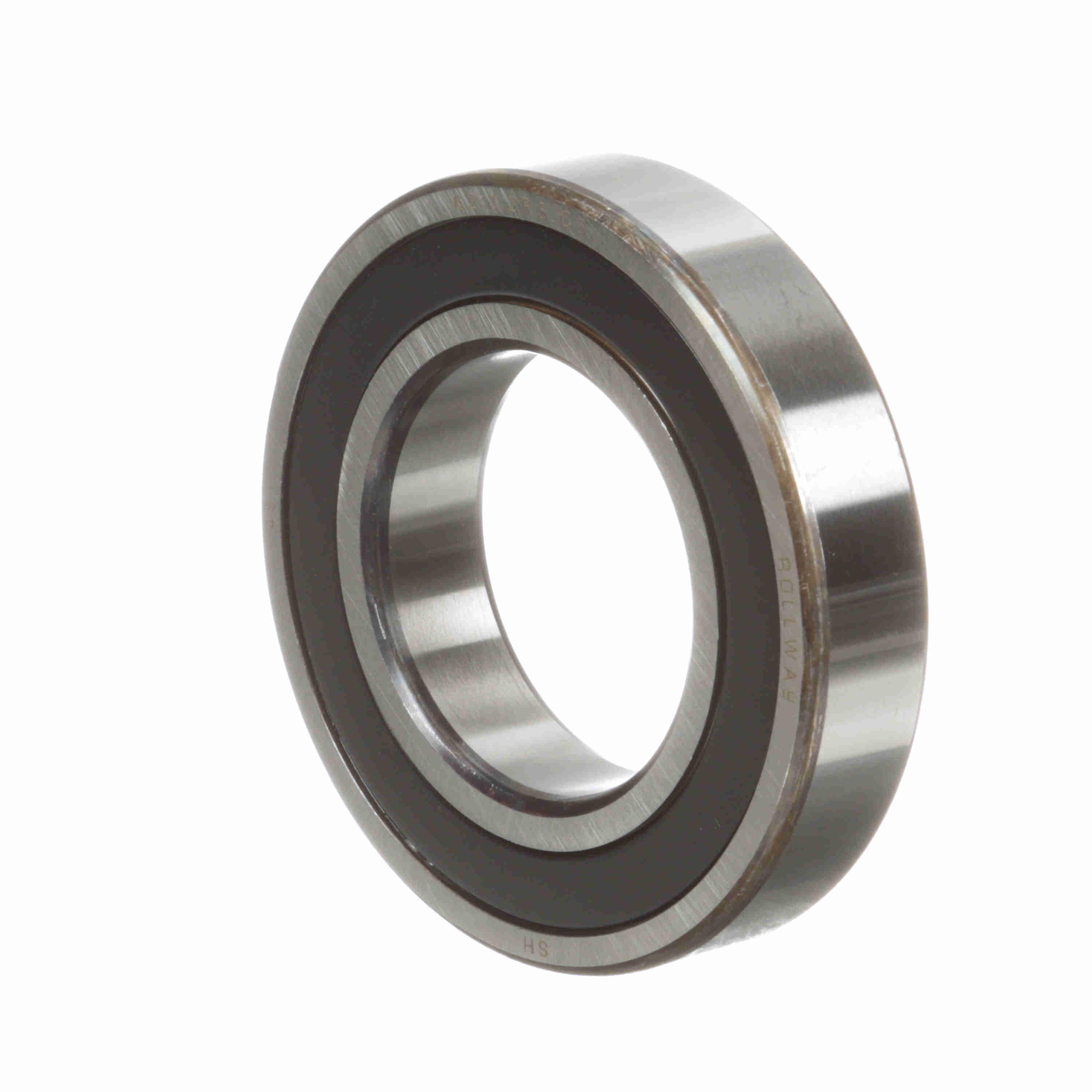

Rollway® 6211 2RS C3 ROL6211-2RS

The single row deep groove ball bearing is the most popular type of rolling bearing. Because the inner and outer raceway radii are only slightly larger than the ball diameter, it has considerable axial load carrying capacity in either direction, as well as radial loading. They are suitable for high speeds and can be supplied with shields or seals. The shielded type have a running clearance between the inner-race and the metal shield, whereas the seals (made from synthetic rubber), make contact with the inner race. Both shielded and sealed bearings are supplied with the correct amount of lithium base grease.

Rollway® Deep Groove Ball Bearing, Round/Straight Bore Unmounted, Series: 6200, 55 mm Bore, 100 mm OD, 1 Rows, 21 mm Width, Double Seal Closure, 43.4 kN Dynamic/29.3 kN Static Load, 52100 Steel Bearing, Synthetic Rubber Seal, Pressed Steel Cage, 4000 rpm Grease Maximum, -30 to 120 deg C

• Item Features 01=C3 clearance
• Item Features 02=Cylindrical outside ring shape
• Item Features 03=High radial and axial load carrying capacity and can operate at very high speed
• Item Features 04=Non-separable, comparatively rigid radial bearings

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Rollway_1200_Catalog.pdf
