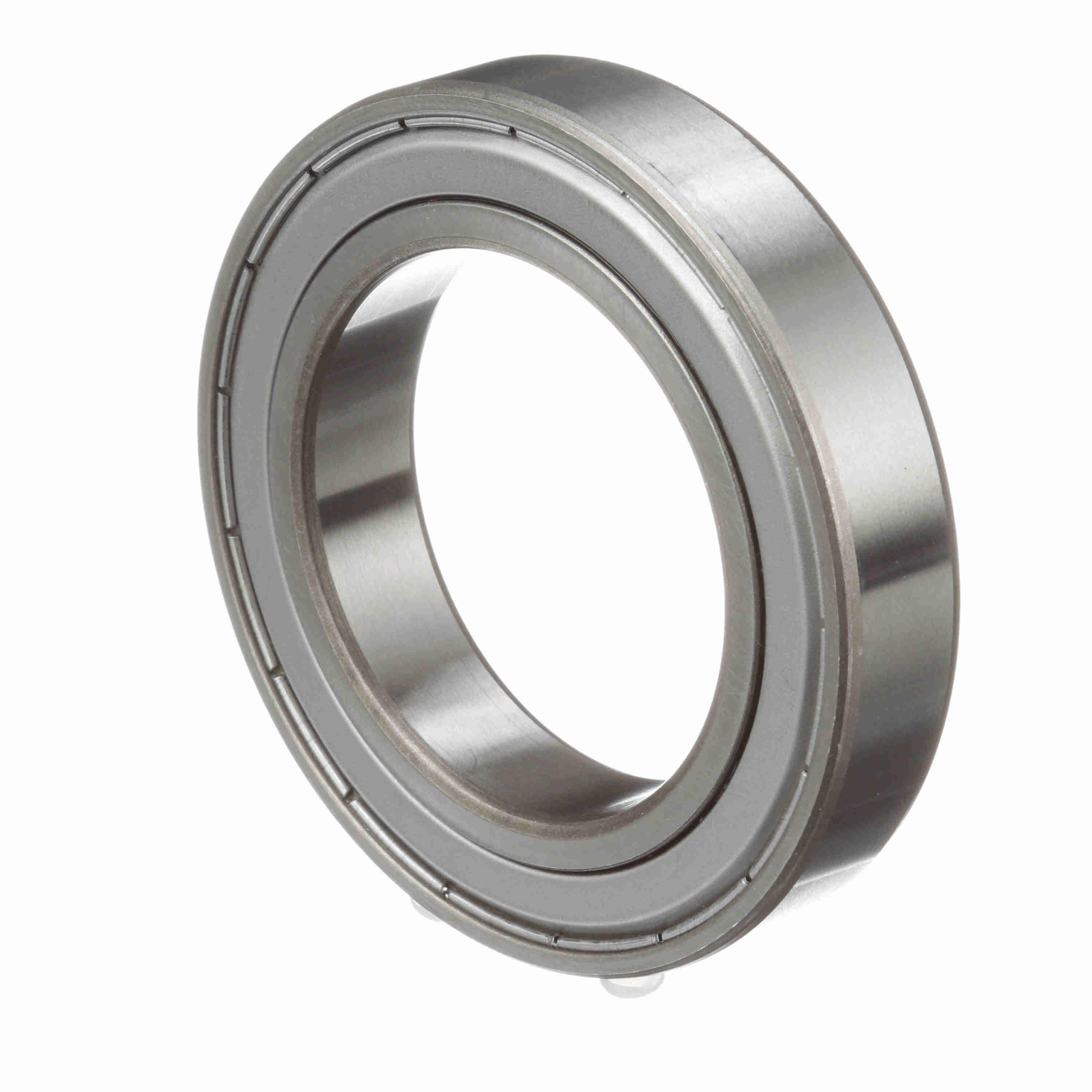

Rollway® 6012 ZZ C3 ROL6012ZZ

Rollway® 6012 ZZ C3 6000 Deep Groove Ball Bearing, 60 mm Dia Bore, 95 mm OD, 1 Rows, 18 mm W, 29.4 kN Dynamic/23.2 kN Static Load

  • Manufacturer: Regal Rexnord
  • Brand Name: Rollway®
  • Part Number: ROL6012ZZ
  • MPN: 6012 ZZ C3
  • UPC: 637410066564
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Sign In for Pricing and Availability

The single row deep groove ball bearing is the most popular type of rolling bearing. Because the inner and outer raceway radii are only slightly larger than the ball diameter, it has considerable axial load carrying capacity in either direction, as well as radial loading. They are suitable for high speeds and can be supplied with shields or seals. The shielded type have a running clearance between the inner-race and the metal shield, whereas the seals (made from synthetic rubber), make contact with the inner race. Both shielded and sealed bearings are supplied with the correct amount of lithium base grease.

Rollway® Deep Groove Ball Bearing, Series: 6000, 60 mm Bore, 95 mm OD, 1 Rows, 18 mm Width, Double Shield Closure, 29.4 kN Dynamic/23.2 kN Static Load, Metal Seal, Pressed Steel Cage, 6700 rpm Grease Maximum, -30 to 120 deg C

Bore Diameter      :      60 mm
Cage Material      :      Pressed Steel
Closure Type      :      Double Shield
Load Capacity      :      29.4 kN Dynamic/23.2 kN Static
Maximum Speed      :      6700 rpm Grease
Number of Rows      :      1
Outside Diameter      :      95 mm
Seal Material      :      Metal
Series      :      6000
Temperature Rating      :      -30 to 120 deg C
Width      :      18 mm
  • Item Features 01=High radial and axial load carrying capacity and can operate at very high speed
  • Item Features 02=Non-separable, comparatively rigid radial bearings
