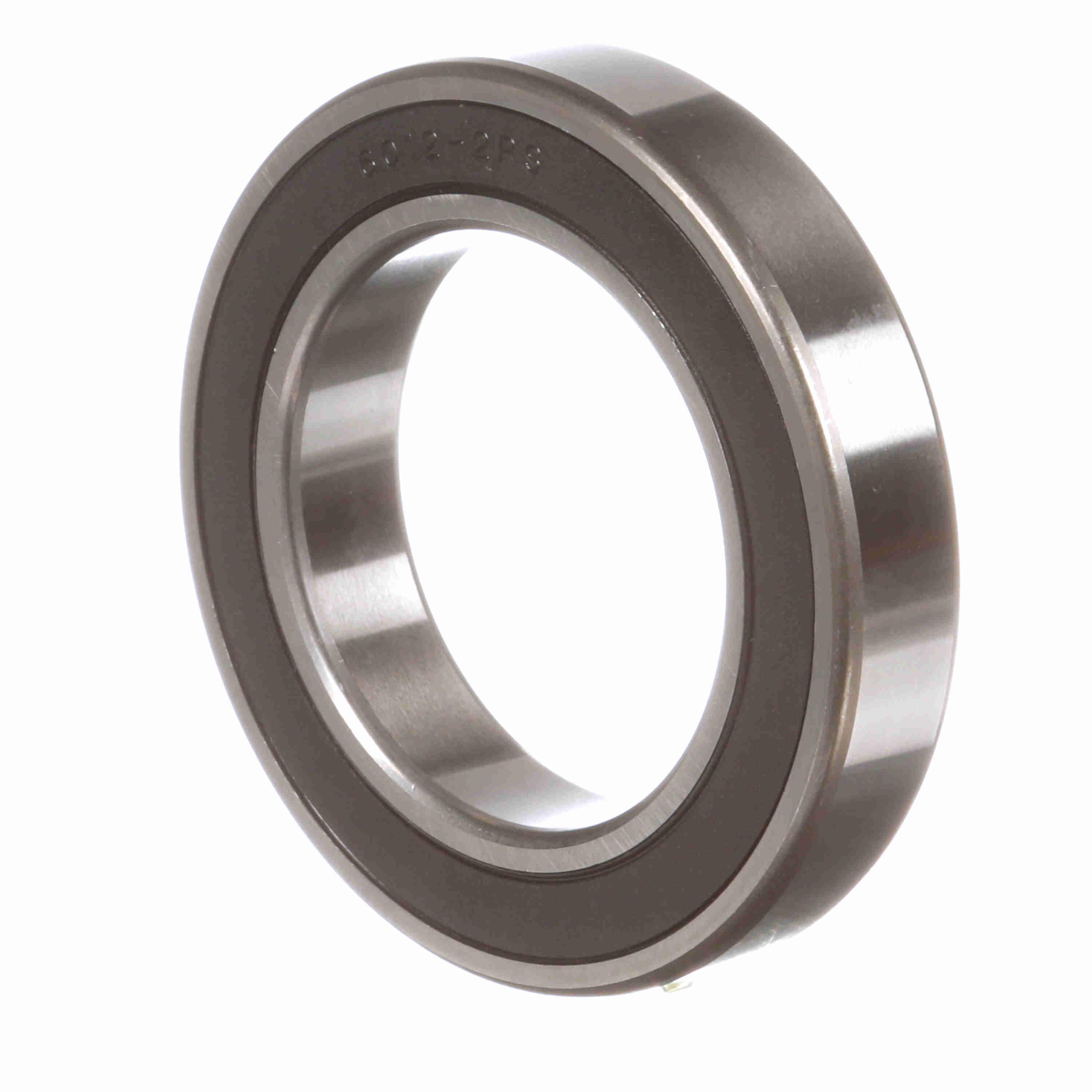

Rollway® 6012 2RS C3 ROL6012-2RS

The single row deep groove ball bearing is the most popular type of rolling bearing. Because the inner and outer raceway radii are only slightly larger than the ball diameter, it has considerable axial load carrying capacity in either direction, as well as radial loading. They are suitable for high speeds and can be supplied with shields or seals. The shielded type have a running clearance between the inner-race and the metal shield, whereas the seals (made from synthetic rubber), make contact with the inner race. Both shielded and sealed bearings are supplied with the correct amount of lithium base grease.

Rollway® Deep Groove Ball Bearing, Round/Straight Bore Unmounted, Series: 6000, 60 mm Bore, 95 mm OD, 1 Rows, 18 mm Width, Double Seal Closure, 29.4 kN Dynamic/23.2 kN Static Load, 52100 Steel Bearing, Synthetic Rubber Seal, Pressed Steel Cage, 4300 rpm Grease Maximum, -30 to 120 deg C

• C3 clearance
• Cylindrical outside ring shape
• High radial and axial load carrying capacity and can operate at very high speed
• Non-separable, comparatively rigid radial bearings

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Rollway_1200_Catalog.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Rollway_6012_Specification_Sheet.pdf
