Rexnord® 10479879 REXFC315T

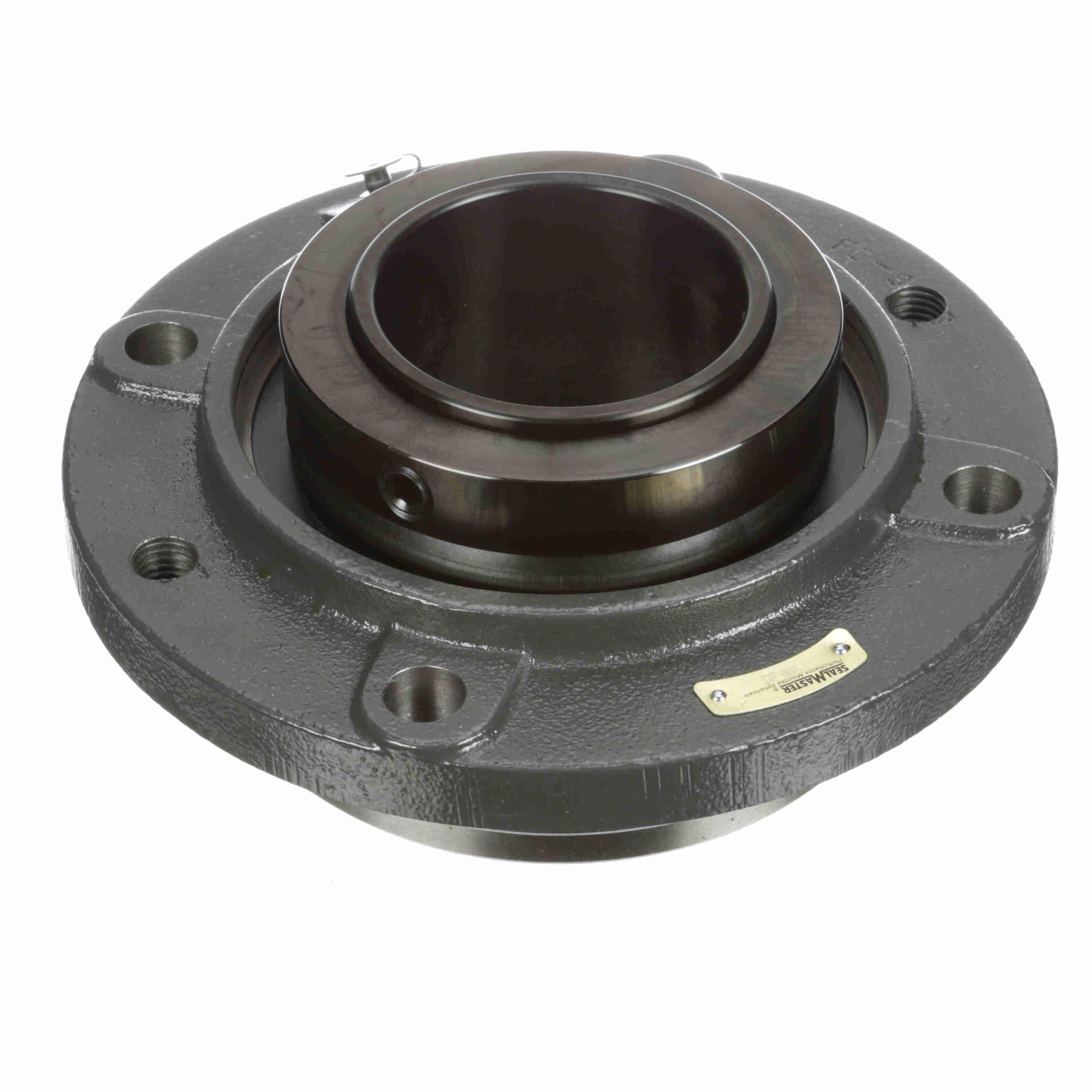

Rexnord® 10479879 FC Series Fixed Flanged Cartridge Block Spherical Roller Bearing, 3-15/16 in Dia Bore, 6.63 in L Bolt Center-to-Center, 4.69 in Dia Bolt Circle, 4-Bolt Round Flange Mount, 10.88 in OAL/Dia
- Manufacturer: Regal Rexnord
- Brand Name: Rexnord®
- Part Number: REXFC315T
- Alt Part Number: FC315T
- MPN: 10479879
- UPC: 782934929557
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Rexnord® Flanged Cartridge Block Spherical Roller Bearing, Fixed, Series: FC Series, 3-15/16 in Bore, 6.63 in Bolt Center-to-Center Length, 4.69 in Diameter Bolt Circle, 4-Bolt Round Flange Mounting, 10.88 in Overall Length/Diameter, 4.64 in Overall Depth, Single Set Screw Collar Locking Device, Cast Iron Bearing, 80000 lb Dynamic/98600 lb Static Load, 1520 rpm Maximum, -40 to 250 deg F, Powder Coated
| Bearing Material | : | Cast Iron |
| Bolt Center-to-Center Length | : | 6.63 in |
| Bolt Circle Diameter | : | 4.69 in |
| Bore Diameter | : | 3-15/16 in |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Round |
| Load Capacity | : | 80000 lb Dynamic/98600 lb Static |
| Locking Device | : | Single Set Screw Collar |
| Maximum Speed | : | 1520 rpm |
| Overall Depth | : | 4.64 in |
| Overall Length/Diameter | : | 10.88 in |
| Series | : | FC Series |
| Temperature Rating | : | -40 to 250 deg F |
| Type | : | Fixed |
- Spherical roller bearing allows for +/- 2 deg of misalignment to accommodate variations between shaft and support structure as well as shaft deflection during operation
- Double contoured retainer pockets
- Factory set clearance and lubrication
- Extended inner ring, separable outer rings
- Triple lip seal
- Exxon Ronex™ MP grease
