Rexnord® 10479630 REXP2B107C

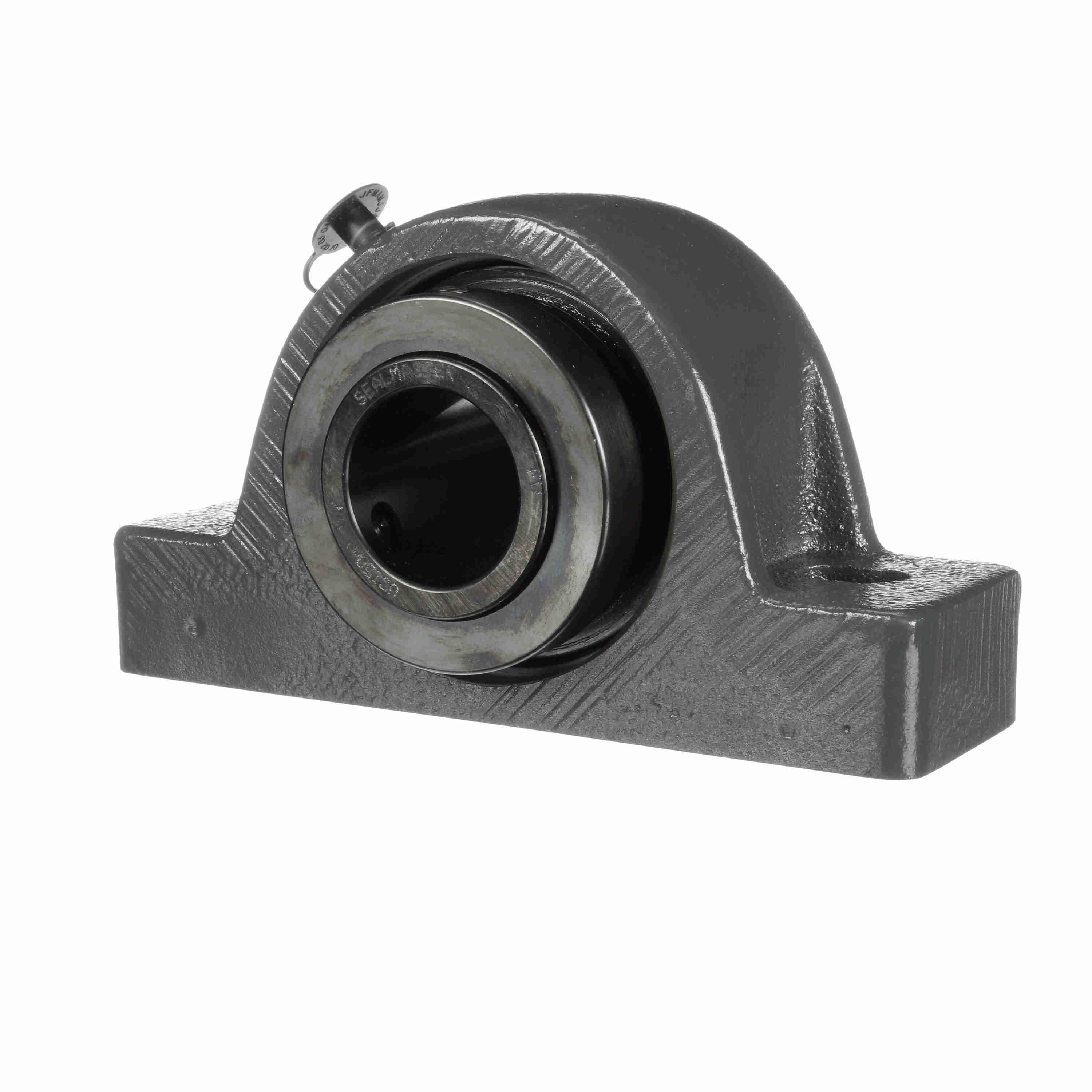

Rexnord® 10479630 PT Series Pillow Block Spherical Roller Bearing Unit, 1-7/16 in Dia Bore, 4.81 to 5.2 in L Bolt Center-to-Center, 1.88 in Base to Bore Centerline, 6.62 in OAL x 3.85 in OAH

  • Manufacturer: Regal Rexnord
  • Brand Name: Rexnord®
  • Part Number: REXP2B107C
  • MPN: 10479630
  • UPC: 782934932021
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Sign In for Pricing and Availability

With Rexnord® Industrial Internet of Things (IIoT) Smart PT Select Mounted Spherical Roller Bearings, we offer technology tools that make it easier than ever for you to select and order bearings. Building on 100 years of expertise, every IIoT Smart PT Select Mounted Spherical Roller Bearing has been designed and tested to provide trusted product reliability and performance. Backed by a team of experienced engineers, you'll benefit from our off-the-shelf solutions for your quick turnaround needs and new online resources through Rexnord IIoT Smart Products to make your experience with us even smoother.

Rexnord® Pillow Block Spherical Roller Bearing Unit, Series: PT Series, 1-7/16 in Bore, 4.81 to 5.2 in Bolt Center-to-Center Length, 1.88 in Base to Bore Centerline, 6.62 in Overall Length, 2.71 in Overall Width, 3.85 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2.71 in Base Width, Set Screw Mounting Collar Locking Device, Clearance Seal, Non-Expansion (Fixed) Expansion, 20000 lb Dynamic/21360 lb Static Load, -40 to 225 deg F, 4040 rpm Maximum, Cast Iron, Powder Coated

Base Width      :      2.71 in
Base to Bore Centerline      :      1.88 in
Bolt Center-to-Center Length      :      4.81 to 5.2 in
Bore Diameter      :      1-7/16 in
Bore Type      :      Round
Expansion Type      :      Non-Expansion (Fixed)
Finish      :      Powder Coated
Load Capacity      :      20000 lb Dynamic/21360 lb Static
Locking Device      :      Set Screw Mounting Collar
Material      :      Cast Iron
Maximum Speed      :      4040 rpm
Mounting Type      :      Two-Bolt Base
Overall Height      :      3.85 in
Overall Length      :      6.62 in
Overall Width      :      2.71 in
Seal Type      :      Clearance
Series      :      PT Series
Temperature Rating      :      -40 to 225 deg F
  • State-of-the-art design allows increased strength while optimizing material
  • Industry-standard dimensions for interchangeability with leading brands
  • Standard off-the-shelf sizes for quick turnarounds needs
  • Field installable/removable safety caps that are compatible with standard housings
  • Rugged metal retainer for increased strength and durability
  • Shaft ready and pre-lubricated with our standard grease for normal operation
  • Total misalignment capability up to 2 deg
  • 90 deg mounting collar for superior holding strength
  • 90 deg grease fitting standard and straight fitting provided in box
  • Exxon Ronex™ MP grease
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Rexnord_B1076D_Catalog.pdf
