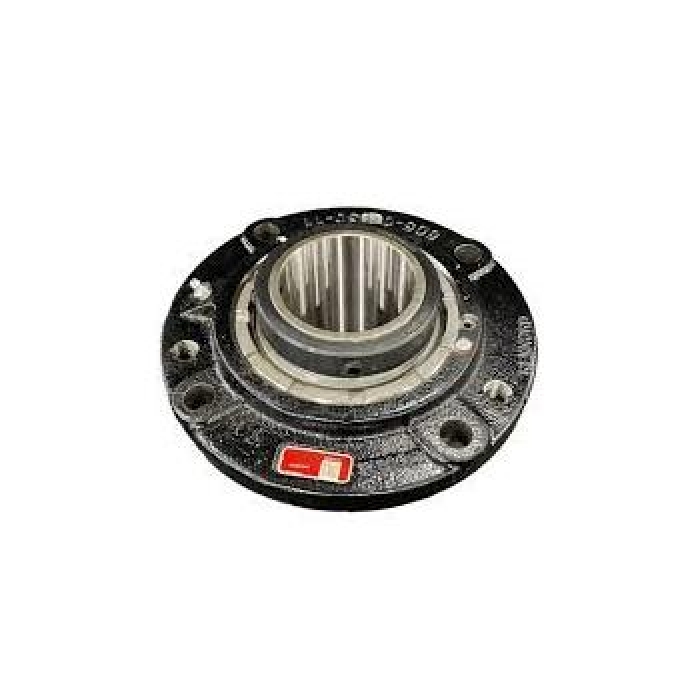

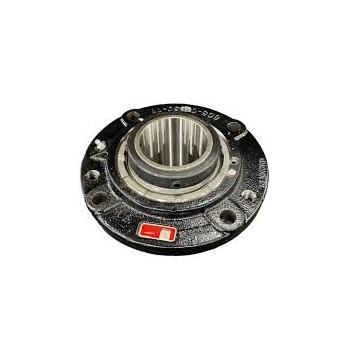

Rexnord® 10441242 ZBR5000 Flanged Spherical Roller Bearing Cartridge Unit, 7 in Dia Bore, 8-1/2 in L Bolt Center-to-Center, 8-1/2 in Dia Bolt Circle, 4-Bolt Base Flange Mount, 19 in OAL/Dia

  • Manufacturer: Regal Rexnord
  • Brand Name: Rexnord®
  • Part Number: REXMBR570040
  • Alt Part Number: MBR570040
  • MPN: 10441242
  • UPC: 662864251563
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Rexnord® Flanged Spherical Roller Bearing Cartridge Unit, Series: ZBR5000, 7 in Bore Dia, 8-1/2 in Bolt Center-to-Center Length, 8-1/2 in Bolt Circle, 4-Bolt Base Flange Mounting Type, 19 in Overall Length/Diameter, 8-3/4 in Overall Depth, Double Locking Collar Locking Device, 309860 lb Dynamic/395500 lb Static, 700 rpm Maximum, -40 to 275 deg F, Powder Coated

Bolt Center-to-Center Length      :      8-1/2 in
Bolt Circle Diameter      :      8-1/2 in
Bore Diameter      :      7 in
Finish      :      Powder Coated
Flange Mounting Type      :      4-Bolt Base
Load Capacity      :      309860 lb Dynamic/395500 lb Static
Locking Device      :      Double Locking Collar
Maximum Speed      :      700 rpm
Overall Depth      :      8-3/4 in
Overall Length/Diameter      :      19 in
Series      :      ZBR5000
Temperature Rating      :      -40 to 275 deg F
  • Corrosion-resistant powder coating
  • Cast iron housing
  • Misalignment capabilities - total of 4 deg
  • Factory set clearance and lubrication
  • Precision ground and superfinished raceways
  • Two hardened spring locking collars
  • Field interchangeable seals
