Rexnord® 10407011 REXZMC5111
  1. pin-int

Rexnord® 10407011 REXZMC5111

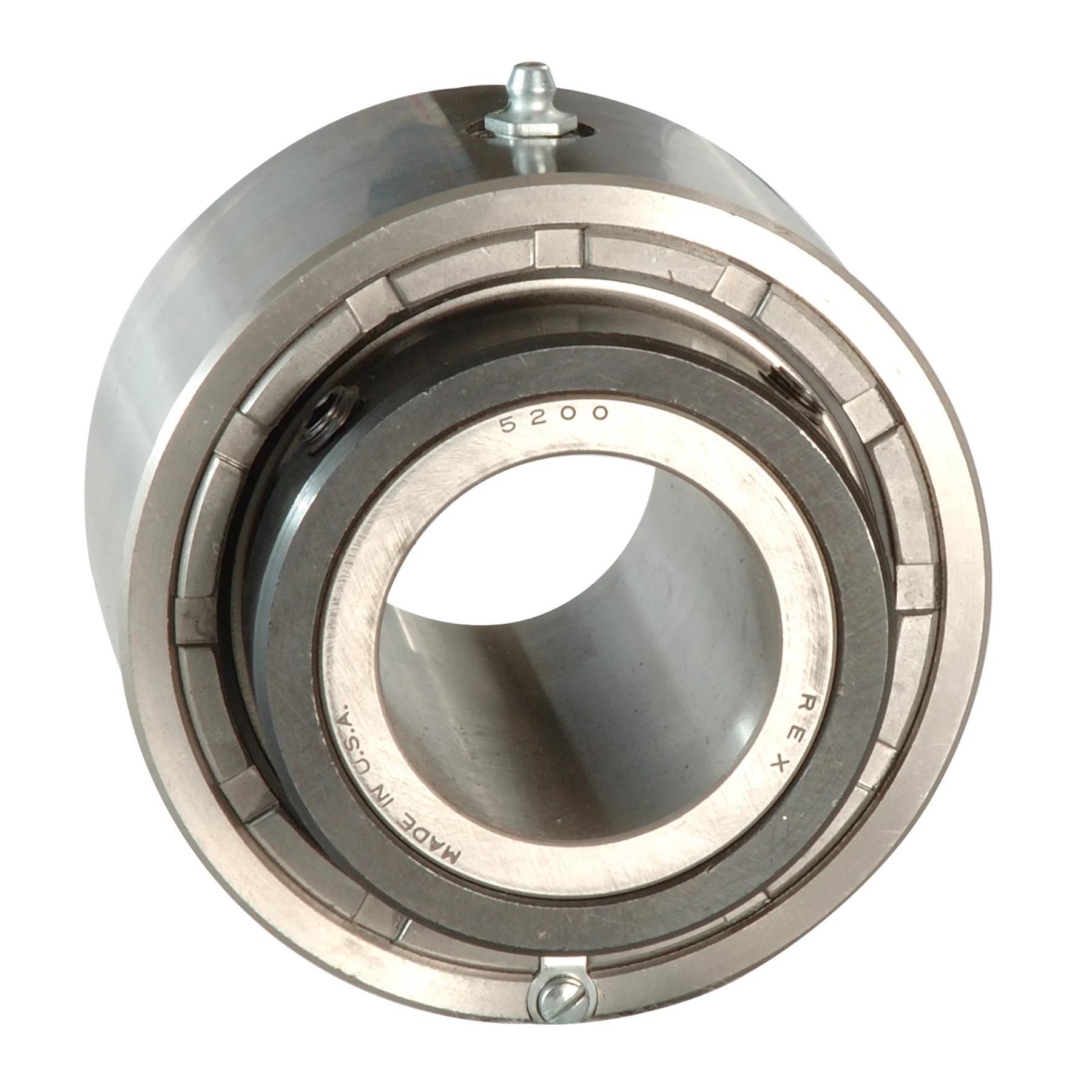

Rexnord® 10407011 5000 Mounted Spherical Roller Bearing Cartridge Block, 1-11/16 in Dia Bore, 3.937 in OD, 3-13/16 in W, 27820 lb Dynamic/28700 lb Static Load

  • Manufacturer: Regal Rexnord
  • Brand Name: Rexnord®
  • Part Number: REXZMC5111
  • Alt Part Number: ZMC5111
  • MPN: 10407011
  • UPC: 698210684860
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Rexnord® Spherical Roller Bearing Cartridge Block, Mounted, Series: 5000, 1-11/16 in Bore Dia, 3.937 in Outside Dia, 3-13/16 in Width, 27820 lb Dynamic/28700 lb Static Load, 4450 rpm Maximum, 225 deg F, Powder Coated

Bore Diameter      :      1-11/16 in
Finish      :      Powder Coated
Load Capacity      :      27820 lb Dynamic/28700 lb Static
Maximum Speed      :      4450 rpm
Outside Diameter      :      3.937 in
Series      :      5000
Temperature Rating      :      225 deg F
Type      :      Mounted
Width      :      3-13/16 in
  • Double setscrew locking collar
  • Clearance seal
  • Corrosion-resistant powder coating
  • Cast iron housing
  • Misalignment capabilities total of 4 deg
  • Factory set clearance and lubrication
  • Precision ground and super finished raceways
  • Bearings are easy to mount, sealed, pre-lubricated and do not require bearing adjustment during mounting
