Rex® 10435141 REXMAF6307F
  1. pin-int

Rex® 10435141 REXMAF6307F

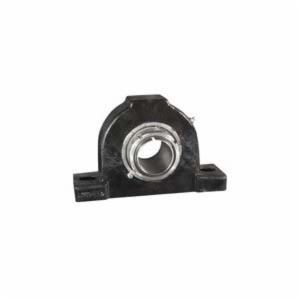

Rex® 10435141 6000 Heavy Duty Solid Housed Pillow Block Spherical Roller Bearing Unit, 3-7/16 in Dia Bore, 11-5/8 to 13-1/8 in L Bolt Center-to-Center, 4-1/2 in Base to Bore Centerline, 15-3/8 in OAL x 9-9/32 in OAH

  • Manufacturer: Regal Rexnord
  • Brand Name: Rex®
  • Part Number: REXMAF6307F
  • MPN: 10435141
  • UPC: 793699901399
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Rex® roller bearings are available in shaft sizes from 3/4 in through 7 in. Design improvements have increased load ratings and speed limits, combined with internal bearing design improvements. These features provide lower noise levels and are key performance factors that provide long bearing life. Rex® roller bearings allow for +/- 2 deg of dynamic misalignment to accommodate installation in accuracies or shaft deflection. A unique feature of Rex® bearing seals is that they are field replaceable and field upgradeable. Rex® roller bearings are available with a variety of seal choices, housing styles and shaft attachments to meet various application requirements.

Rex® Pillow Block Spherical Roller Bearing Unit, Heavy Duty Solid Housed, Series: 6000, 3-7/16 in Bore, 11-5/8 to 13-1/8 in Bolt Center-to-Center Length, 4-1/2 in Base to Bore Centerline, 15-3/8 in Overall Length, 5-1/32 in Overall Width, 9-9/32 in Overall Height, Four-Bolt Base Mounting, Round Bore, 4-11/32 in Base Width, Shurlok® Adapter Mount Locking Device, Spring-Loaded/Heavy Contact Seal, Non-Expansion (Fixed) Expansion, 84330 lb Dynamic/90700 lb Static Load, 225 deg F, 1400 rpm Maximum, Cast Iron, Powder Coated

Base Width      :      4-11/32 in
Base to Bore Centerline      :      4-1/2 in
Bolt Center-to-Center Length      :      11-5/8 to 13-1/8 in
Bore Diameter      :      3-7/16 in
Bore Type      :      Round
Expansion Type      :      Non-Expansion (Fixed)
Finish      :      Powder Coated
Load Capacity      :      84330 lb Dynamic/90700 lb Static
Locking Device      :      Shurlok® Adapter Mount
Material      :      Cast Iron
Maximum Speed      :      1400 rpm
Mounting Type      :      Four-Bolt Base
Overall Height      :      9-9/32 in
Overall Length      :      15-3/8 in
Overall Width      :      5-1/32 in
Seal Type      :      Spring-Loaded/Heavy Contact
Series      :      6000
Temperature Rating      :      225 deg F
Type      :      Heavy Duty Solid Housed
  • Easy bearing clearance adjustment
  • Pre-lubricated with standard grease for normal operation
  • Super-finished raceways provide a cool running and quiet, high-speed and high-load capacity bearing
  • Multiple housing styles
  • Spyglass™ optical strain sensor (OSS)
  • Positive locking system
  • Tapered mounting sleeve
  • Self-aligning bearing provides 4 deg of static and dynamic misalignment
  • Super-finished raceways and rollers
  • SAF interchange
  • Precision milled ends
  • Corrosion resistant
  • pdfWarranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Rex_AKBR5215_Warranty.pdf
