Rex® 10433641 REXMBR3307

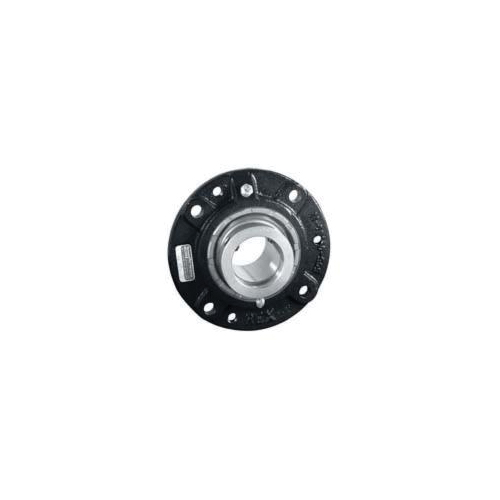

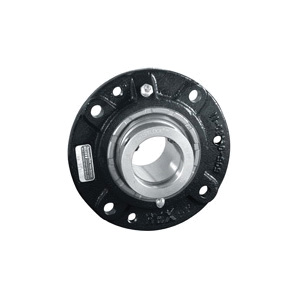

Rex® 10433641 3000 Fixed Medium Duty Flanged Cartridge Block Spherical Roller Bearing, 3-7/16 in Dia Bore, 6-3/32 in L Bolt Center-to-Center, 4-5/16 in Dia Bolt Circle, 4-Bolt Round Flange Mount, 10-1/4 in OAL/Dia
- Manufacturer: Regal Rexnord
- Brand Name: Rex®
- Part Number: REXMBR3307
- MPN: 10433641
- UPC: 698210910891
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Rex® Flanged Cartridge Block Spherical Roller Bearing, Fixed Medium Duty, Series: 3000, 3-7/16 in Bore, 6-3/32 in Bolt Center-to-Center Length, 4-5/16 in Diameter Bolt Circle, 4-Bolt Round Flange Mounting, 10-1/4 in Overall Length/Diameter, 4-37/64 in Overall Depth, Twist Lock™ Eccentric Cam Collar Locking Device, Elastomer Seal, 84330 lb Dynamic/90700 lb Static Load, 1400 rpm Maximum, 225 deg F, Powder Coated
| Bolt Center-to-Center Length | : | 6-3/32 in |
| Bolt Circle Diameter | : | 4-5/16 in |
| Bore Diameter | : | 3-7/16 in |
| Finish | : | Powder Coated |
| Flange Mounting Type | : | 4-Bolt Round |
| Load Capacity | : | 84330 lb Dynamic/90700 lb Static |
| Locking Device | : | Twist Lock™ Eccentric Cam Collar |
| Maximum Speed | : | 1400 rpm |
| Overall Depth | : | 4-37/64 in |
| Overall Length/Diameter | : | 10-1/4 in |
| Seal Material | : | Elastomer |
| Series | : | 3000 |
| Temperature Rating | : | 225 deg F |
| Type | : | Fixed Medium Duty |
- Easy bearing clearance adjustment
- Replaceable bearing
- Pre-lubricated with standard grease for normal operation
- Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
- Additional shaft holding power
- Accommodates undersized shafting
- Most economical
- Type M spring loaded heavy contact seal
- Cast iron housing
- Misalignment capabilities total of 4 deg
- Factory set clearance and lubrication
