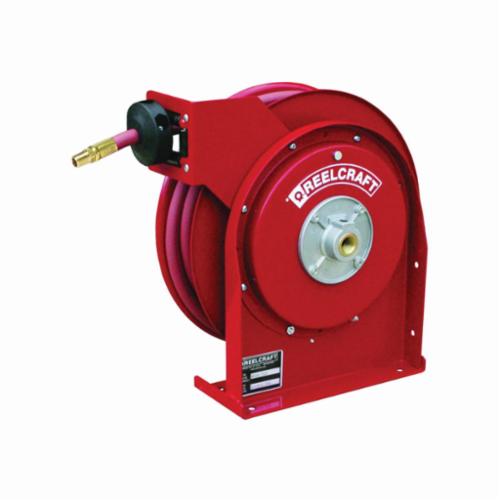

Reelcraft® 4420 OLP REL4420OLP

Series 4000, 5000 and 5005 reels are all steel construction and compact for a wide range of applications with critical space requirements. A full flow shaft and swivel assures maximum product delivery. Guide arm adjusts to two positions.

Reelcraft® Hose Reel, Low Pressure Premium Duty, Series: 4000, 1/4 in ID x 19/40 in OD x 20 ft L Hose, 300 psi Pressure, 12-3/8 in Reel Diameter, 2-1/2 in Wheel Diameter, Retractable Spring Drive, Ceiling/Floor/Wall Mounting, Steel/Zinc Dichromate Swivel, Buna-N Seal, 12-7/8 in H x 12-3/8 in W x 5-5/8 in D, Reinforced Stainless Steel, Powder Coated, Red, Domestic

• Reinforced steel - the robotically welded steel base offers maximum strength and consistent quality
• All steel components are powder coated for maximum corrosion resistance
• Full flow stress free swivel design - the full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
• The hose is plumbed into the base to eliminate the risk of undue stress on the swivel
• Long life drive spring - declutching arbor virtually eliminates possibility of spring damage due to reverse winding
• Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
• Quiet speed latch - the latch cam is designed for reliable quiet operation
• 1/4 in MNPT hose outlet
• 3/8 in FNPT reel inlet
• 150 deg F maximum temperature rating

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_4400_OLP_Catalog.pdf
• Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_4425_OLP_User_Manual.pdf
• VIDEO LINK https://www.youtube.com/watch?v=AJH7g06oZQY
