RBC® S56 RBCS56
  1. pin-int

RBC® S56 RBCS56

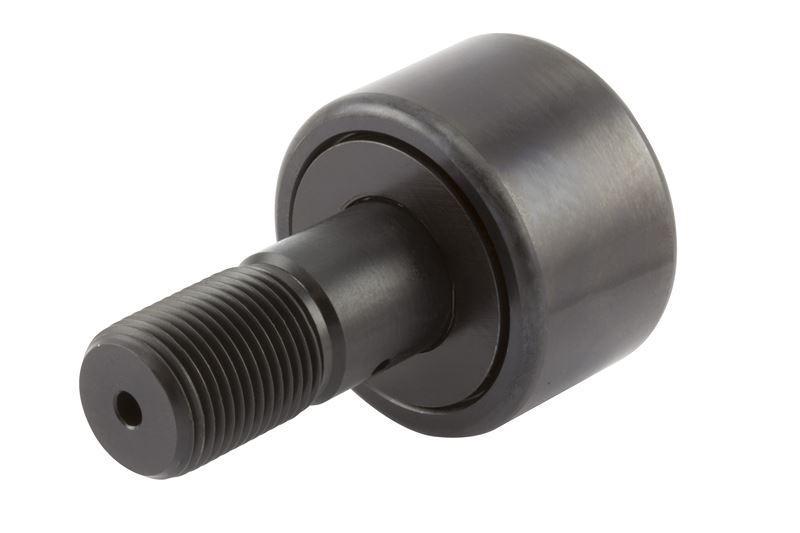

RBC® HexLube® S56 S Series Needle Roller Cylindrical Cam Follower, 1-3/4 in Dia x 1 in W Roller, 3/4 in Dia x 1-3/4 in L Stud, Chrome Steel Roller

  • Manufacturer: RBC Bearings Incorporated
  • Brand Name: RBC®
  • Part Number: RBCS56
  • MPN: S56
  • UPC: 637400008031
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Needle Roller Cam Followers have a heavy outer ring cross section and a full complement of needle rollers. They offer high dynamic and static load carrying capability, and anti-friction performance, in a compact design. They are used as track rollers, cam followers, and in a wide range of linear motion systems.

RBC® HexLube® Cylindrical Cam Follower, Needle Roller, Series: S Series, 1-3/4 in Roller Dia, 1 in Roller Width, 3/4 in Stud Dia, 1-3/4 in Stud Length, 3/4-16 UNF-2A, 7/8 in Thread Length, 6400 lb Dynamic/12400 lb Static, 2600 rpm Maximum, 250 deg F, Standard Stud, Open Closure, Slotted, Chrome Steel Roller, Chrome Steel Stud, Black Oxide

Closure Type      :      Open
Finish      :      Black Oxide
Head Type      :      Slotted
Load Capacity      :      6400 lb Dynamic/12400 lb Static
Maximum Speed      :      2600 rpm
Roller Diameter      :      1-3/4 in
Roller Material      :      Chrome Steel
Roller Width      :      1 in
Series      :      S Series
Stud Diameter      :      3/4 in
Stud Length      :      1-3/4 in
Stud Material      :      Chrome Steel
Stud Type      :      Standard
Temperature Rating      :      250 deg F
Thread Length      :      7/8 in
Thread Size      :      3/4-16 UNF-2A
Type      :      Needle Roller
  • Inventory reduction of about 50%
  • Allows relubrication in tight spots or when stud access is limited
  • HexLube® universal cam follower can eliminate the need to stock screwdriver slots or unsealed cam followers
  • Heavy stud cam followers are designed to provide additional stud strength for applications with high loading or shock loads
  • Standard stud cam followers offer the mounting convenience of a threaded stud and are designed to accommodate moderate loads
  • Screwdriver slots
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RBC_CH104L_Catalog.pdf
