RBC Roller® RBC4 RBCRBC4
  1. pin-int

RBC Roller® RBC4 RBCRBC4

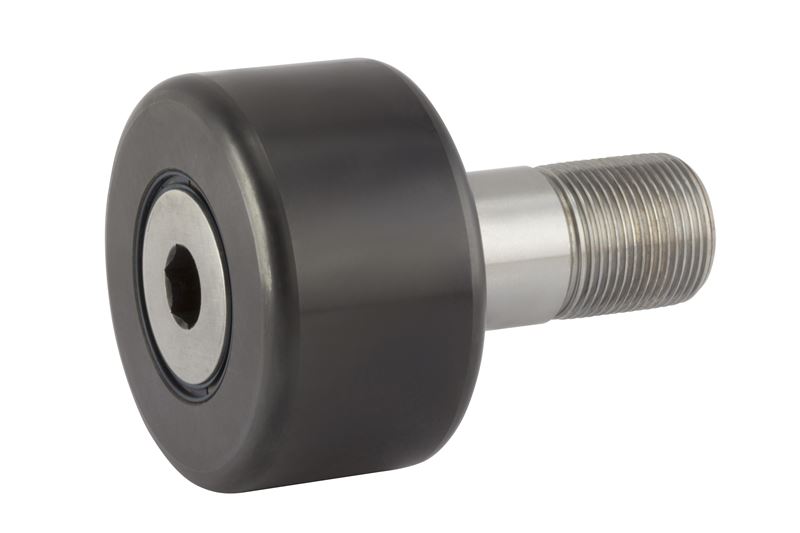

RBC Roller® RBC4 RBC Cylindrical Bearing, 4 in Dia Roller x 2-1/4 in W Roller, 1-1/2 in Dia Stud x 3-1/2 in L Stud, Chrome Steel Roller

  • Manufacturer: RBC Bearings Incorporated
  • Brand Name: RBC Roller®
  • Part Number: RBCRBC4
  • MPN: RBC4
  • UPC: 637400022174
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

RBC Roller®, RBC4, Bearing, Cylindrical, Series: RBC, 4 in Roller Diameter, 2-1/4 in Roller Width, 1-1/2 in Stud Diameter, 3-1/2 in Stud Length, 1-1/2-12 Thread, 1-1/2 in Thread Length, 57100 lb Load, 2600 rpm Maximum, Standard Stud, Sealed Closure, Hex Head, Chrome Steel Roller, Black Oxide

Closure Type      :      Sealed
Finish      :      Black Oxide
Head Type      :      Hex
Load Capacity      :      57100 lb
Maximum Speed      :      2600 rpm
Roller Diameter      :      4 in
Roller Material      :      Chrome Steel
Roller Width      :      2-1/4 in
Series      :      RBC
Stud Diameter      :      1-1/2 in
Stud Length      :      3-1/2 in
Stud Material      :      Chrome Steel
Stud Type      :      Standard
Thread Length      :      1-1/2 in
Thread Size      :      1-1/2-12
Type      :      Cylindrical
  • Drive Type Hex
  • Effective Thread Length is 1-1/2 in
  • Grade 52100
  • Increase load carrying capacity without increasing cam follower size Up to double the dynamic load rating
  • Invented by RBC to solve some of the toughest machine and product control guidance challenges
  • Lube Fitting Size is 1/8 in
  • Material Handling, Turntable Mounting, Lift Trucks, Textile Machinery
  • Max Static Capacity is 68000 lb
  • Number of Rows Double Row
  • Operate at much higher rotary speeds RBC Roller cam followers operate at speeds up to 2 times higher
  • Product Weight is 7.44
  • Repair and replace cycle is greatly reduced because RBC Roller cam followers operate up to 5 times longer
  • Stud Diameter is 1-1/2 in
  • Stud Length is 3-1/2 in
  • Thread Size is 1-1/2"-12
  • Two rows of cylindrical rollers delivers tremendous operating advantages in an economical package
  • Unique contacting lip seals provide positive protection against contamination while keeping grease inside
  • Basic Dynamic Rating is 45600 lb
