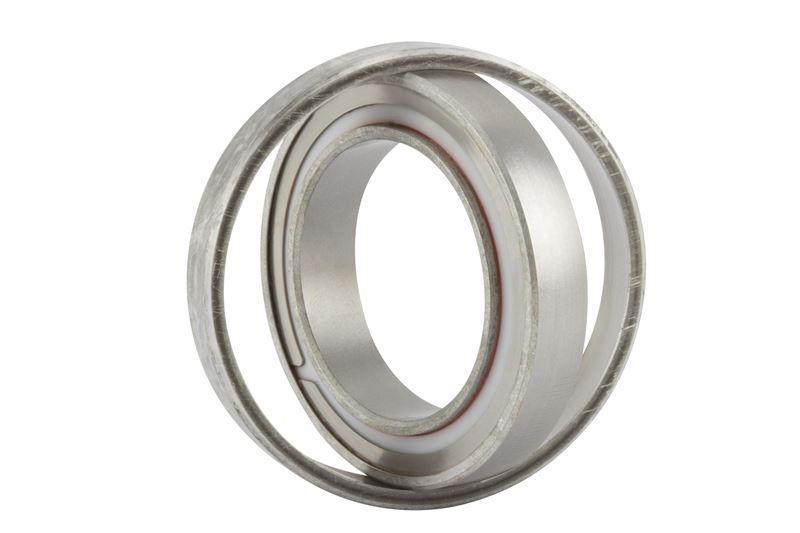

RBC® KP25BSFS428 KP-BS Torque Tube Standard Externally Self-Aligning Airframe Bearing, Ball Bearing, 1.563 in Dia Bore, 2-1/2 in OD, 0.437 in W, 11300 lb Load

  • Manufacturer: RBC Bearings Incorporated
  • Brand Name: RBC®
  • Part Number: RBCKP25BSFS428
  • MPN: KP25BSFS428
  • UPC: 637400551773
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

RBC® Self-Aligning Airframe Bearing, Torque Tube Standard Externally, Series: KP-BS, Ball Bearing, 1.563 in Bore Dia, 1 Row, 2-1/2 in Outside Dia, 0.437 in W, 11300 lb, 52100 Steel Bearing, PTFE Seal, -65 to 250 deg F, Cadmium

Bearing Material      :      52100 Steel
Bearing Type      :      Ball
Bore Diameter      :      1.563 in
Finish      :      Cadmium
Load Capacity      :      11300 lb
Number of Rows      :      1
Outside Diameter      :      2-1/2 in
Seal Material      :      PTFE
Series      :      KP-BS
Temperature Rating      :      -65 to 250 deg F
Type      :      Torque Tube Standard Externally
Width      :      0.437 in
  • Single row extra light duty airframe control ball bearing
  • External self-aligning design to compensate for initial misalignment
  • CRES seal caps
  • Exposed surfaces except bore, caps and seals are cadmium plated
  • Prelubricated for life
  • This bearing is not intended for use in any aerospace application
  • Contact seals
  • Aeroshell 33® type 1 grease
  • 11300 lb dynamic/11300 lb static
