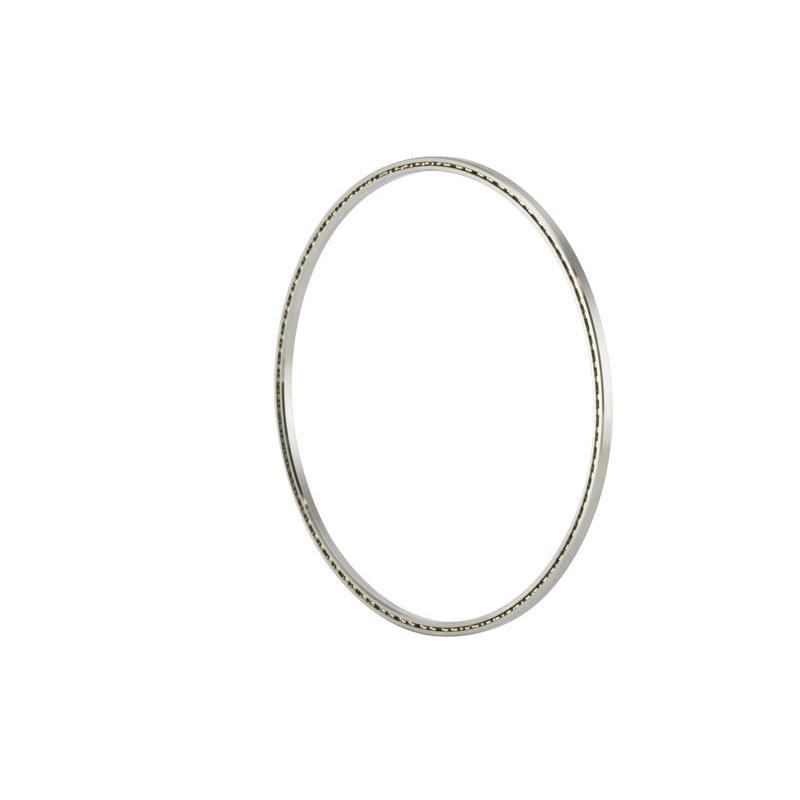

RBC® KC120CP0-RBC RBCKC120CP0

RBC® thin section ball bearings are engineered to solve a variety of design problems that cannot be solved with conventional ball bearings. A bearing is considered a thin section when the bore diameter is greater than four times the radial cross section. Within any thin section ball bearing series, the cross section remains constant as the bore diameter changes. Typically the cross section is twice the ball diameter and nominal dimensions are given in inches.

RBC® Thin Section Ball Bearing, Type-C Radial Contact, Series: KC Series, 12 in Bore Dia, 12-3/4 in Outside Dia, 1 Row, 3/8 in W, Open Closure, 5950 lb, 52100 Steel Bearing, Brass/Composite Cage, 1290 rpm Grease/1620 rpm Oil Maximum, -60 to 250 deg F, Uncoated

• Lightweight
• High stiffness
• Small cross section
• Multi load capabilities
• Variety of cross sections and sizes
• Modified and custom bearings
• Not recommended for low torque applications
• The C-type, radial contact ball bearing is designed with deep ball grooves to withstand high loads
• Although this bearing is used primarily in applications with radial loads, it can withstand moderate axial loads, reversing axial loads and moment loads
• Large diameter
• 1-piece ring, snap-over type separator
• Round bore
• 1974 lb dynamic/5950 lb static
• C0 clearance

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RBC_JA020CP0RBC_Catalog.pdf
