RBC® H52 RBCH52

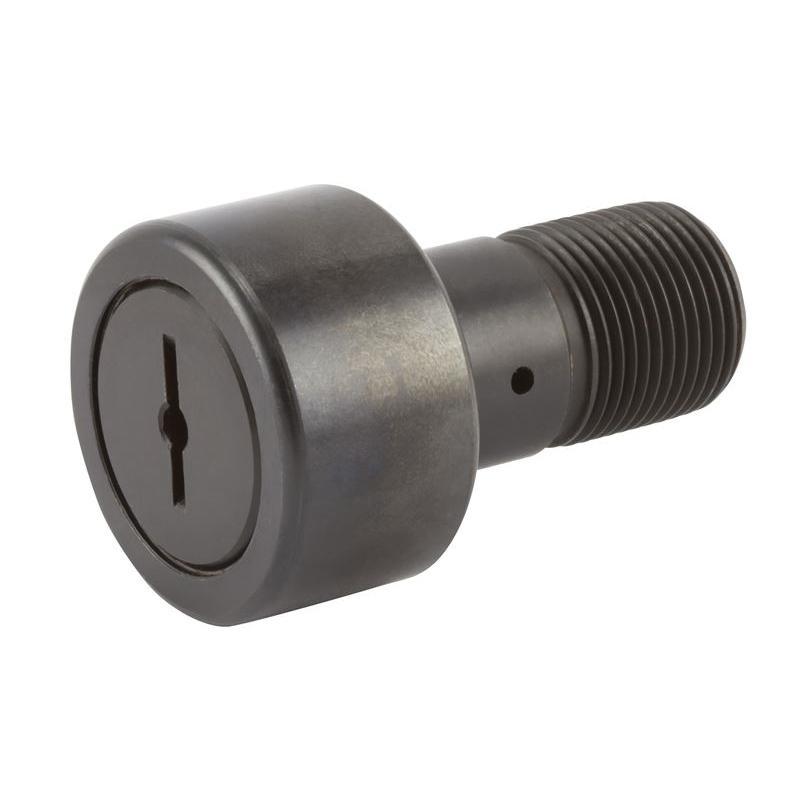

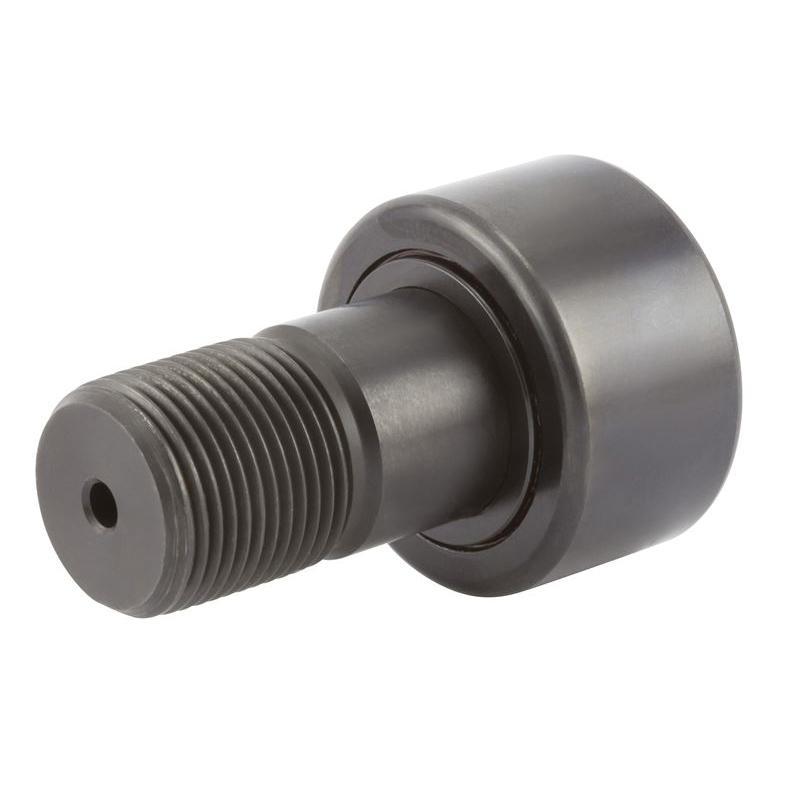

RBC® HexLube® H52 H Series Needle Roller Cylindrical Cam Follower, 1-5/8 in Dia x 7/8 in W Roller, 7/8 in Dia x 1-1/2 in L Stud, Chrome Steel Roller
- Manufacturer: RBC Bearings Incorporated
- Brand Name: RBC®
- Part Number: RBCH52
- MPN: H52
- UPC: 637400006044
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Needle Roller Cam Followers have a heavy outer ring cross section and a full complement of needle rollers. They offer high dynamic and static load carrying capability, and anti-friction performance, in a compact design. They are used as track rollers, cam followers, and in a wide range of linear motion systems.
RBC® HexLube® Cylindrical Cam Follower, Needle Roller, Series: H Series, 1-5/8 in Roller Dia, 7/8 in Roller Width, 7/8 in Stud Dia, 1-1/2 in Stud Length, 7/8-14 UNF-2A, 3/4 in Thread Length, 4900 lb Dynamic/11300 lb Static, 3100 rpm Maximum, 250 deg F, Heavy Duty Stud, Open Closure, Slotted, Chrome Steel Roller, Chrome Steel Stud, Black Oxide
| Closure Type | : | Open |
| Finish | : | Black Oxide |
| Head Type | : | Slotted |
| Load Capacity | : | 4900 lb Dynamic/11300 lb Static |
| Maximum Speed | : | 3100 rpm |
| Roller Diameter | : | 1-5/8 in |
| Roller Material | : | Chrome Steel |
| Roller Width | : | 7/8 in |
| Series | : | H Series |
| Stud Diameter | : | 7/8 in |
| Stud Length | : | 1-1/2 in |
| Stud Material | : | Chrome Steel |
| Stud Type | : | Heavy Duty |
| Temperature Rating | : | 250 deg F |
| Thread Length | : | 3/4 in |
| Thread Size | : | 7/8-14 UNF-2A |
| Type | : | Needle Roller |
- Inventory reduction of about 50%
- Allows relubrication in tight spots or when stud access is limited
- HexLube® universal cam follower can eliminate the need to stock screwdriver slots or unsealed cam followers
- Heavy stud cam followers are designed to provide additional stud strength for applications with high loading or shock loads
- Screwdriver slots
