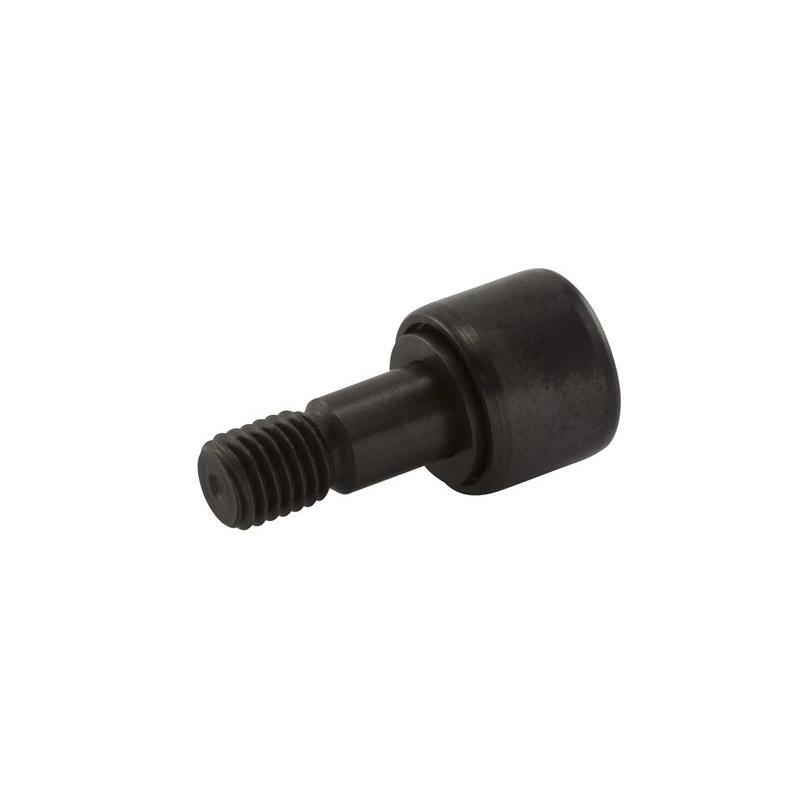

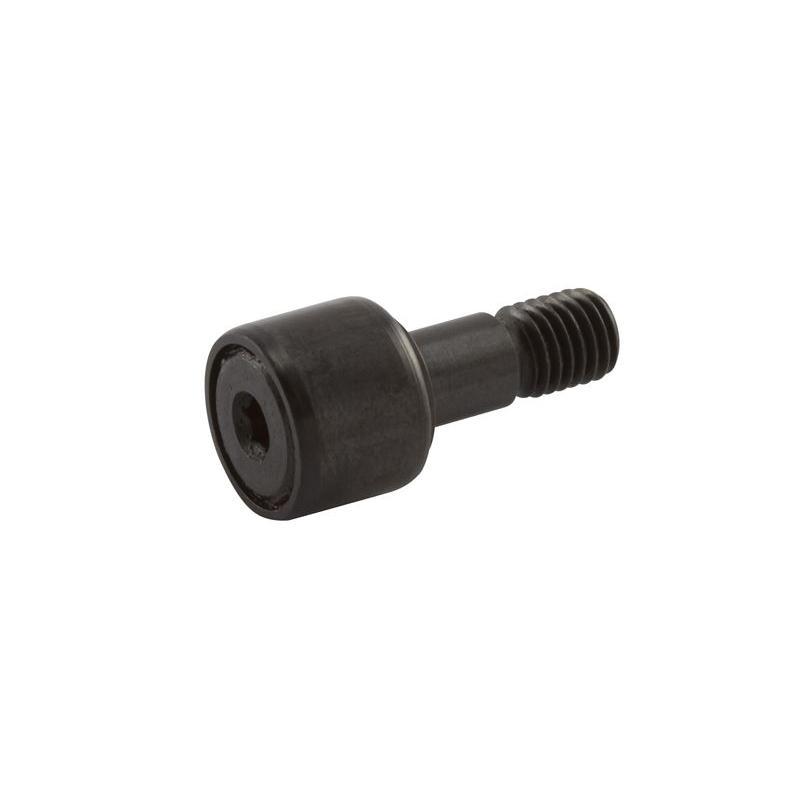

RBC® H22LW RBCH22LW
RBC® HexLube® H22LW H-LW Needle Roller Cylindrical Cam Follower, 11/16 in Dia x 0.438 in W Roller, 5/16 in Dia x 3/4 in L Stud, Chrome Steel Roller
- Manufacturer: RBC Bearings Incorporated
- Brand Name: RBC®
- Part Number: RBCH22LW
- MPN: H22LW
- UPC: 637400005771
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Needle Roller Cam Followers have a heavy outer ring cross section and a full complement of needle rollers. They offer high dynamic and static load carrying capability, and anti-friction performance, in a compact design. They are used as track rollers, cam followers, and in a wide range of linear motion systems.
RBC® HexLube® Cylindrical Cam Follower, Needle Roller, Series: H-LW, 11/16 in Roller Dia, 0.438 in Roller Width, 5/16 in Stud Dia, 3/4 in Stud Length, 5/16-24 UNF-2A, 0.312 in Thread Length, 970 lb Dynamic/2500 lb Static, 5000 rpm Maximum, 250 deg F, Heavy Duty Stud, Sealed Closure, Hex, Chrome Steel Roller, Chrome Steel Stud, Black Oxide
| Closure Type | : | Sealed |
| Finish | : | Black Oxide |
| Head Type | : | Hex |
| Load Capacity | : | 970 lb Dynamic/2500 lb Static |
| Maximum Speed | : | 5000 rpm |
| Roller Diameter | : | 11/16 in |
| Roller Material | : | Chrome Steel |
| Roller Width | : | 0.438 in |
| Series | : | H-LW |
| Stud Diameter | : | 5/16 in |
| Stud Length | : | 3/4 in |
| Stud Material | : | Chrome Steel |
| Stud Type | : | Heavy Duty |
| Temperature Rating | : | 250 deg F |
| Thread Length | : | 0.312 in |
| Thread Size | : | 5/16-24 UNF-2A |
| Type | : | Needle Roller |
- Inventory reduction of about 50%
- Allows relubrication in tight spots or when stud access is limited
- HexLube® universal cam follower can eliminate the need to stock screwdriver slots or unsealed cam followers
- Heavy stud cam followers are designed to provide additional stud strength for applications with high loading or shock loads
