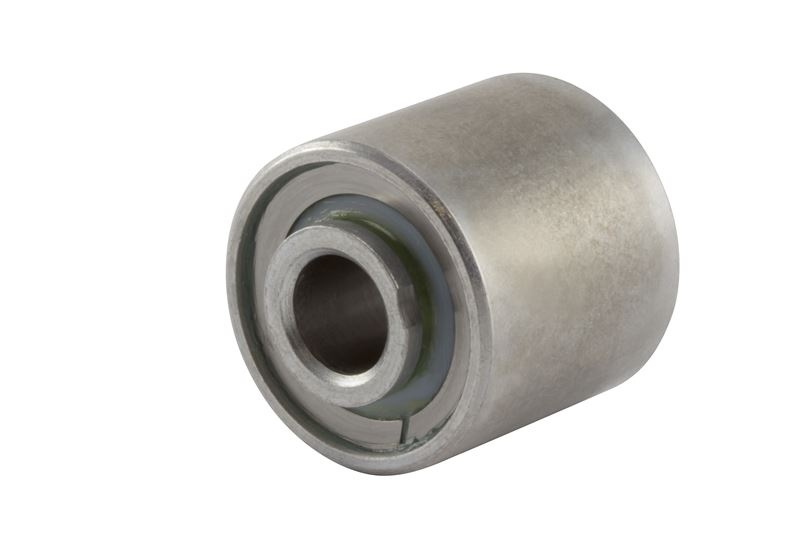

RBC® DW8FS428 RBCDW8FS428
RBC® DW8FS428 DW Series Standard Airframe Bearing, Ball Bearing, 1/2 in Dia Bore, 1-7/16 in OD, 1-1/2 in W, 15520 lb Load
- Manufacturer: RBC Bearings Incorporated
- Brand Name: RBC®
- Part Number: RBCDW8FS428
- MPN: DW8FS428
- UPC: 637400568818
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
RBC® Airframe Bearing, Standard, Series: DW Series, Ball Bearing, 1/2 in Bore Dia, 2 Rows, 1-7/16 in Outside Dia, 1-1/2 in W, 15520 lb, 52100 Steel Bearing, PTFE Seal, -65 to 250 deg F, Cadmium
| Bearing Material | : | 52100 Steel |
| Bearing Type | : | Ball |
| Bore Diameter | : | 1/2 in |
| Finish | : | Cadmium |
| Load Capacity | : | 15520 lb |
| Number of Rows | : | 2 |
| Outside Diameter | : | 1-7/16 in |
| Seal Material | : | PTFE |
| Series | : | DW Series |
| Temperature Rating | : | -65 to 250 deg F |
| Type | : | Standard |
| Width | : | 1-1/2 in |
- Extra wide, double row medium duty airframe control ball bearing
- CRES seal caps
- Exposed surfaces except bore, caps and seals are cadmium plated
- Prelubricated for life
- This bearing is not intended for use in any aerospace application
- Rigid contact seals
- Aeroshell 33® type 1 grease
- 15520 lb dynamic/15520 lb static
