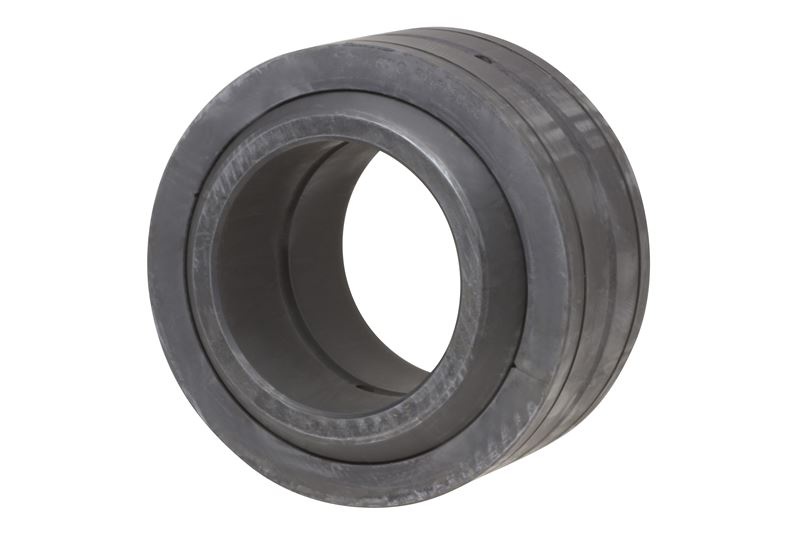

RBC® BH88969-L RBCBH88969L
RBC® BH88969-L BH-L High Misalignment Spherical Plain Bearing, 5-1/2 in Dia Bore, 8-3/4 in OD, 4.95 in W, 1177500 lb Load
- Manufacturer: RBC Bearings Incorporated
- Brand Name: RBC®
- Part Number: RBCBH88969L
- MPN: BH88969-L
- UPC: 637400000493
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
RBC® has been a pioneer in spherical plain bearing technology since inventing the fractured outer race design many years ago. Since that time, RBC® has continued to introduce industry leading innovations such as high misalignment, angular contact, extended inner ring, tapered bore, and extended lubrication groove spherical plain bearing designs.
RBC® Spherical Plain Bearing, High Misalignment, Series: BH-L, 5-1/2 in Bore Dia, 8-3/4 in Outside Dia, 4.95 in W, Open Closure, 1177500 lb, 52100 Steel Bearing, 300 deg F
| Bearing Material | : | 52100 Steel |
| Bore Diameter | : | 5-1/2 in |
| Closure Type | : | Open |
| Load Capacity | : | 1177500 lb |
| Outside Diameter | : | 8-3/4 in |
| Series | : | BH-L |
| Temperature Rating | : | 300 deg F |
| Type | : | High Misalignment |
| Width | : | 4.95 in |
- Designed to support heavy radial loads under misalignment
- These bearings also possess moderate thrust loading capability
- Lube holes and grooves to facilitate relubrication
- Increased inner ring cross section to enable higher degree of misalignment
- 9 deg misalignment angle
- 387600 lb axial static
- 294300 lb dynamic/1177500 lb static
