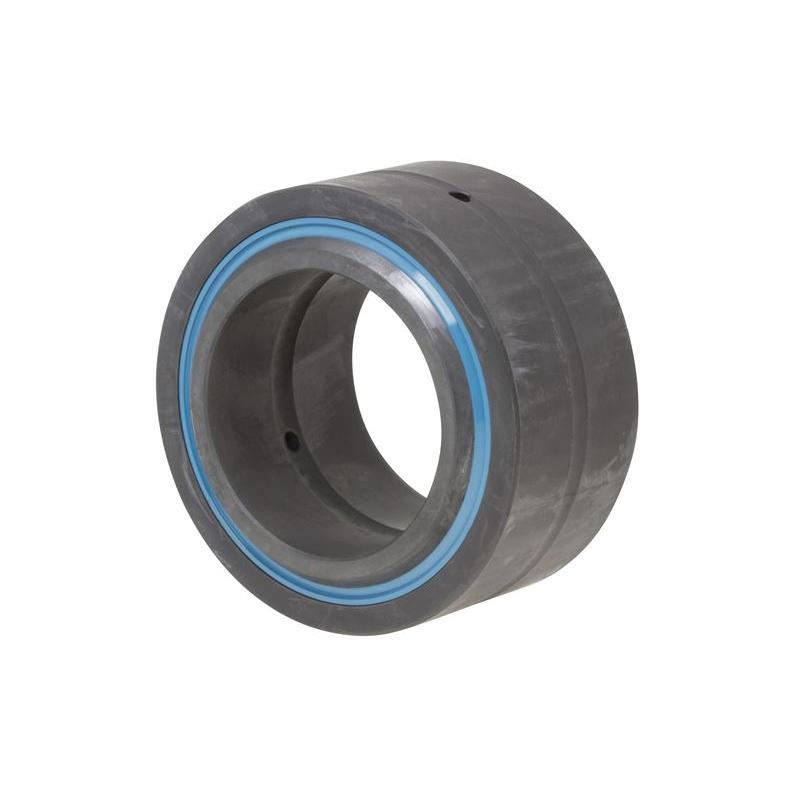

RBC® B60-LSS RBCB60LSS
RBC® B60-LSS B-LSS Spherical Plain Bearing, 3-3/4 in Dia Bore, 5-7/8 in OD, 3.281 in W, 530400 lb Load
- Manufacturer: RBC Bearings Incorporated
- Brand Name: RBC®
- Part Number: RBCB60LSS
- MPN: B60-LSS
- UPC: 637400002220
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
RBC® has been a pioneer in spherical plain bearing technology since inventing the fractured outer race design many years ago. Since that time, RBC® has continued to introduce industry leading innovations such as high misalignment, angular contact, extended inner ring, tapered bore, and extended lubrication groove spherical plain bearing designs.
RBC® Spherical Plain Bearing, Series: B-LSS, 3-3/4 in Bore Dia, 5-7/8 in Outside Dia, 3.281 in W, Sealed Closure, 530400 lb, 52100 Steel Bearing, Thermal Plastic Elastomer Seal, -60 to 250 deg F
| Bearing Material | : | 52100 Steel |
| Bore Diameter | : | 3-3/4 in |
| Closure Type | : | Sealed |
| Load Capacity | : | 530400 lb |
| Outside Diameter | : | 5-7/8 in |
| Seal Material | : | Thermal Plastic Elastomer |
| Series | : | B-LSS |
| Temperature Rating | : | -60 to 250 deg F |
| Width | : | 3.281 in |
- Designed to support heavy radial loads under misalignment
- These bearings also possess moderate thrust loading capability
- Lube holes and grooves to facilitate relubrication
- Double sealed to keep grease in and contaminants out
- 11 deg misalignment angle
- 126100 lb axial static
- 132600 lb dynamic/530400 lb static
