RBC® B44-SA RBCB44SA

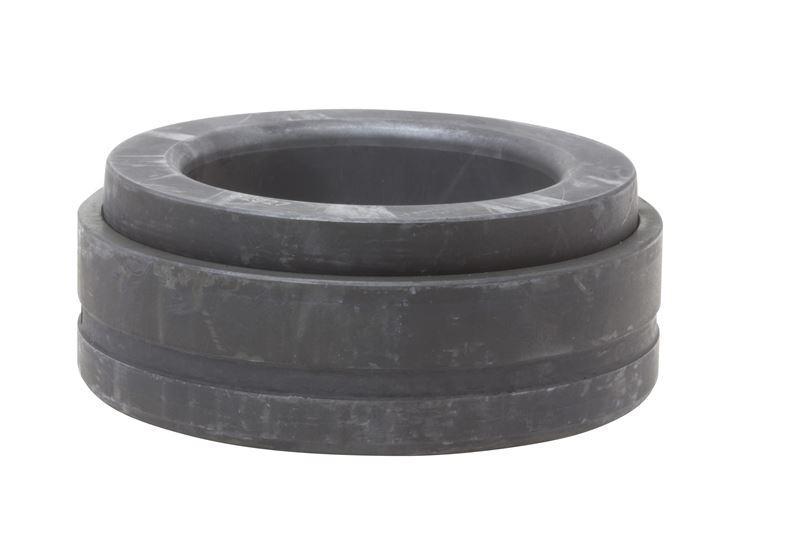

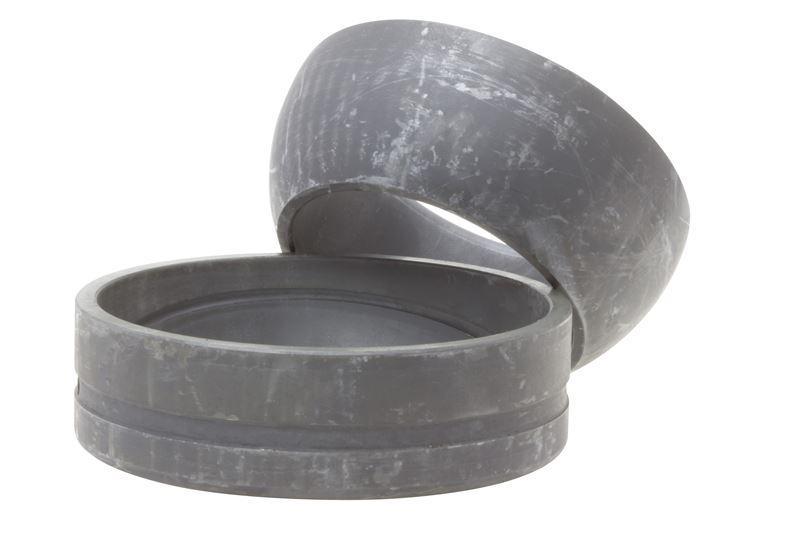

RBC® B44-SA B-SA Single-Acting Spherical Plain Bearing, 2-3/4 in Dia Bore, 4-7/16 in OD, 1.56 in W, 156900 lb Load
- Manufacturer: RBC Bearings Incorporated
- Brand Name: RBC®
- Part Number: RBCB44SA
- MPN: B44-SA
- UPC: 637400019259
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
RBC® has been a pioneer in spherical plain bearing technology since inventing the fractured outer race design many years ago. Since that time, RBC® has continued to introduce industry leading innovations such as high misalignment, angular contact, extended inner ring, tapered bore, and extended lubrication groove spherical plain bearing designs.
RBC® Spherical Plain Bearing, Single-Acting, Series: B-SA, 2-3/4 in Bore Dia, 4-7/16 in Outside Dia, 1.56 in W, Open Closure, 156900 lb, 52100 Steel Bearing, -60 to 300 deg F
| Bearing Material | : | 52100 Steel |
| Bore Diameter | : | 2-3/4 in |
| Closure Type | : | Open |
| Load Capacity | : | 156900 lb |
| Outside Diameter | : | 4-7/16 in |
| Series | : | B-SA |
| Temperature Rating | : | -60 to 300 deg F |
| Type | : | Single-Acting |
| Width | : | 1.56 in |
- Designed to support heavy unidirectional thrust and combination radial/thrust loads
- Lube holes and grooves to facilitate relubrication
- 44100 lb axial dynamic/176500 lb static
- 39200 lb dynamic/156900 lb static
- Kingpin Assemblies, High Thrust Load Applications
- Product Weight is 3.86
