RBC® B12-EL RBCB12EL

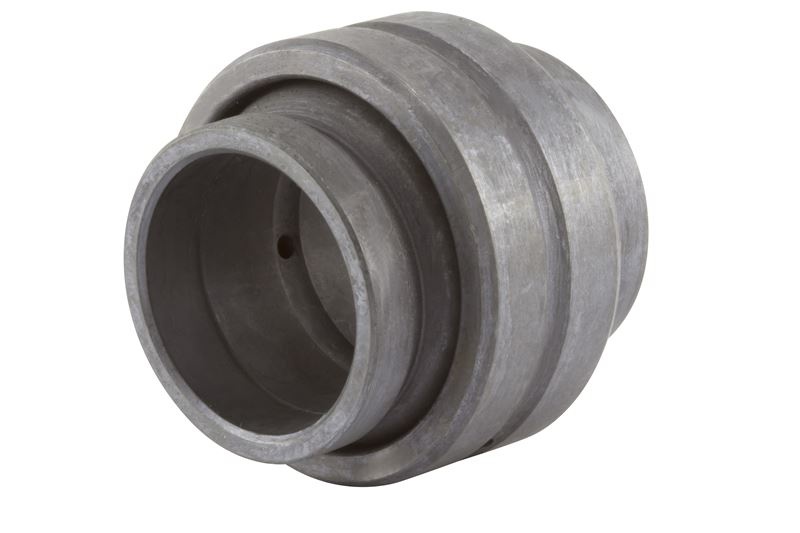

RBC® B12-EL B-EL Extended Inner Ring Spherical Plain Bearing, 3/4 in Dia Bore, 1-1/4 in OD, 1-1/8 in W, 21200 lb Load
- Manufacturer: RBC Bearings Incorporated
- Brand Name: RBC®
- Part Number: RBCB12EL
- MPN: B12-EL
- UPC: 637400000752
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
RBC® has been a pioneer in spherical plain bearing technology since inventing the fractured outer race design many years ago. Since that time, RBC® has continued to introduce industry leading innovations such as high misalignment, angular contact, extended inner ring, tapered bore, and extended lubrication groove spherical plain bearing designs.
RBC® Spherical Plain Bearing, Extended Inner Ring, Series: B-EL, 3/4 in Bore Dia, 1-1/4 in Outside Dia, 1-1/8 in W, Open Closure, 21200 lb, 52100 Steel Bearing, 300 deg F
| Bearing Material | : | 52100 Steel |
| Bore Diameter | : | 3/4 in |
| Closure Type | : | Open |
| Load Capacity | : | 21200 lb |
| Outside Diameter | : | 1-1/4 in |
| Series | : | B-EL |
| Temperature Rating | : | 300 deg F |
| Type | : | Extended Inner Ring |
| Width | : | 1-1/8 in |
- Designed to support heavy radial loads under misalignment
- These bearings also possess moderate thrust loading capability
- Lube holes and grooves to facilitate relubrication
- Extended inner ring design eliminates the need for locational spacers
- 9 deg misalignment angle
- 3900 lb axial static
- 5300 lb dynamic/21200 lb static
- Hydraulic Cylinder Ends, Linkages, Kingpin Assemblies, Clevis Ends, Shock Absorber Assemblies, Tie Rod Ends
- Possess moderate thrust loading capability
- Product Weight is 0.1042
