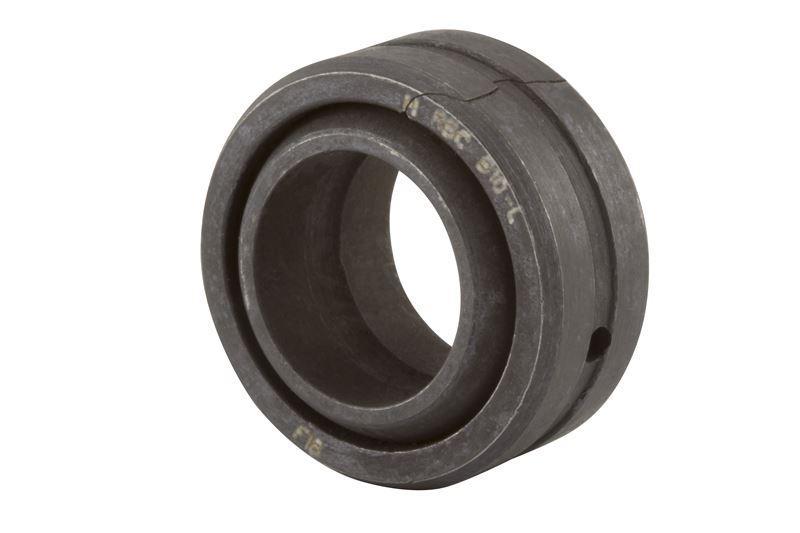

RBC® B10L RBCB10L
RBC® B10L B-L Series Spherical Plain Bearing, 5/8 in Dia Bore, 1-1/16 in OD, 0.547 in W, 14700 lb Load
- Manufacturer: RBC Bearings Incorporated
- Brand Name: RBC®
- Part Number: RBCB10L
- MPN: B10L
- UPC: 637400000738
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
RBC® has been a pioneer in spherical plain bearing technology since inventing the fractured outer race design many years ago. Since that time, RBC® has continued to introduce industry leading innovations such as high misalignment, angular contact, extended inner ring, tapered bore, and extended lubrication groove spherical plain bearing designs.
RBC® Spherical Plain Bearing, Series: B-L Series, 5/8 in Bore Dia, 1-1/16 in Outside Dia, 0.547 in W, Open Closure, 14700 lb, 52100 Steel Bearing, 300 deg F
| Bearing Material | : | 52100 Steel |
| Bore Diameter | : | 5/8 in |
| Closure Type | : | Open |
| Load Capacity | : | 14700 lb |
| Outside Diameter | : | 1-1/16 in |
| Series | : | B-L Series |
| Temperature Rating | : | 300 deg F |
| Width | : | 0.547 in |
- Designed to support heavy radial loads under misalignment
- These bearings also possess moderate thrust loading capability
- Lube holes and grooves to facilitate relubrication
- 14 deg misalignment angle
- 2500 lb axial static
- 3600 lb dynamic/14700 lb static
