PTI SNG513-611 PTISNG513-611

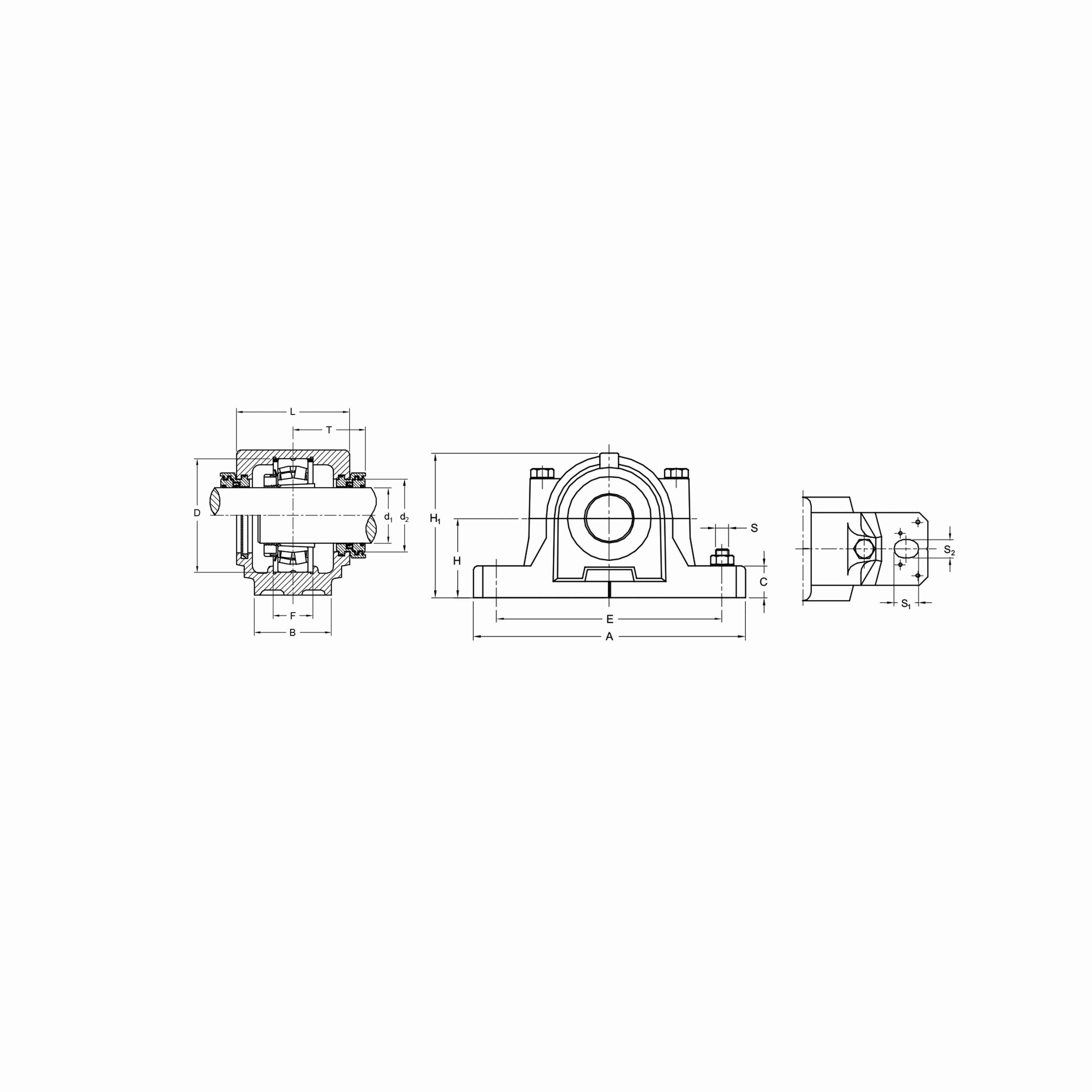

PTI SNG513-611 SNG 500 Plummer Block Housing, 120 mm ID, Two-Bolt Base Mount, 80 mm Base to Bore Centerline, 275 mm OAL x 148 mm OAH
- Manufacturer: Solve Industrial Motion Group
- Brand Name: PTI
- Part Number: PTISNG513-611
- Alt Part Number: 2101022294
- MPN: SNG513-611
- UPC: 800675273873
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
The SNG metric plummer blocks interchange with the PTI SNHF series. Some additional seals are available for both the SNG 500 and SNG 600 series (for 222 and 223 series spherical bearings). Like the SAF series, the SNG will accommodate double row ball bearings for high speed applications. With the SNG unit, it will also accommodate 200 series block requirements (direct mount) using felt seals and straight bore spherical bearings. FSSNG 4-bolt base units also available.
PTI Plummer Block Housing, Series: SNG 500, 120 mm ID, Two-Bolt Base Mounting, 80 mm Base to Bore Centerline, 275 mm Overall Length, 110 mm Overall Width, 148 mm Overall Height, Compatible Bore Diameter: 60 mm, Compatible Bearing Type: Spherical Roller Bearing, 230 mm Bolt Center-to-Center Length, 80 mm Base Width, Cast Iron
| Base Width | : | 80 mm |
| Base to Bore Centerline | : | 80 mm |
| Bolt Center-to-Center Length | : | 230 mm |
| Compatible Bearing Type | : | Spherical Roller Bearing |
| Compatible Bore Diameter | : | 60 mm |
| Inside Diameter | : | 120 mm |
| Material | : | Cast Iron |
| Mounting Type | : | Two-Bolt Base |
| Overall Height | : | 148 mm |
| Overall Length | : | 275 mm |
| Overall Width | : | 110 mm |
| Series | : | SNG 500 |
