PTI M1B36 PTIM1B36

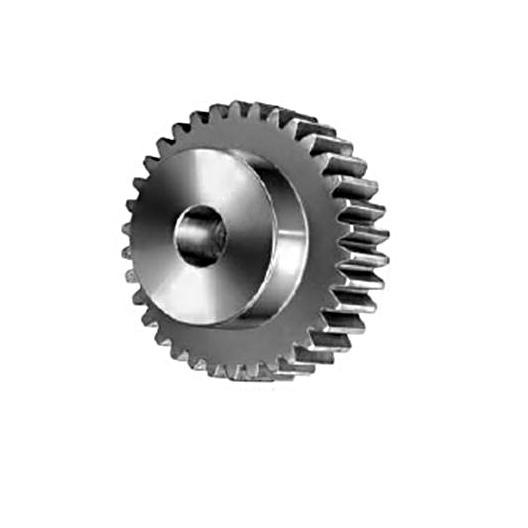

PTI M1B36 Straight Tooth Hub Type Spur Gear, 20 deg Pressure Angle, 15 mm W Face, 36 Teeth, 36 mm Dia Pitch, 10 mm Dia Bore, C45 E Steel
- Manufacturer: Solve Industrial Motion Group
- Brand Name: PTI
- Part Number: PTIM1B36
- Alt Part Number: 2101016934
- MPN: M1B36
- UPC: 800675225315
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:

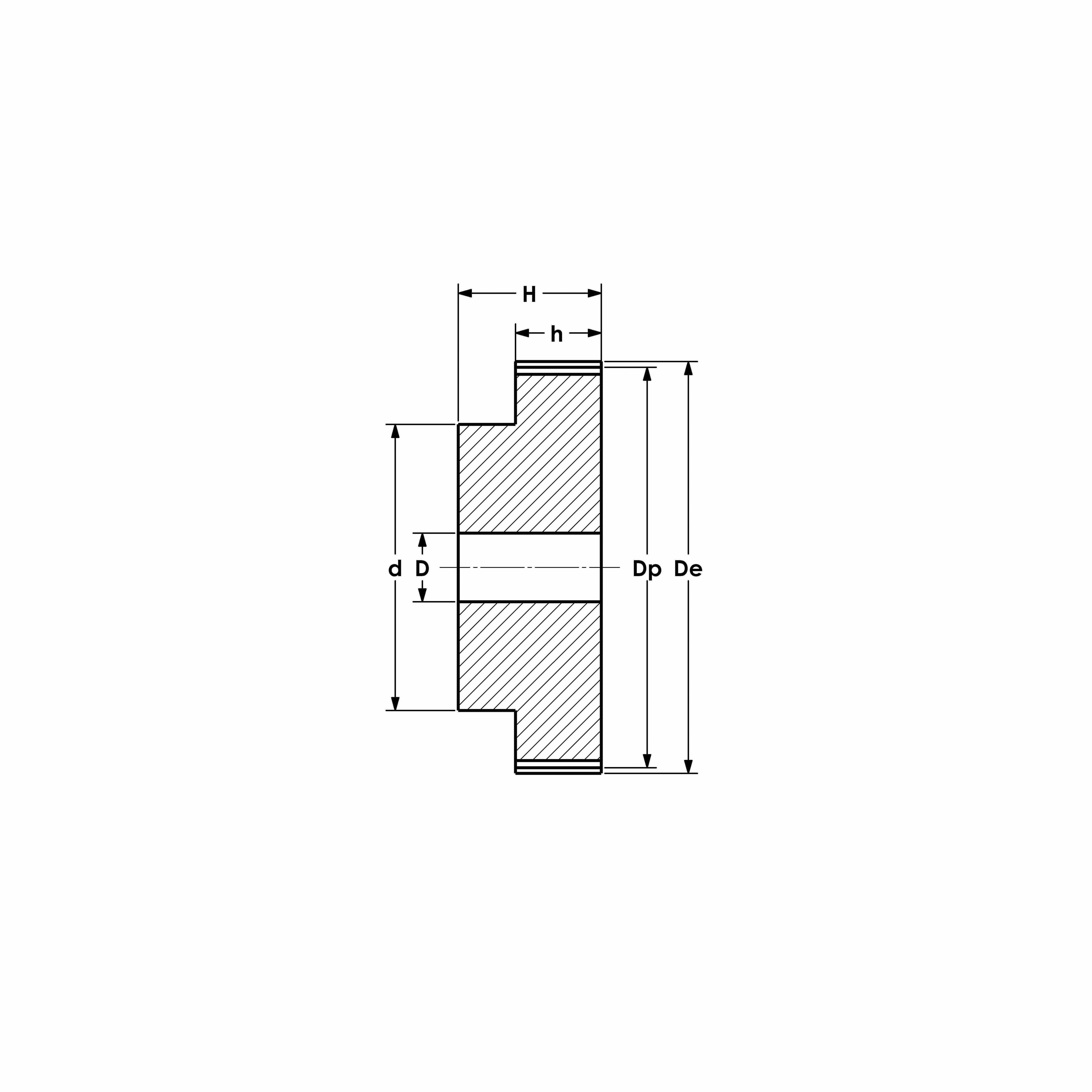

PTI Spur Gear, Straight Tooth Hub Type, 10 mm Bore Dia, 38 mm Outside Dia, 36 Teeth, 36 mm, 15 mm Face Width, 25 mm Hub Dia, 10 mm Hub Projection, 25 mm OAL, 20 deg Pressure Angle, C45 E Steel
| Bore Diameter | : | 10 mm |
| Face Width | : | 15 mm |
| Hub Diameter | : | 25 mm |
| Hub Projection | : | 10 mm |
| Material | : | C45 E Steel |
| Number of Teeth | : | 36 |
| Outside Diameter | : | 38 mm |
| Overall Length | : | 25 mm |
| Pitch Diameter | : | 36 mm |
| Pressure Angle | : | 20 deg |
| Type | : | Straight Tooth Hub Type |
- Module 1
