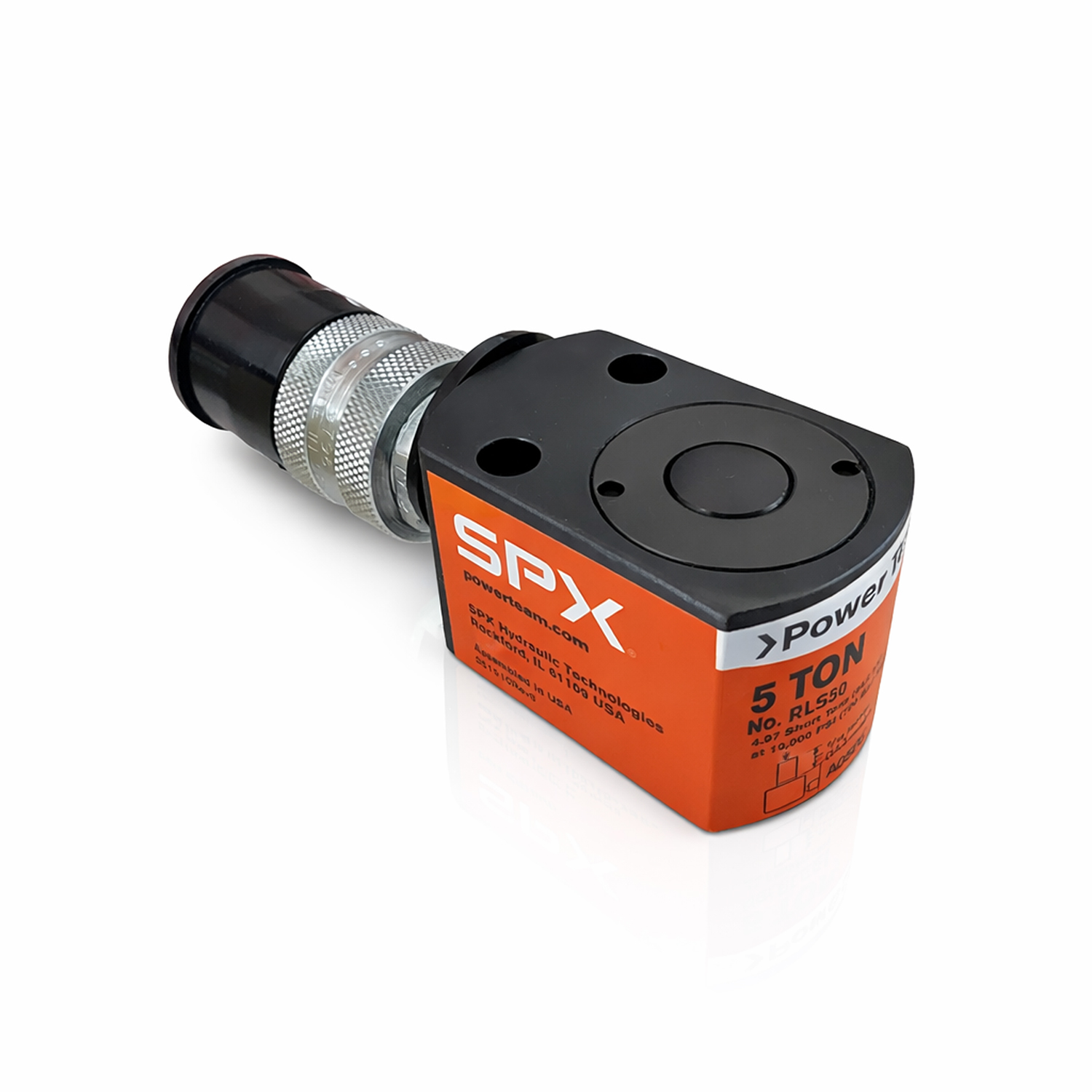

Power Team® RLS50 SPXRLS50
Power Team® RLS50 Low Height Low Profile Single Acting Spring Return Hydraulic Cylinder, 5 ton Capacity, 1-1/8 in Dia Bore, 9/16 in L Stroke, 1-5/8 in H Retract, 5/8 in Dia Rod, 10061 psi
- Manufacturer: SPX FLOW
- Brand Name: Power Team®
- Part Number: SPXRLS50
- MPN: RLS50
- UPC: 662536003186
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Power Team® Hydraulic Cylinder, Low Height Low Profile Single Acting Spring Return, Series: RLS, 5 ton, 1-1/8 in Dia Bore, 9/16 in Stroke, 1-5/8 in H Retract, Base Mount, 3/8 in NPTF, 5/8 in Rod Dia, 10061 psi, Steel Housing, 1-5/8 x 2-9/16 in OD
| Bore Size | : | 1-1/8 in Dia |
| Capacity | : | 5 ton |
| Dimensions | : | 1-5/8 x 2-9/16 in OD |
| Housing Material | : | Steel |
| Mounting Type | : | Base |
| Port Size | : | 3/8 in NPTF |
| Pressure Rating | : | 10061 psi |
| Retract | : | 1-5/8 in H |
| Rod Diameter | : | 5/8 in |
| Series | : | RLS |
| Stroke Length | : | 9/16 in |
| Type | : | Low Height Low Profile Single Acting Spring Return |
- Item Features 01=Ideal for confined areas from 1-5/8 to 4 in clearance
- Item Features 02=Cylinder body, piston and gland nut power Tech treated for corrosion and abrasion resistance
- Item Features 03=Standard domed piston rod (5-30 ton) or swivel cap (50 to 150 ton) minimize effects of off-center loading
- Item Features 04=Unique heavy duty spring provides fast piston return
- Item Features 05=A 9796 3/8 in NPTF female half coupler is standard with cylinder
- Item Features 06=Couplers on all cylinders, except RLS50, are angled upward for extra clearance
