Power Team® RLS200 SPXRLS200
  1. pin-int

Power Team® RLS200 SPXRLS200

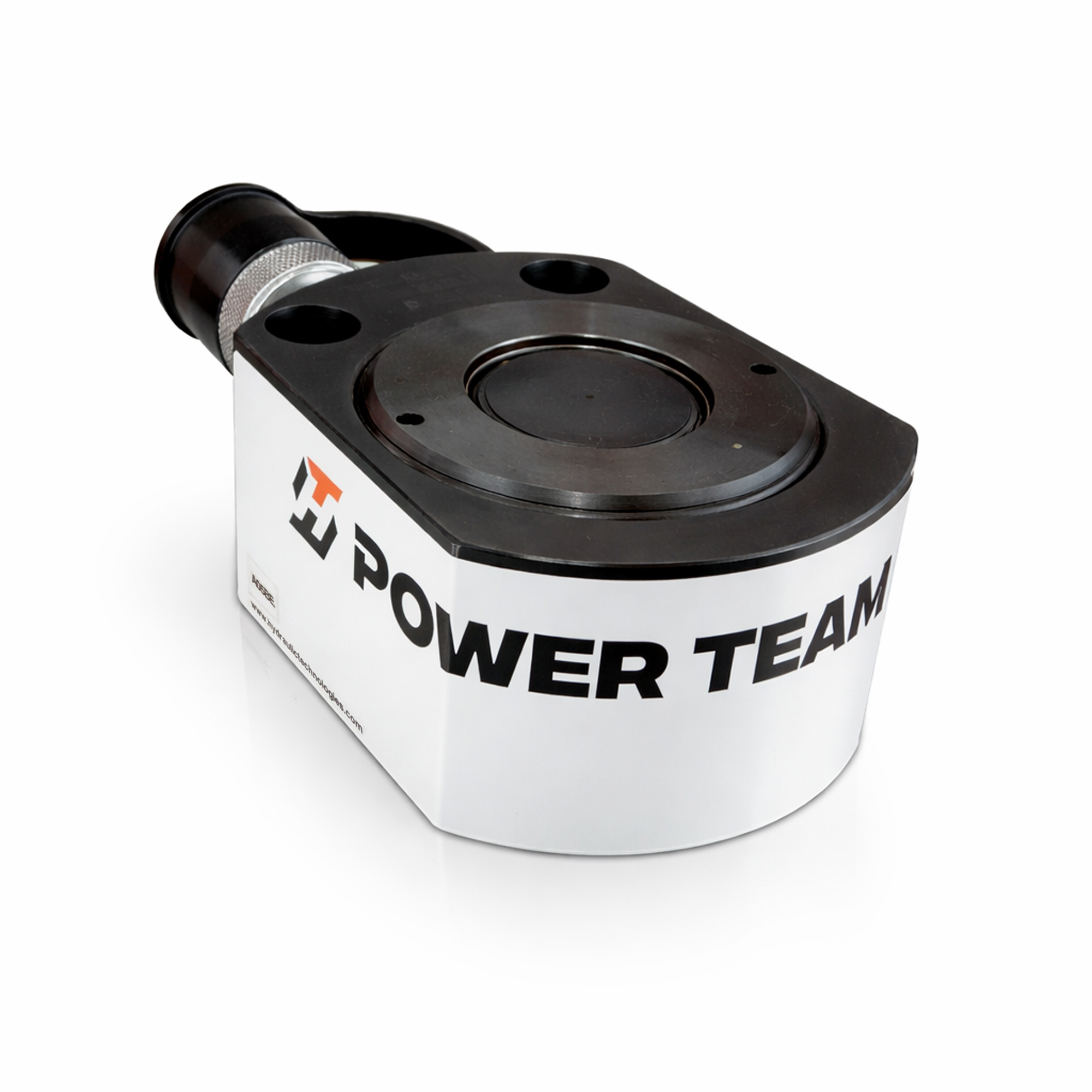

Power Team® RLS200 Heavy Duty Low Profile Welded Hydraulic Cylinder, 20 ton, 2-3/8 in Bore, 7/16 in L Stroke, 2 in H Retract, 1-1/8 in Dia Rod, 9029 psi

  • Manufacturer: SPX FLOW
  • Brand Name: Power Team®
  • Part Number: SPXRLS200
  • MPN: RLS200
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Power Team® Hydraulic Cylinder, Heavy Duty Low Profile Welded, Series: RLS, 20 ton Capacity, 2-3/8 in Bore, 7/16 in Stroke Length, 2 in H Retract, 21/32 in Port, 1-1/8 in Rod Diameter, 9029 psi Pressure, 3 x 4 in OD

Bore Size      :      2-3/8 in
Capacity      :      20 ton
Dimensions      :      3 x 4 in OD
Port Size      :      21/32 in
Pressure Rating      :      9029 psi
Retract      :      2 in H
Rod Diameter      :      1-1/8 in
Series      :      RLS
Stroke Length      :      7/16 in
Type      :      Heavy Duty Low Profile Welded
  • Item Features 01=Cylinder body, piston and gland nut power tech treated for corrosion and abrasion-resistance
  • Item Features 02=Standard domed piston rod (5 to 30 ton) or swivel cap (50 to 150 ton) minimize effects of off-center loading
  • Item Features 03=Unique heavy duty spring provides fast piston return
  • Item Features 04=A 9796 3/8 in NPTF female half coupler is standard with each cylinder
  • Item Features 05=Oil ports are 3/8 in NPTF
  • Item Features 06=Couplers on all cylinders are angled upward for extra clearance
