Power Team® RH2008 SPXRH2008

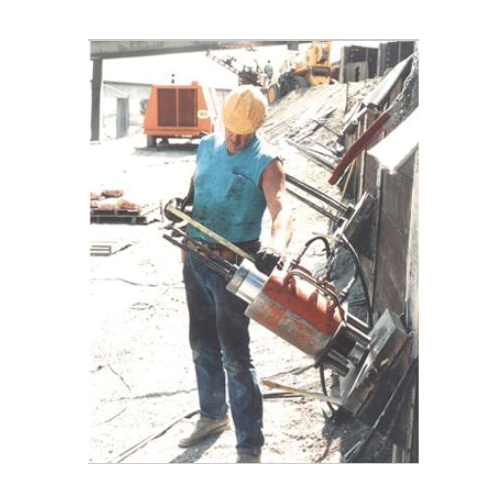

Power Team® RH2008 Center Hole Hydraulic Cylinder, 8 in L Stroke, 200 ton Push/75 ton Pull Max Force, Double Acting Function

  • Manufacturer: SPX FLOW
  • Brand Name: Power Team®
  • Part Number: SPXRH2008
  • MPN: RH2008
  • UPC: 662536003032
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Power Team® Hydraulic Cylinder, Center Hole, Series: RH Series, 8 in Stroke Length, 200 ton Push/75 ton Pull Maximum Force, Function: Double Acting, 40.45 sq-in Effective Area Clamped, 15.95 sq-in Effective Area Unclamped, 323.6 cu-in Oil Capacity Clamped, 127.6 cu-in Oil Capacity Unclamped, 24.063 in Extended Height, 16.063 in Retracted Height, 10000 psi Pressure, 10-3/4 in OD Dimensions

Dimensions      :      10-3/4 in OD
Effective Area Clamped      :      40.45 sq-in
Effective Area Unclamped      :      15.95 sq-in
Extended Height      :      24.063 in
Function      :      Double Acting
Maximum Force      :      200 ton Push/75 ton Pull
Oil Capacity Clamped      :      323.6 cu-in
Oil Capacity Unclamped      :      127.6 cu-in
Pressure Rating      :      10000 psi
Retracted Height      :      16.063 in
Series      :      RH Series
Stroke Length      :      8 in
Type      :      Center Hole
  • Item Features 01=Interchangeable piston head inserts provide versatility of application
  • Item Features 02=Built-in safety feature prevents over pressurization of the retract circuit
  • Item Features 03=Plated piston rod resists wear, superior packings provide high cycle life without leakage
  • Item Features 04=Corrosion resistant standpipe has Power Tech™ treatment
  • Item Features 05=Each cylinder has 9796 3/8 in NPTF female half couplers, the 60 ton thru 200 ton steel models are equipped with removable carrying handle
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Power_Team_RH1001_Specification_Sheet.pdf
