Power Team® RA306 SPXRA306

Power Team® RA306 RA Series Hydraulic Cylinder, 6 in L Stroke, 30 ton Max Force, Single Acting/Spring Return Function

  • Manufacturer: SPX FLOW
  • Brand Name: Power Team®
  • Part Number: SPXRA306
  • MPN: RA306
  • UPC: 662536215282
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Power Team® RA306 Hydraulic Cylinder, Series: RA Series, 6 in Stroke Length, 30 ton Maximum Force, Function: Single Acting/Spring Return, 6.49 sq-in Effective Area Clamped, 39.75 cu-in Oil Capacity Clamped, 17-1/2 in Extended Height, 11-3/8 in Retracted Height, 10000 psi Pressure, Aluminum, 4-1/4 in OD Dimensions

Dimensions      :      4-1/4 in OD
Effective Area Clamped      :      6.49 sq-in
Extended Height      :      17-1/2 in
Function      :      Single Acting/Spring Return
Material      :      Aluminum
Maximum Force      :      30 ton
Oil Capacity Clamped      :      39.75 cu-in
Pressure Rating      :      10000 psi
Retracted Height      :      11-3/8 in
Series      :      RA Series
Stroke Length      :      6 in
  • Half the weight of equal capacity steel cylinders
  • Aluminum body resists sparking in explosive environments
  • Hard coated aluminum piston rod and cylinder bore resist wear and corrosion
  • Grooved piston top helps keep the load from sliding on top of piston

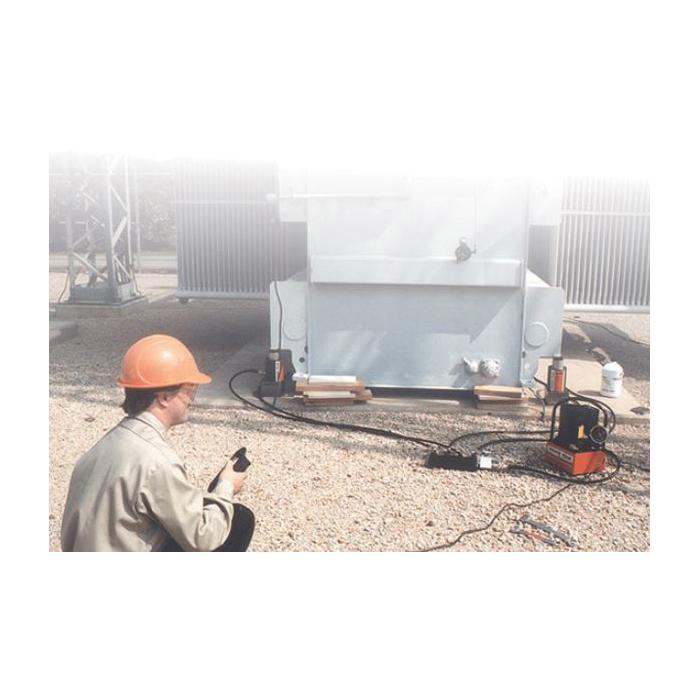

  • Designed for jacking and other non production operations
