Power Team® PH553C13 SPXPH553C13

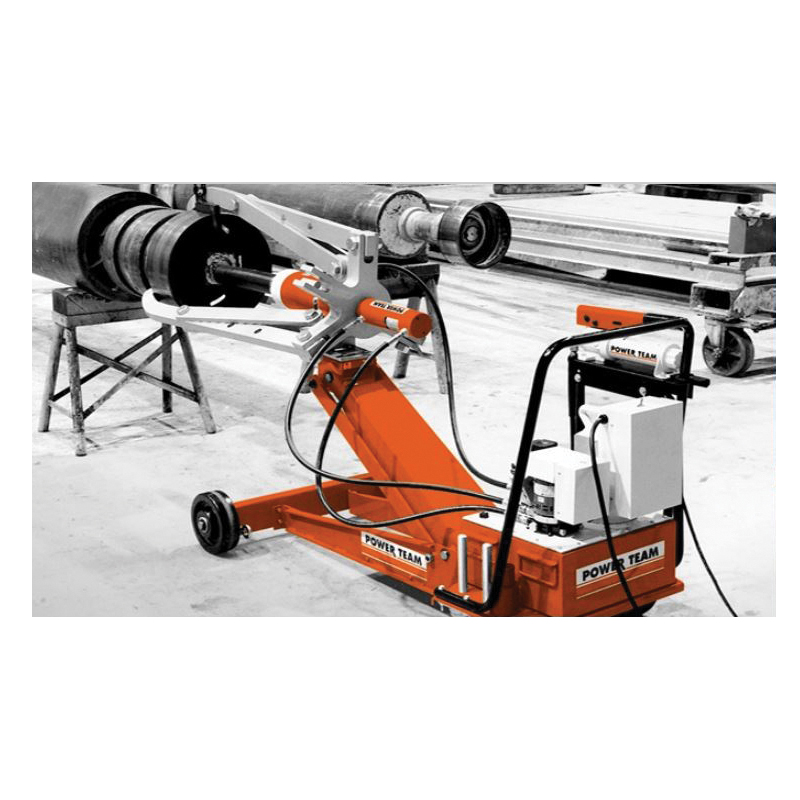

Power Team® Universal Puller, Bare Tool Bare Tool/Kit, Series: Enforcer PH Series, 55 ton Lifting Force, 13-1/4 in Stroke Length, 115 VAC, 60 Hz, 25 A Power Source, 90 in L x 48 in W x 50 in H Dimensions

• Item Features 01=Hydraulic lift system for easy, precise position of puller
• Item Features 02=Unique dual pump arrangement - low pressure pump positions, holds and opens jaws
• Item Features 03=The high pressure pump advances and retracts the pushing cylinder without releasing clamped jaws
• Item Features 04=Hydraulically actuated jaws
• Item Features 05=Cylinder moves in or out to provide a safe, secure grip on workpiece
• Item Features 06=Puller can be assembled in two or three jaw configurations
• Item Features 07=Choice of cylinder with a 6-1/4 or 13-1/4 in (159 mm or 337 mm) stroke
• Item Features 08=Self-centering - center cylinder on work, puller jaws will automatically grip work evenly
• Item Features 09=Super Grip-O-Matic® feature means the harder the pull, the tighter the puller jaws grip
• Item Features 10=No chains or cages required to keep puller jaws from slipping or springing off the part being pulled
• Item Features 11=Guards at pinch points protect operator
• Item Features 12=Cart's swivel casters give ease of mobility
• Item Features 13=Large wheels make movement of cart easy
• Item Features 14=Puller can be mounted on cart 90 deg to right or left of puller cart centerline, permitting use in tight quarters, such as between machinery

• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Power_Team_PH553C_Line_Drawing.pdf
