Power Team® PH1002-220 SPXPH1002-220

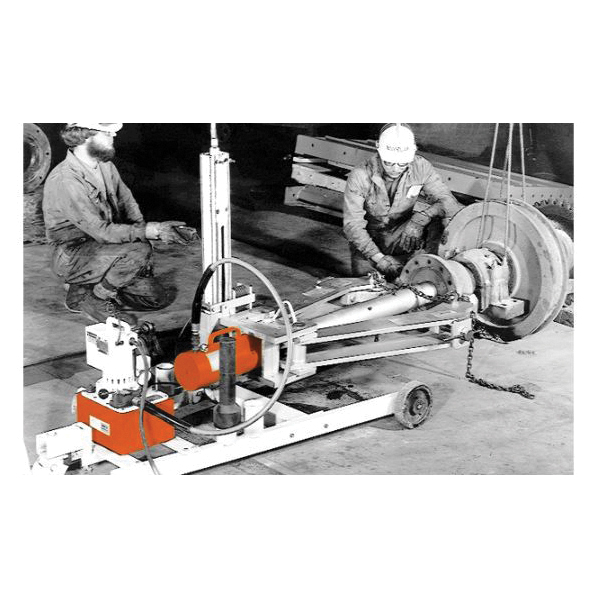

Power Team® Universal Puller, 2-Jaw, Bare Tool Bare Tool/Kit, Series: PH Series, 100 ton Lifting Force, 12 to 36 in Stroke Length, 220 VAC, 50 Hz Power Source, 94 in L x 48 in W x 36 in H Dimensions

• Item Features 01=Adjustable jaws mean they always pull on a flat surface
• Item Features 02=Retaining chain holds jaws in place during positioning
• Item Features 03=Grip-O-Matic® feature means jaws grip progressively tighter as more pulling force is applied
• Item Features 04=100 ton hydraulic cylinder is single acting, spring return type with a maximum working pressure of 10000 psi (700 bar)
• Item Features 05=Lifting bracket allows puller to be lifted if the workpiece center is more than 36 in (914 mm) off the floor
• Item Features 06=Adjusting screw allows operator to move vertical position of the puller
• Item Features 07=Spring loaded feature means Enforcer 100 will align itself on uneven pulls
• Item Features 08=Hydraulic pump is a two stage, high pressure unit controlled by remote hand switch with 25 ft (7.6 m) cord
• Item Features 09=Tow bar provides puller with plenty of mobility
• Item Features 10=Pushing adapters have a diameter of 4-1/8 in and 2-1/2 in (105 and 63.5 mm)

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Power_Team_PH1002_220_Specification_Sheet.pdf
