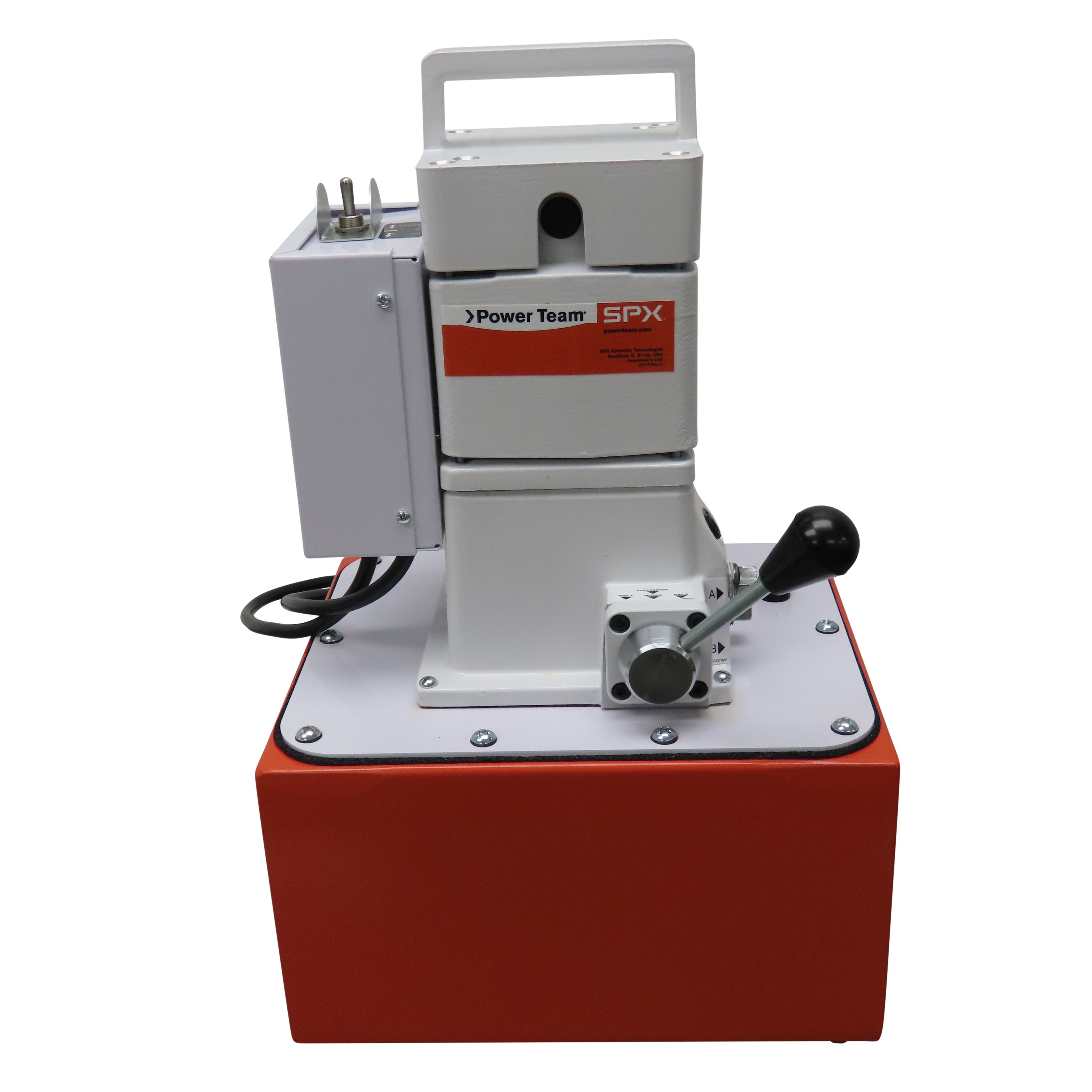

Power Team® PE184-2 SPXPE184-2
Power Team® PE184-2 Portable Electric Hydraulic Pump, 1/2 hp, 2 Stages, 104 cu-in Reservoir, 18 cu-in/min Flow Rate, 0 to 10000 psi Pressure
- Manufacturer: SPX FLOW
- Brand Name: Power Team®
- Part Number: SPXPE184-2
- MPN: PE184-2
- UPC: 662536001717
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Power Team® Electric Hydraulic Pump, Portable, Series: PE18, 2 Stage, 104 cu-in Reservoir, 1/2 hp, 18 cu-in/min Flow Rate, 0 to 10000 psi Pressure, 110/115 VAC, 10.2 A, 50/60 Hz Frequency, 12000 rpm Speed, 11-1/2 in Overall Length, 9-1/2 in Overall Width, 18-1/2 in Overall Height
| Amperage Rating | : | 10.2 A |
| Flow Rate | : | 18 cu-in/min |
| Frequency Rating | : | 50/60 Hz |
| Horsepower | : | 1/2 hp |
| Number of Stages | : | 2 |
| Overall Height | : | 18-1/2 in |
| Overall Length | : | 11-1/2 in |
| Overall Width | : | 9-1/2 in |
| Pressure Rating | : | 0 to 10000 psi |
| Reservoir Capacity | : | 104 cu-in |
| Series | : | PE18 |
| Speed | : | 12000 rpm |
| Type | : | Portable |
| Voltage Rating | : | 110/115 VAC |
- Vanguard Jr.® pumps provide two speed high performance in a lightweight, compact package
- Gauge port provided on pump
- Equipped with 1/2 hp (0.37 kW), 115 volt, 60/50 Hz single phase motor that starts under load, even at reduced voltage
- Low amperage draw permits use with smaller generators and low amperage circuits
- Metal reservoir on all models
Line Drawing
