Power Team® PA6DM-1 SPXPA6DM-1
  1. pin-int

Power Team® PA6DM-1 SPXPA6DM-1

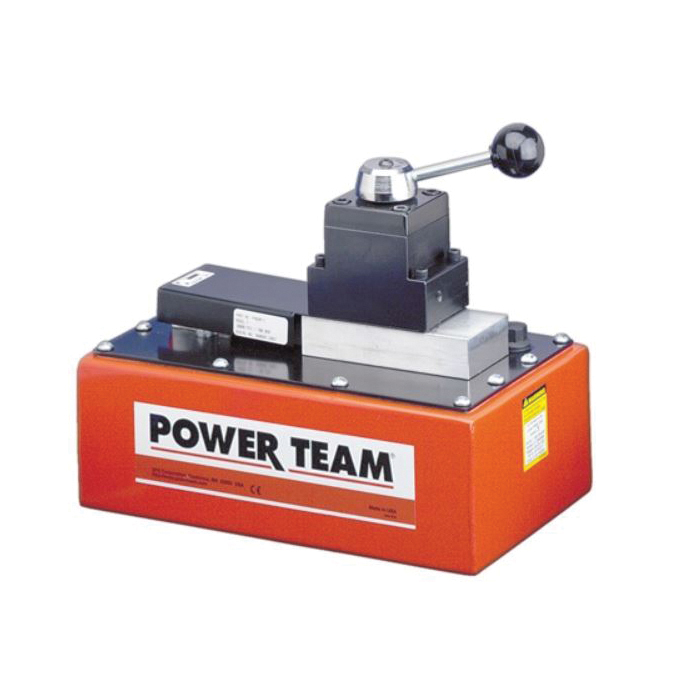

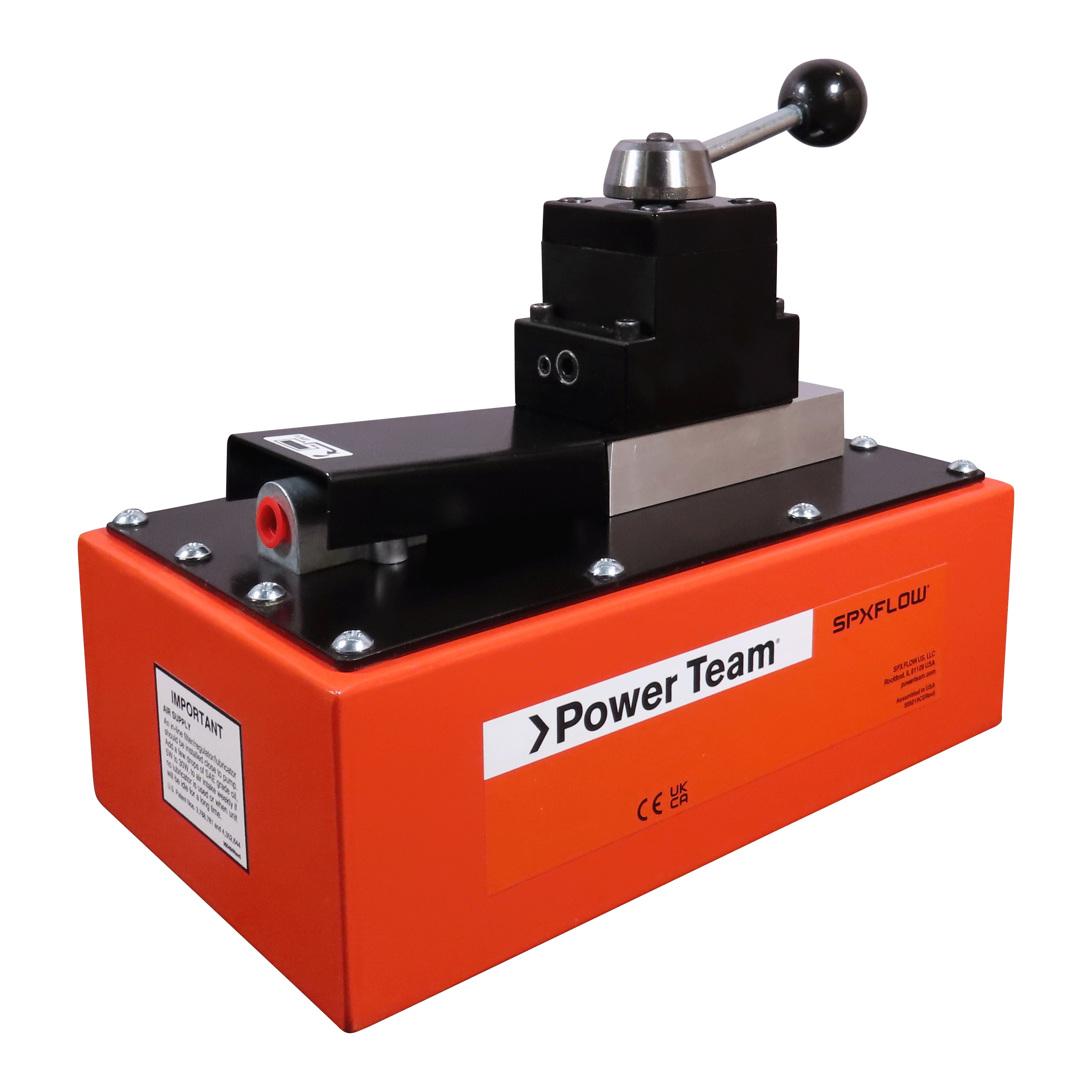

Power Team® PA6DM-1 Air Driven Double Acting Hydraulic Pump, 6 cu-in/min Air Flow, 3/8 in FNPT Fluid Port

  • Manufacturer: SPX FLOW
  • Brand Name: Power Team®
  • Part Number: SPXPA6DM-1
  • MPN: PA6DM-1
  • UPC: 662536296984
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Power Team® Hydraulic Pump, Air Driven Double Acting, Series: PA6D, 6 cu-in/min Air Flow, 3/8 in FNPT Fluid Port, 185 cu-in Oil, 1 gal Reservoir, 40 to 120 psi Air, 85 dBA at 10000 psi Sound Level, 7-3/8 in Length, 12-5/8 in Width, 11 in Height

Air Flow Rate      :      6 cu-in/min
Air Pressure      :      40 to 120 psi
Fluid Port Size      :      3/8 in FNPT
Height      :      11 in
Length      :      7-3/8 in
Oil Capacity      :      185 cu-in
Reservoir Capacity      :      1 gal
Series      :      PA6D
Sound Level      :      85 dBA at 10000 psi
Type      :      Air Driven Double Acting
Width      :      12-5/8 in
  • Item Features 01=Compact, lightweight and portable single speed pumps for driving single acting cylinders
  • Item Features 02=Internal relief valve protects circuit components, air inlet filter protects motor
  • Item Features 03=Serviceable pump motor is not a throw away, providing economical repair
  • Item Features 04=Permanently vented reservoir cap
  • Item Features 05=Base model pump with 1 gal metal reservoir
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Power_Team_PA6D2_Specification_Sheet.pdf
