Power Team® hand pumps, with the angled fill port, have a built in relief valve protection system. This system is designed to protect over pressurization of the reservoir from sudden back pressure. This system also works as a seal to prevent oil leaks.

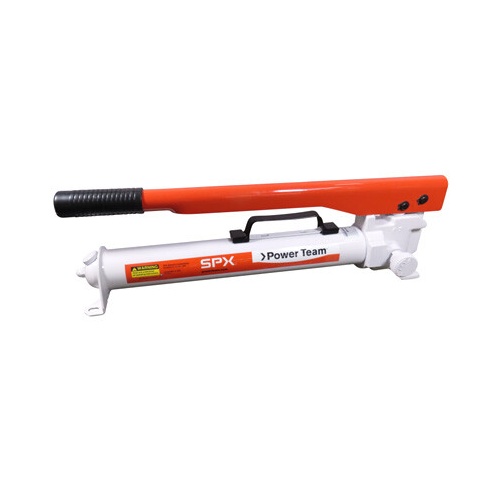

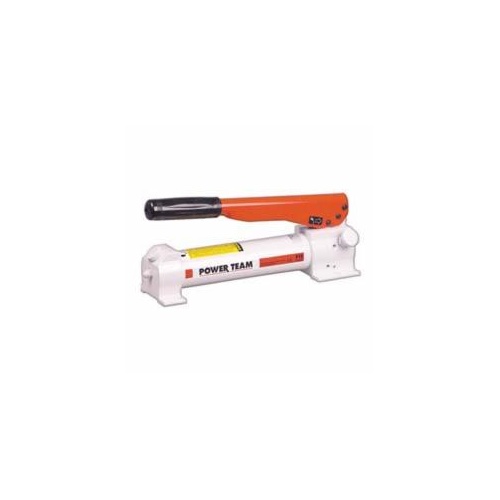

Power Team® Hydraulic Hand Pump, 2-Speed Manual, Series: P, 55 cu-in Tank, Oil Fluid, 325 to 10000 psi, 3/8 in NPTF, 23 in Overall Length, 4-3/4 in Overall Width, 7 in Overall Height
| Fluid Type | : | Oil |
| Overall Height | : | 7 in |
| Overall Length | : | 23 in |
| Overall Width | : | 4-3/4 in |
| Port Size | : | 3/8 in NPTF |
| Pressure Rating | : | 325 to 10000 psi |
| Series | : | P-Series |
| Tank Capacity | : | 55 cu-in |
| Type | : | 2-Speed Manual |
- Fill cap seal acts as safety valve preventing over-pressurizing of reservoir
- All metal construction won't burn through in welding environments
- Formed metal handle provides rigidity, and reduces operator fatigue with grip
- Convenient fill port enables pumps to be filled in a horizontal or vertical position, excluding P12
- Large valve knob gives added control for slowly metering loads down
- STEEL HAND PUMPS BEST SUITED FOR MRO APPLICATIONS
