Power Team® hand pumps, with the angled fill port, have a built in relief valve protection system. This system is designed to protect over pressurization of the reservoir from sudden back pressure. This system also works as a seal to prevent oil leaks.

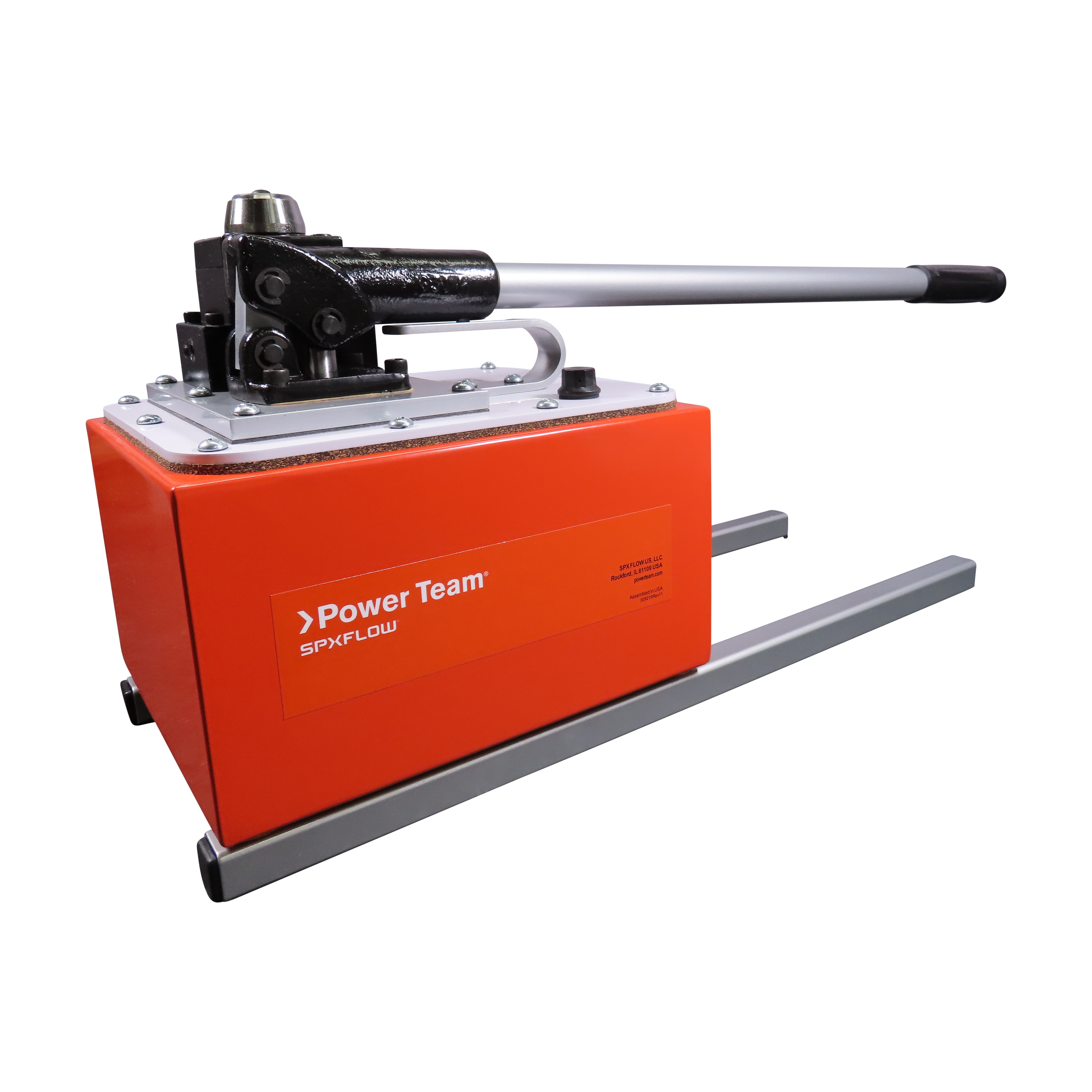

Power Team® Hydraulic Hand Pump, 2-Speed Manual, Series: P, 2.5 gal Tank, Oil Fluid, 325 to 10000 psi, 3/8 in NPTF, 29-1/4 in Overall Length, 9-1/2 in Overall Width, 11-1/8 in Overall Height
| Fluid Type | : | Oil |
| Overall Height | : | 11-1/8 in |
| Overall Length | : | 29-1/4 in |
| Overall Width | : | 9-1/2 in |
| Port Size | : | 3/8 in NPTF |
| Pressure Rating | : | 325 to 10000 psi |
| Series | : | P-Series |
| Tank Capacity | : | 2.5 gal |
| Type | : | 2-Speed Manual |
- Item Features 01=Rugged all metal construction for strength and durability that won't burn through in welding environments
- Item Features 02=Heavy duty, formed metal handle provides less flex, and less operator fatigue than round or composite handles
- Item Features 03=Fill cap seal acts as safety valve preventing over-pressurizing of reservoir
- Item Features 04=Relief valve inboard of check valve prevents loads from drifting down
- Item Features 05=Large valve knob gives added control for slowly metering loads down
- Item Features 06=Pump includes 2 way valve low pressure high pressure
