Power Team® P159 SPXP159
  1. pin-int

Power Team® P159 SPXP159

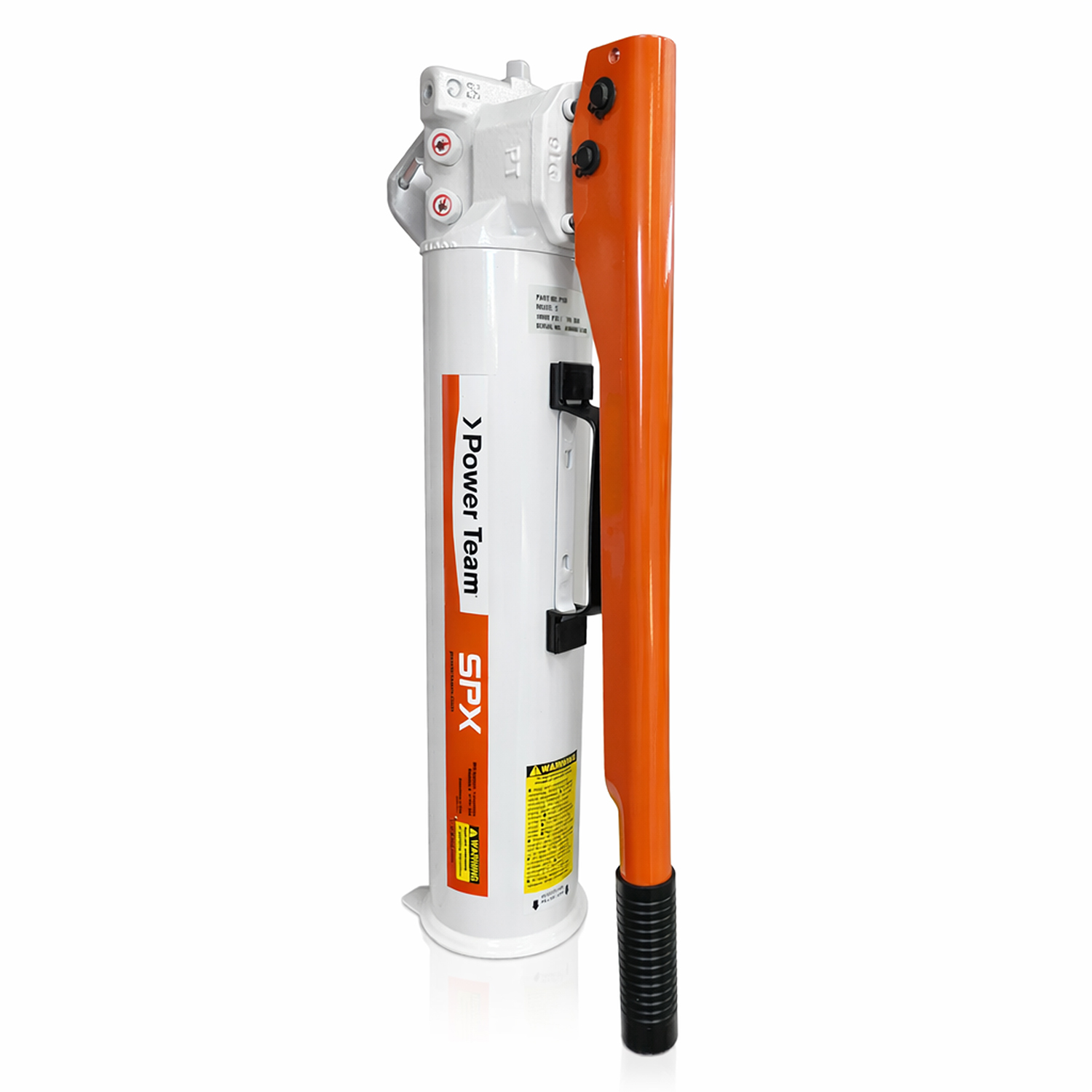

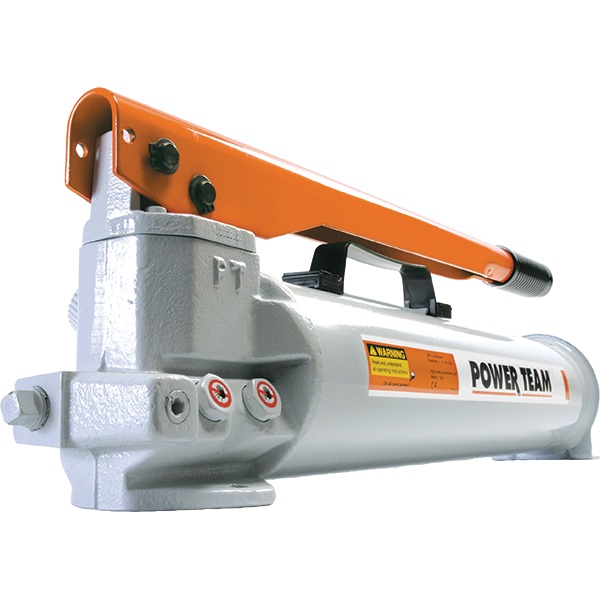

Power Team® P159 P-Series 2-Speed Manual Hydraulic Hand Pump, 152 cu-in Tank

  • Manufacturer: Hydraulic Technologies
  • Brand Name: Power Team®
  • Part Number: SPXP159
  • MPN: P159
  • UPC: 662536002554
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Power Team® hand pumps, with the angled fill port, have a built in relief valve protection system. This system is designed to protect over pressurization of the reservoir from sudden back pressure. This system also works as a seal to prevent oil leaks.

Power Team® Hydraulic Hand Pump, 2-Speed Manual, Series: P, 152 cu-in Tank, Oil Fluid, 325 to 10000 psi, 3/8 in NPTF, 22-3/4 in Overall Length, 3-7/8 in Overall Width, 7-3/4 in Overall Height

Fluid Type      :      Oil
Overall Height      :      7-3/4 in
Overall Length      :      22-3/4 in
Overall Width      :      3-7/8 in
Port Size      :      3/8 in NPTF
Pressure Rating      :      325 to 10000 psi
Series      :      P-Series
Tank Capacity      :      152 cu-in
Type      :      2-Speed Manual
  • Fill cap seal acts as safety valve to prevent over-pressurizing of reservoir
  • Rugged all metal construction for strength and durability that won't burn through in welding environments
  • Heavy-duty, formed metal handle provides rigidity, and reduces operator fatigue with grip
  • Convenient oil fill ports
  • Relief valve inboard of check valve prevents loads from drifting down
  • Large valve knob gives added control for slowly metering loads down. HEAVY-DUTY STEEL HAND PUMPS HOLD UP TO THE MOST DEMANDING APPLICATIONS
