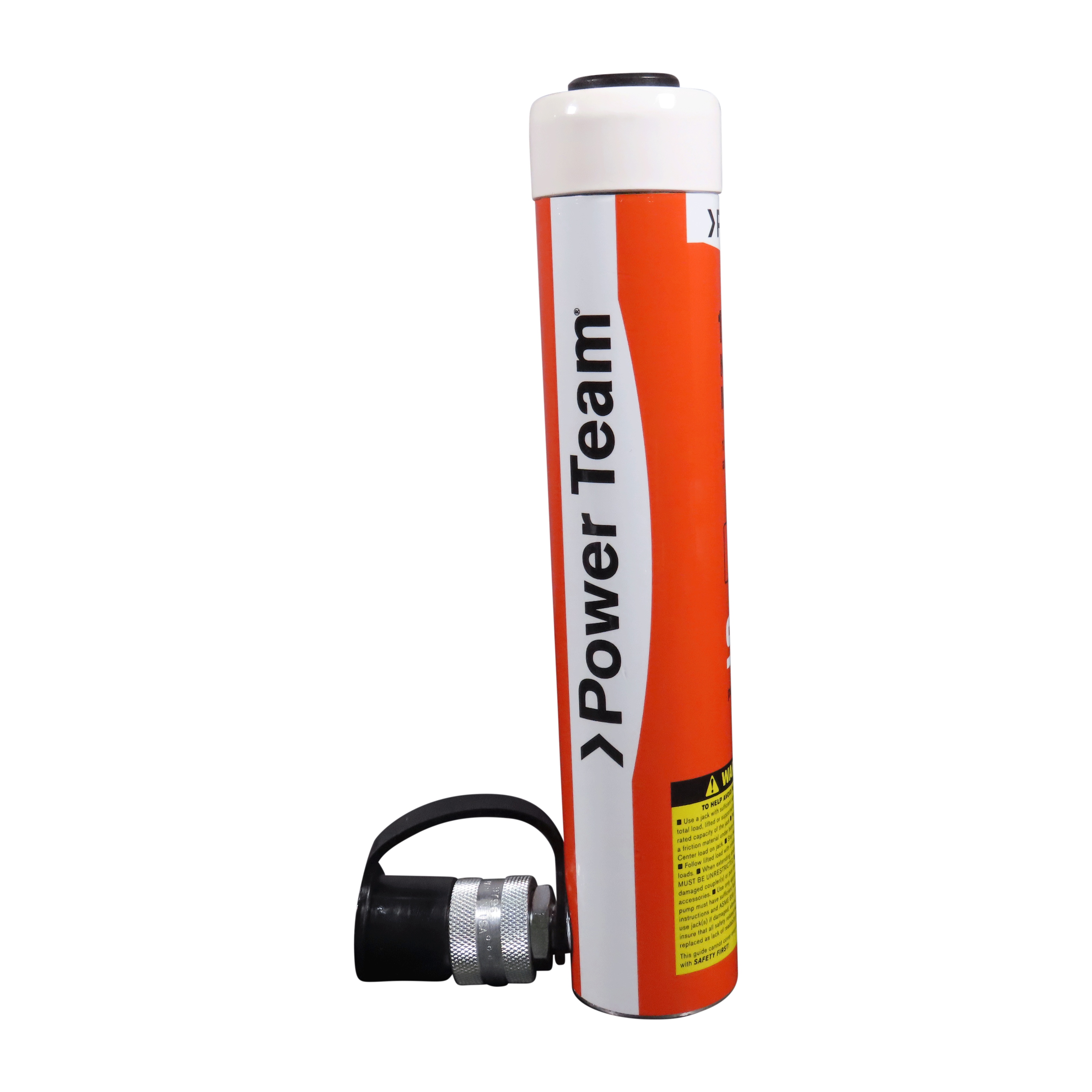

Power Team® C108C SPXC108C
Power Team® C108C C Series General Purpose High Quality Single Action Hydraulic Cylinder, 10 ton Capacity, 1-11/16 in Bore, 8-1/8 in L Stroke, 11-3/4 in H Retract, 1-1/2 in Dia Rod, 8948 psi Pressure
- Manufacturer: SPX FLOW
- Brand Name: Power Team®
- Part Number: SPXC108C
- Alt Part Number: C108C-Q7984
- MPN: C108C
- UPC: 662536592956
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Power Team®, C108C, Hydraulic Cylinder, General Purpose High Quality Single Action, Series: C Series, 10 ton Capacity, 1-11/16 in Bore, 8-1/8 in Stroke Length, 11-3/4 in H Retract, Surface Mounting, 3/4 in Port, 1-1/2 in Rod Diameter, 8948 psi Pressure, Steel Housing Material, 2-1/4 in OD Dimensions
| Bore Size | : | 1-11/16 in |
| Capacity | : | 10 ton |
| Dimensions | : | 2-1/4 in OD |
| Housing Material | : | Steel |
| Mounting Type | : | Surface |
| Port Size | : | 3/4 in |
| Pressure Rating | : | 8948 psi |
| Retract | : | 11-3/4 in H |
| Rod Diameter | : | 1-1/2 in |
| Series | : | C Series |
| Stroke Length | : | 8-1/8 in |
| Type | : | General Purpose High Quality Single Action |
- Solid steel cylinder body for durability
- Base mounting holes standard on 5 through 55 ton cylinders
- Rugged and high quality general-purpose cylinder
- Aluminum bronze bearing reduces wear caused by off-center loads
- Maximum sized springs speed piston return and increase spring life
- Collar threads are standard on all C-series models, simplifying fixturing applications
- Removable rubber boots protect collar threads during transport and storage
- Chrome plated piston rod resists wear and corrosion
- A 3/8 in NPTF female half coupler is standard
