Power Team® C106CBT SPXC106CBT
  1. pin-int

Power Team® C106CBT SPXC106CBT

Power Team® C106CBT CBT Threaded End Spring-Return Single-Acting Hydraulic Cylinder, 10 ton Load, 11-1/2 in H Min, 17.63 in H Max, 6.13 in

  • Manufacturer: Hydraulic Technologies
  • Brand Name: Power Team®
  • Part Number: SPXC106CBT
  • MPN: C106CBT
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Power Team® Hydraulic Cylinder, Threaded End Spring-Return Single-Acting, Series: CBT, 10 ton Load, 11-1/2 in Minimum Height, 17.63 in Maximum Height, 6.13 in Piston Stroke, 2-1/4 in Base Width

Base Width      :      2-1/4 in
Load Capacity      :      10 ton
Maximum Height      :      17.63 in
Minimum Height      :      11-1/2 in
Piston Stroke      :      6.13 in
Series      :      CBT
Type      :      Threaded End Spring-Return Single-Acting
  • Aluminum bronze bearing reduces wear caused by aluminum bronze bearing reduces wear caused by off-center loads

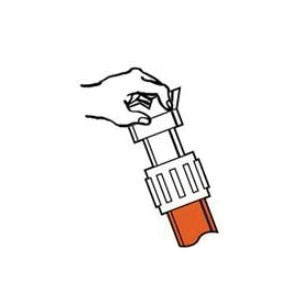

  • Removable rubber boots protect collar threads during transport and storage
  • Solid steel cylinder body for durability
  • Chrome plated piston rod resists wear and corrosion
  • Wide range of accessories available that mount onto the piston rod, collar, or base
  • Base mounting holes standard on 5 through 55 ton cylinders and optional on 75 and 100 ton cylinders

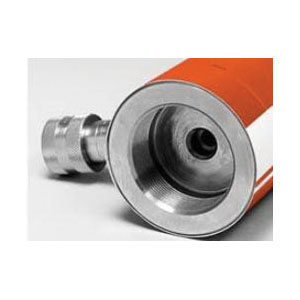

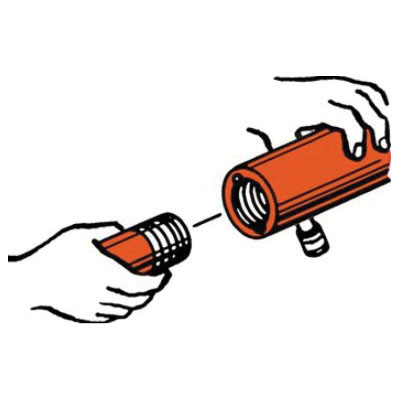

  • THREADED PISTON ROD END AND BASE THREADS ACCOMMODATE ACCESSORIES AND ADAPTERS Threaded cylinder collars, piston rod ends, and internal
  • A 9796 3/8 NPTF female half coupler is standard with
  • Oil port threads are 3/8 in NPTF
  • Factory accessories are do not de-rate tonnage
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Power_Team_C1010CBT_Catalog.pdf
  • pdfLine Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Power_Team_C1010CBT_Line_Drawing.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Power_Team_C1010CBT_Manual.pdf
