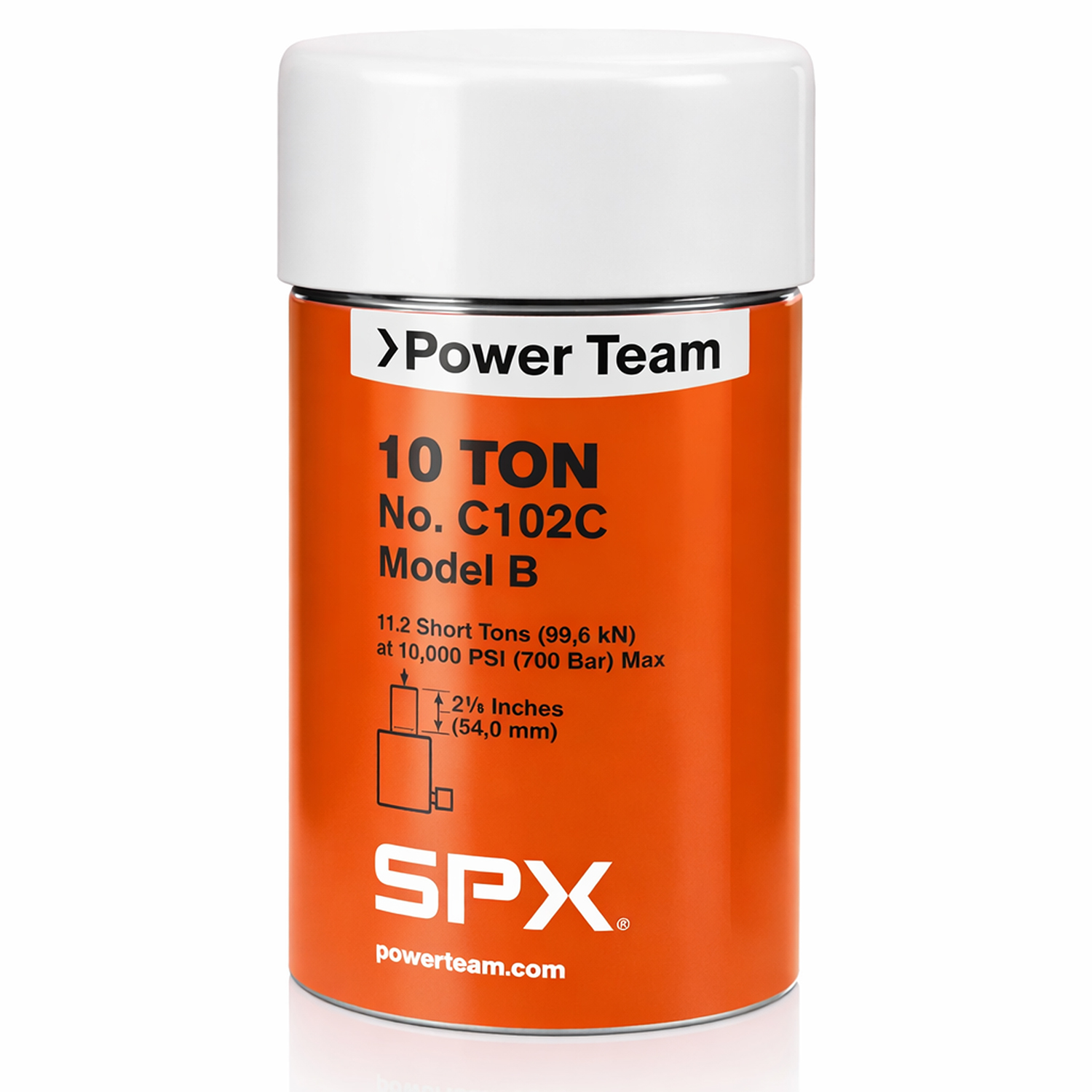

Power Team® C102C SPXC102C
Power Team® C102C C Series General Purpose Single Acting Spring Return Hydraulic Cylinder, 10 ton Capacity, 1-11/16 in Dia Bore, 2-1/8 in L Stroke, 4-3/4 in H Retract, 1-1/2 in Dia Rod, 8948 psi
- Manufacturer: SPX FLOW
- Brand Name: Power Team®
- Part Number: SPXC102C
- MPN: C102C
- UPC: 662536000147
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Power Team® Hydraulic Cylinder, General Purpose Single Acting Spring Return, Series: C, 10 ton, 1-11/16 in Dia Bore, 2-1/8 in Stroke, 4-3/4 in H Retract, Base Mount, 3/8 in NPTF, 1-1/2 in Rod Dia, 8948 psi, Solid Steel Housing, 2-1/4 in OD
| Bore Size | : | 1-11/16 in Dia |
| Capacity | : | 10 ton |
| Dimensions | : | 2-1/4 in OD |
| Housing Material | : | Solid Steel |
| Mounting Type | : | Base |
| Port Size | : | 3/8 in NPTF |
| Pressure Rating | : | 8948 psi |
| Retract | : | 4-3/4 in H |
| Rod Diameter | : | 1-1/2 in |
| Series | : | C Series |
| Stroke Length | : | 2-1/8 in |
| Type | : | General Purpose Single Acting Spring Return |
- Item Features 01=Rugged and high quality general purpose cylinder
- Item Features 02=Aluminum bronze bearing reduces wear caused by off-center loads
- Item Features 03=Maximum sized springs speed piston return and increase spring life
- Item Features 04=Solid steel cylinder body for durability
- Item Features 05=Chrome plated piston rod resists wear and corrosion
- Item Features 06=Wide range of accessories available to thread onto piston rod, collar, or onto cylinder base
- Item Features 07=Base mounting holes standard on 5 through 55 ton cylinders, optional on 75 and 100 ton cylinders
