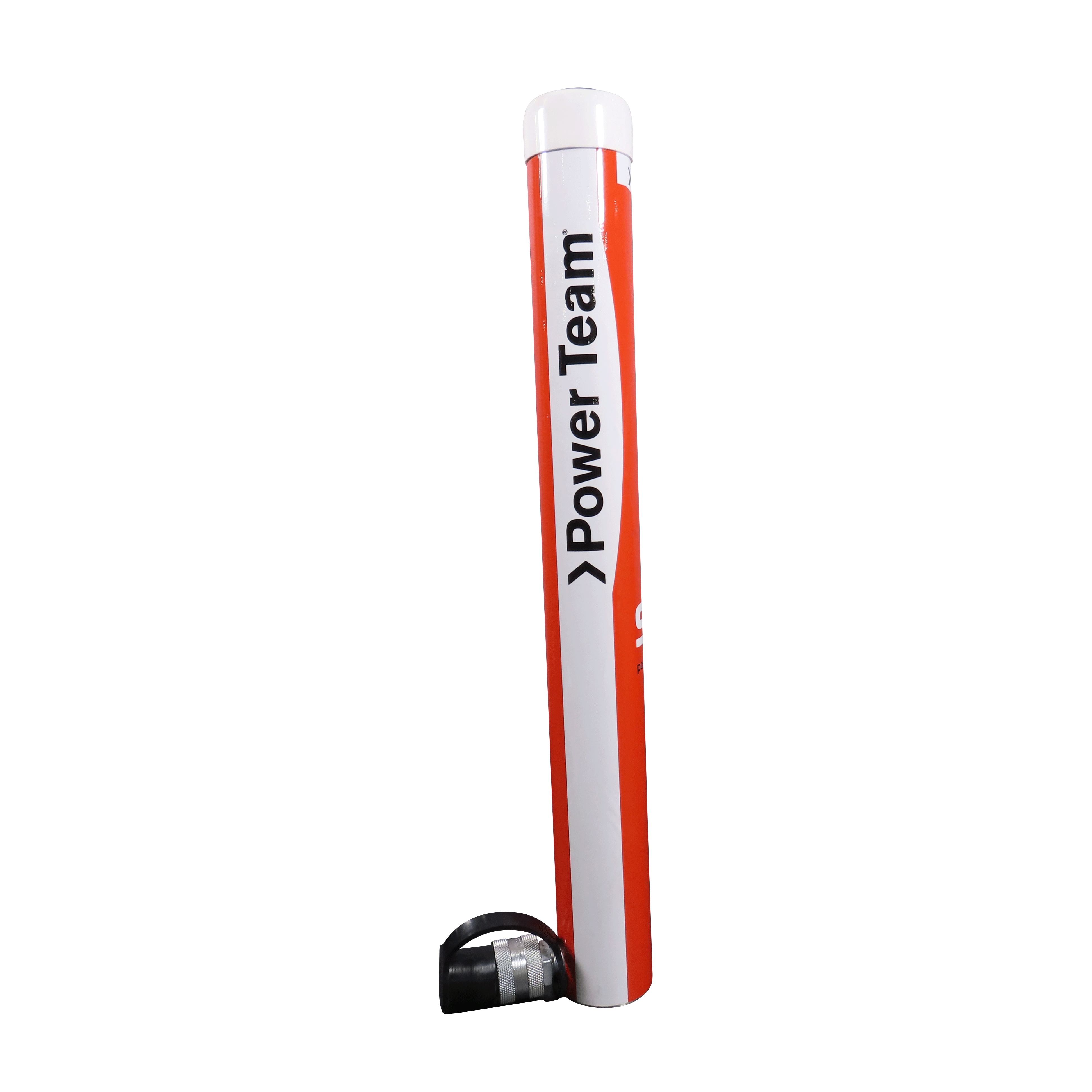

Power Team® C1016C SPXC1016C
Power Team® C1016C High Quality Rugged Single Acting Spring Return Hydraulic Cylinder, 10 ton Capacity, 1.69 in Bore, 16 in L Stroke, 20-1/2 in H Retract, 1-1/2 in Dia Rod, 10000 psi Pressure
- Manufacturer: SPX FLOW
- Brand Name: Power Team®
- Part Number: SPXC1016C
- MPN: C1016C
- UPC: 662536367936
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Power Team® Hydraulic Cylinder, High Quality Rugged Single Acting Spring Return, Series: C Series, 10 ton Capacity, 1.69 in Bore, 16 in Stroke Length, 20-1/2 in H Retract, Base Mounting, 1-1/2 in Rod Diameter, 10000 psi Pressure, Solid Steel Housing Material, 2-1/4 in Dia x 36-1/2 in H Dimensions
| Bore Size | : | 1.69 in |
| Capacity | : | 10 ton |
| Dimensions | : | 2-1/4 in Dia x 36-1/2 in H |
| Housing Material | : | Solid Steel |
| Mounting Type | : | Base |
| Pressure Rating | : | 10000 psi |
| Retract | : | 20-1/2 in H |
| Rod Diameter | : | 1-1/2 in |
| Series | : | C Series |
| Stroke Length | : | 16 in |
| Type | : | High Quality Rugged Single Acting Spring Return |
- Item Features 01=Aluminum bronze bearing reduces wear caused by off-center loads
- Item Features 02=Maximum sized springs speed piston return and increase spring life
- Item Features 03=Solid steel cylinder body for durability
- Item Features 04=Chrome plated piston rod resists wear and corrosion
- Item Features 05=Base mounting holes standard on 5 to 55 ton cylinders
- Item Features 06=A 3/8 in NPTF female half coupler is standard
Instruction/Installation Manual
