Power Team® C1010C-PTP SPXC1010C-PTP

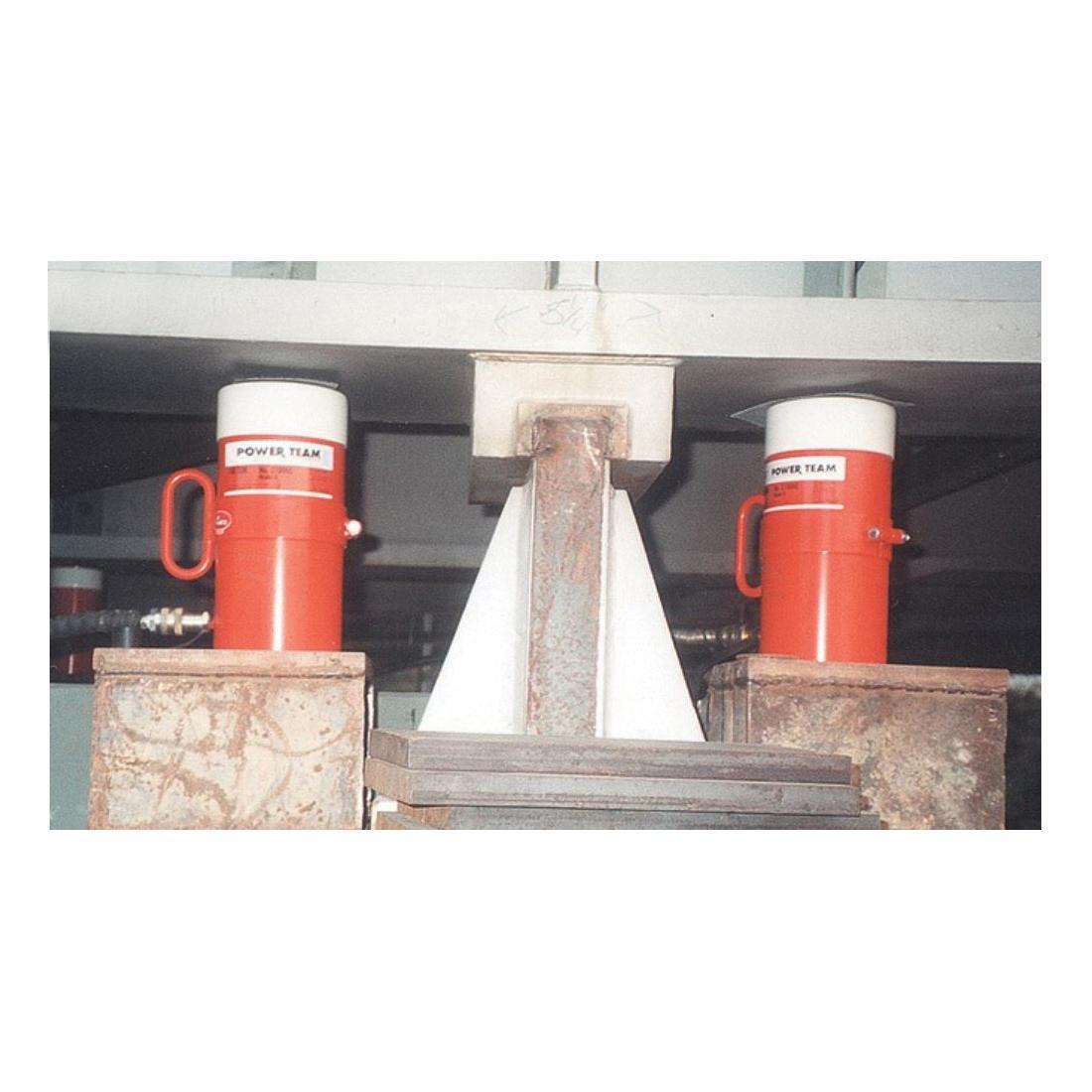

Power Team® C1010C-PTP C Series Hydraulic Cylinder, 10.13 in L Stroke, 10 ton Max Force, Single Acting/Spring Return Function

  • Manufacturer: SPX FLOW
  • Brand Name: Power Team®
  • Part Number: SPXC1010C-PTP
  • MPN: C1010C-PTP
  • UPC: 662536274838
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

Power Team®, C1010C-PTP, Hydraulic Cylinder, Series: C Series, 10.13 in Stroke Length, 10 ton Maximum Force, Function: Single Acting/Spring Return, 2.236 sq-in Effective Area Clamped, 22.6 cu-in Oil Capacity Clamped, 23.88 in Extended Height, 13-3/4 in Retracted Height, 5/16-18 Body Thread, 8948 psi Pressure, 1.56 in Diameter Mounting Hole, Steel, 2-1/4 in OD Dimensions

Body Thread Size      :      5/16-18
Dimensions      :      2-1/4 in OD
Effective Area Clamped      :      2.236 sq-in
Extended Height      :      23.88 in
Function      :      Single Acting/Spring Return
Material      :      Steel
Maximum Force      :      10 ton
Mounting Hole Diameter      :      1.56 in
Oil Capacity Clamped      :      22.6 cu-in
Pressure Rating      :      8948 psi
Retracted Height      :      13-3/4 in
Series      :      C Series
Stroke Length      :      10.13 in
  • Aluminum bronze bearing reduces wear caused by off-center loads
  • Maximum sized springs speed piston return and increase spring life
  • Collar threads are standard on all C-series models, simplifying fixturing applications
  • Removable rubber boots protect collar threads during transport and storage
  • Chrome plated piston rod resists wear and corrosion
  • A 3/8 in NPTF female half coupler is standard
