Power Team® 938 SPX938
  1. pin-int

Power Team® 938 SPX938

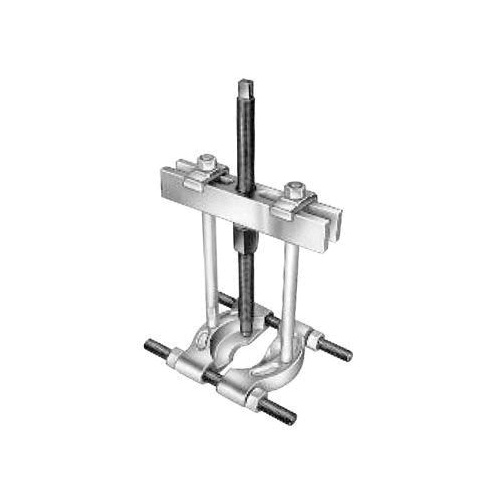

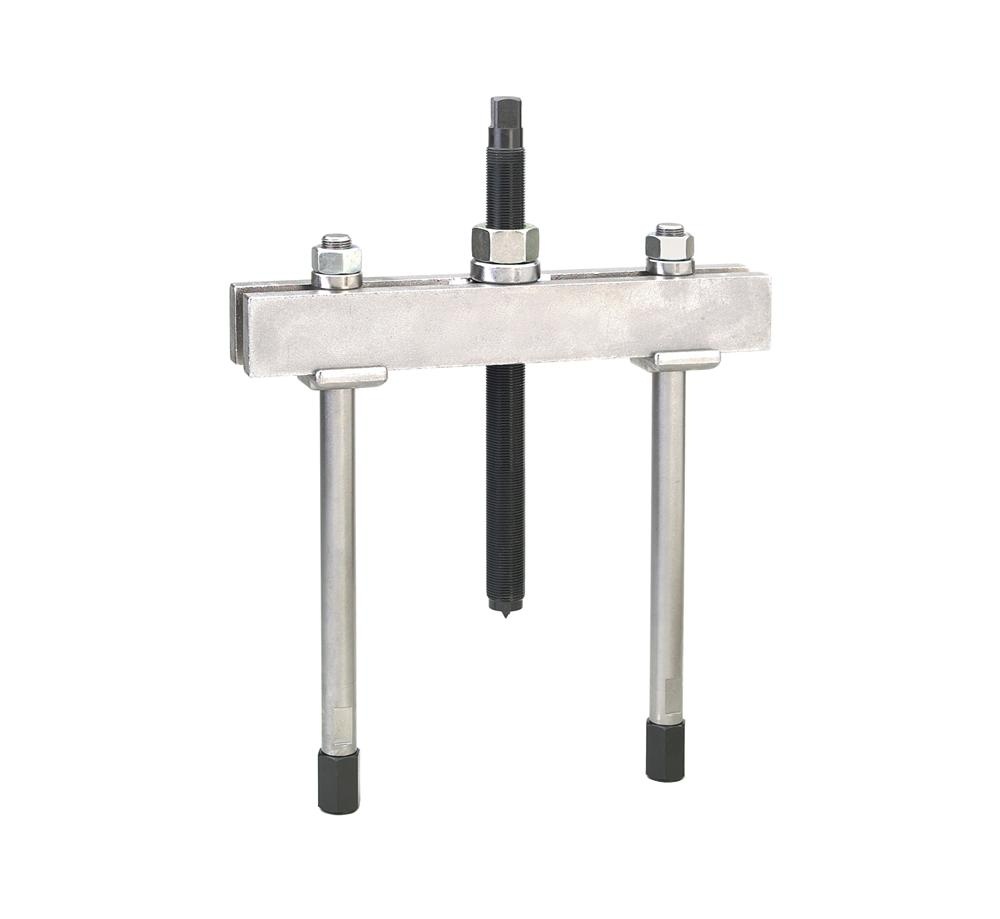

Power Team® Bi-Directional™ 938 MP Series Mechanical Push Puller, 17.5 ton Capacity, 11.13 in Max Reach, 3.13 to 11-3/4 in Max Spread

  • Manufacturer: Hydraulic Technologies
  • Brand Name: Power Team®
  • Part Number: SPX938
  • MPN: 938
  • UPC: 662536127455
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Each Push-Pullers® specified tonnage "capacity" is determined using its standard legs in tension. Using longer legs or a setup in which the legs are in compression, will reduce the "capacity". Always select the largest "capacity" puller and the shortest legs that will fit the job.

Power Team® Bi-Directional™ Mechanical Push Puller, Series: MP Series, 17.5 ton Capacity, 11.13 in Max Reach, 3.13 to 11-3/4 in Maximum Spread, 1-14 x 13-1/4 in Screw

Capacity      :      17.5 ton
Max Reach      :      11.13 in
Maximum Spread      :      3.13 to 11-3/4 in
Screw Size      :      1-14 x 13-1/4 in
Series      :      MP Series

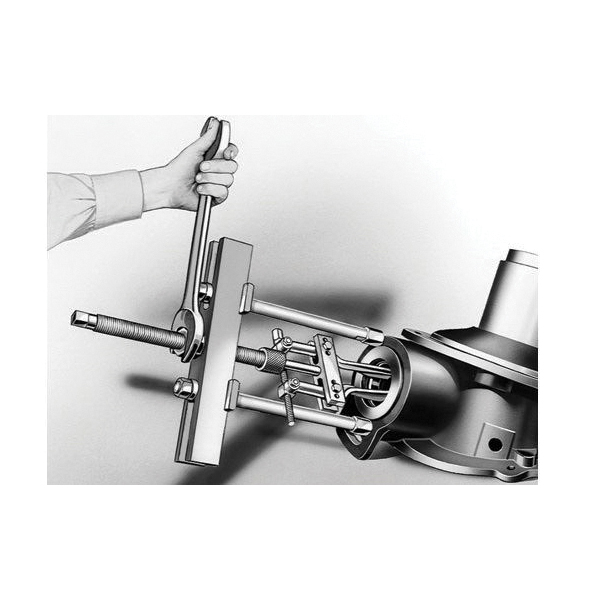

  • Can apply a pushing or pulling force, depending on how the puller is set up
  • Optional leg kits adapt your Bi-Directional Puller to extra long or extra short reach
  • A wide variety of threaded adapters, bearing pulling attachments and internal pulling attachments can be used in combination with our Bi-Directional Puller
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Power_Team_927_Catalog.pdf
