Power Team® 1043 SPX1043
  1. pin-int

Power Team® 1043 SPX1043

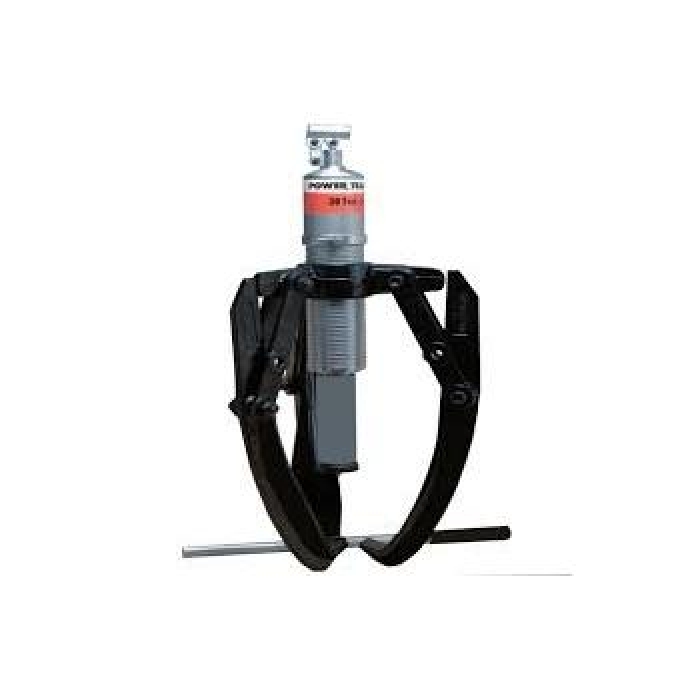

Power Team® 1043 MP Series Mechanical Jaw Puller, 17.5 ton Capacity, 2 Jaws, Long Jaw, 14-1/2 in Max Reach, 14 in Max Spread

  • Manufacturer: Hydraulic Technologies
  • Brand Name: Power Team®
  • Part Number: SPX1043
  • MPN: 1043
  • UPC: 662536008648
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Power Team® Mechanical Jaw Puller, Series: MP Series, 17.5 ton Capacity, 14-1/2 in Max Reach, 14 in Maximum Spread, 2 Jaws, Long Jaw, 1-9/32 in Jaw Width, 13/16 in Jaw Thickness, 1-14 x 13-1/2 in Screw, Alloy Steel

Capacity      :      17.5 ton
Jaw Thickness      :      13/16 in
Jaw Type      :      Long
Jaw Width      :      1-9/32 in
Material      :      Alloy Steel
Max Reach      :      14-1/2 in
Maximum Spread      :      14 in
Number of Jaws      :      2
Screw Size      :      1-14 x 13-1/2 in
Series      :      MP Series
  • Grip-O-Matic® feature on all pullers
  • The harder the pull, the tighter the grip for removing gears, bearings and countless other press fitted parts
  • 2, 3 and 2/3-way combination pullers make it easy to select a specific puller for a specific application
  • Forged from high quality steel, heat treated and subjected to rigorous tests which exceed rated puller capacity
  • Alloy steel heads are forged for maximum strength
  • Forcing screw threads are rolled, not cut, this process creates a smoother and stronger thread
  • Heat treated alloy steel cross bolts for maximum shear strength
  • Machined puller jaw toes produce larger and stronger pulling toes
