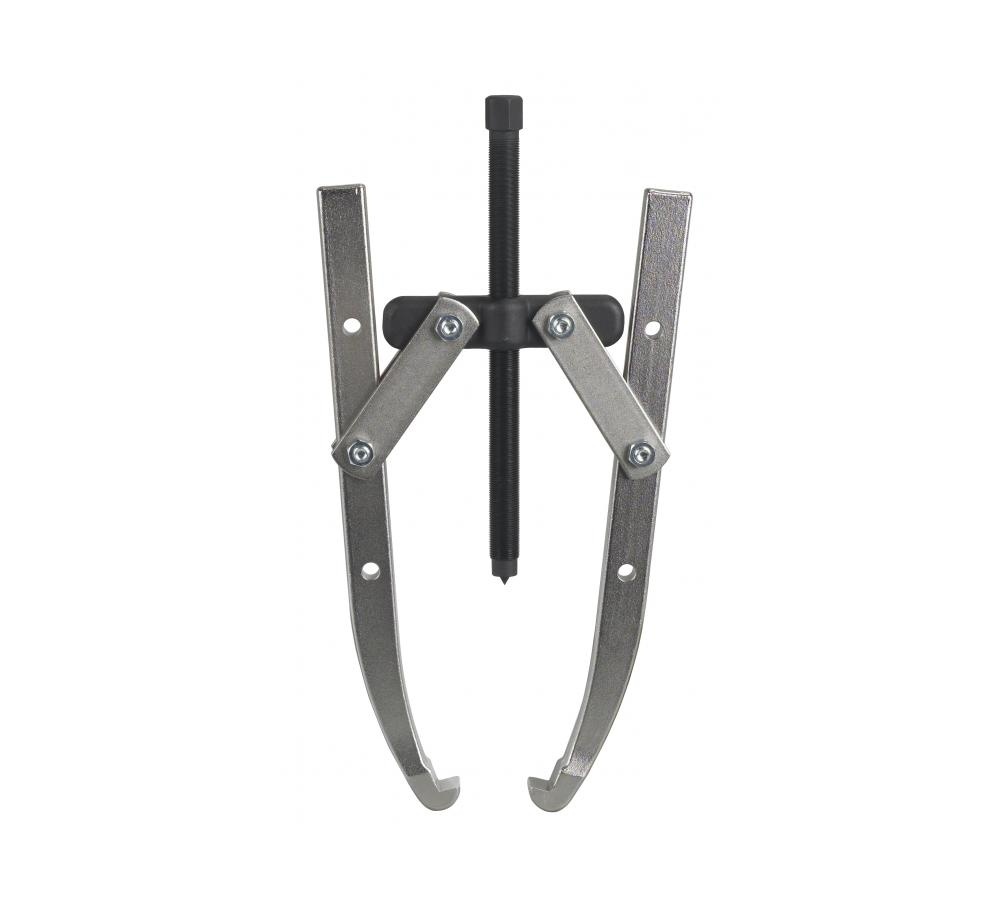

Power Team® 1040 SPX1040

Power Team® 1040 MP Series Manual Mechanical Puller, 13 ton Capacity, 2 Jaws, Long Jaw, 15-1/4 in Max Reach, 15-1/2 in Max Spread

  • Manufacturer: SPX FLOW
  • Brand Name: Power Team®
  • Part Number: SPX1040
  • MPN: 1040
  • UPC: 662536008457
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Power Team® Mechanical Puller, Manual, Series: MP Series, 13 ton Capacity, 15-1/4 in Max Reach, 15-1/2 in Maximum Spread, 2 Jaws, Long Jaw, 1 in Jaw Width, 9/16 in Jaw Thickness, 13/16-16 x 12 in Screw, Steel

Capacity      :      13 ton
Jaw Thickness      :      9/16 in
Jaw Type      :      Long
Jaw Width      :      1 in
Material      :      Steel
Max Reach      :      15-1/4 in
Maximum Spread      :      15-1/2 in
Number of Jaws      :      2
Screw Size      :      13/16-16 x 12 in
Series      :      MP Series
Type      :      Manual
  • Grip-O-Matic® feature on all pullers, the harder the pull, the tighter the grip for removing gears, bearings and countless other press fitted parts
  • Forged from high quality steel, heat treated and subjected to rigorous tests which exceed rated puller capacity
  • Alloy steel heads are forged for maximum strength
  • Heat treated alloy steel cross bolts for maximum shear strength
  • Machined puller jaw toes produce larger and stronger pulling toes
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Power_Team_1026_Specification_Sheet.pdf
