Power Team® 1024 SPX1024

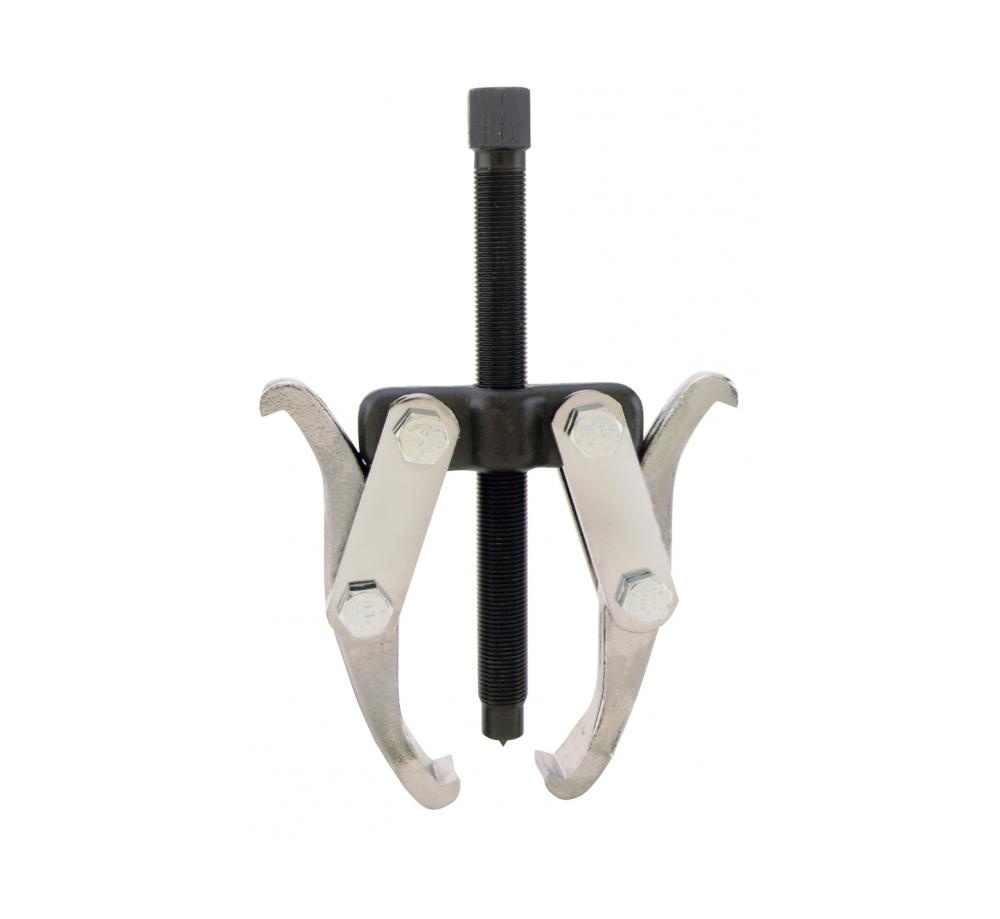

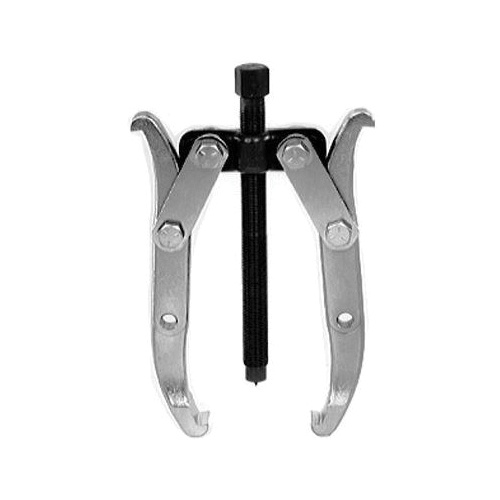

Power Team® 1024 MP Series Mechanical Jaw Puller, 5 ton Capacity, 2 Jaws, 3-1/4 in Max Reach, 6 in Max Spread
- Manufacturer: Hydraulic Technologies
- Brand Name: Power Team®
- Part Number: SPX1024
- MPN: 1024
- UPC: 662536007474
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Power Team® Mechanical Jaw Puller, Series: MP Series, 5 ton Capacity, 3-1/4 in Max Reach, 6 in Maximum Spread, 2 Jaws, 3/8 in Upper, 3/4 in Lower Jaw Width, 15/16 in Upper, 1/4 in Lower Jaw Thickness, 9/16-20 x 6-15/16 in Screw, Yes Reversible, Alloy Steel
| Capacity | : | 5 ton |
| Jaw Thickness | : | 15/16 in Upper, 1/4 in Lower |
| Jaw Width | : | 3/8 in Upper, 3/4 in Lower |
| Material | : | Alloy Steel |
| Max Reach | : | 3-1/4 in |
| Maximum Spread | : | 6 in |
| Number of Jaws | : | 2 |
| Reversible | : | Yes |
| Screw Size | : | 9/16-20 x 6-15/16 in |
| Series | : | MP Series |
- Grip-O-Matic® feature on all pullers
- The harder the pull, the tighter the grip for removing gears, bearings and countless other press fitted parts
- 2, 3 and 2/3-way combination pullers make it easy to select a specific puller for a specific application
- Forged from high quality steel, heat treated and subjected to rigorous tests which exceed rated puller capacity
- Alloy steel heads are forged for maximum strength
- Forcing screw threads are rolled, not cut, this process creates a smoother and stronger thread
- Heat treated alloy steel cross bolts for maximum shear strength
- Machined puller jaw toes produce larger and stronger pulling toes
